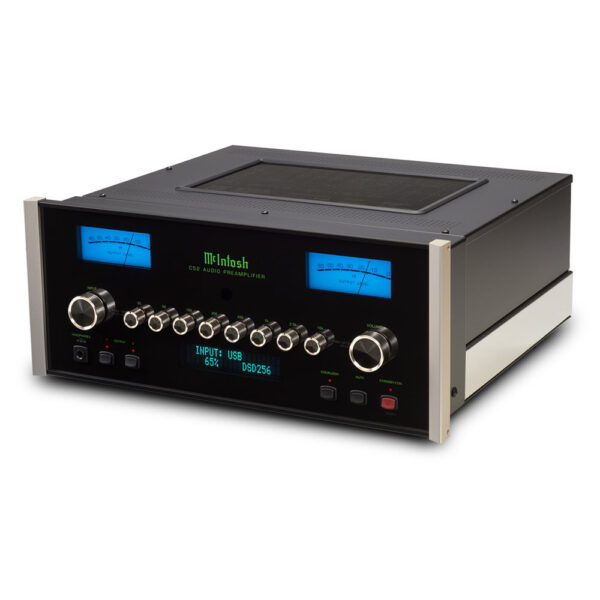

McIntosh C52 Stereo Preamplifier
C52
2-Channel Preamplifier
- Supports DSD64, DSD128 & DSD256 files
- 8 band analog equalizer; 16 inputs
2-Channel Preamplifier Supports DSD64, DSD128 & DSD256 files
8 band analog equalizer; 16 inputs
For connecting analog devices, it includes 3 balanced...
Read MoreC52
2-Channel Preamplifier
- Supports DSD64, DSD128 & DSD256 files
- 8 band analog equalizer; 16 inputs
2-Channel Preamplifier Supports DSD64, DSD128 & DSD256 files
8 band analog equalizer; 16 inputs
For connecting analog devices, it includes 3 balanced and 4 unbalanced fully assignable inputs plus 1 each of Moving Coil and Moving Magnet phono inputs for connecting a turntable and enjoying your vinyl collection. On the digital side, it has 3 optical, 2 coaxial and 1 USB input. The optical and coax inputs will decode digital music at up to 24-bit/192kHz for high resolution audio playback.
Exclusive at: Midland
$13,995.00
AUD Inc. GST
BEST PRICE GUARANTEE
SPEAK TO OUR TEAM • TEXT US
ELECTRONIC SPECIFICATIONS
TOTAL HARMONIC DISTORTION
0.003%
FREQUENCY RESPONSE
+0, -0.5dB from 20Hz to 20,000Hz
+0, -3dB from 10Hz to 100,000Hz
MAXIMUM VOLTS OUT (BALANCED / UNBALANCED)
16/8 V RMS
INPUT IMPEDANCE (BALANCED / UNBALANCED)
44K ohm, 22K ohm
PHONO VOLTAGE GAIN
Moving Magnet: 40dB
Moving Coil: 60dB
HIGH LEVEL VOLTAGE GAIN
To Main Output and Outputs 1 & 2: 15dB
To Fixed Output: 0dB
SIGNAL TO NOISE RATIO
100dB
DUAL MONO POWER SUPPLY
No
DUAL MONO, FULLY BALANCED
No
CONNECTIVITY
BALANCED INPUTS
3 Stereo
UNBALANCED INPUTS
4 Stereo + 2 Phono
PHONO MOVING COIL INPUT
1 (adjustable)
PHONO MOVING MAGNET INPUT
1 (adjustable)
DIGITAL COAXIAL INPUT
2
DIGITAL OPTICAL INPUT
3
DIGITAL MCT (DIN) INPUT
1
DIGITAL USB INPUT
1 (accepts PCM signals up to 32-bit/384kHz; supports DSD64, DSD128 and DSD256 plus DXD 352.8kHz and DXD 384kHz)
DIGITAL AES/EBU INPUT
0
BALANCED FIXED OUTPUTS
0
BALANCED VARIABLE OUTPUTS
3 Stereo
UNBALANCED FIXED OUTPUTS
1 Stereo
UNBALANCED VARIABLE OUTPUTS
3 Stereo
HEADPHONE OUTPUT
1/4″ High Drive with Headphone Crossfeed Director (HXD®)
RECORD PROCESSOR LOOP
No
INPUT LEVEL MATCH
Yes, +/- 6dB
HOME THEATER PASS THROUGH
Yes
CONTROL
TONE CONTROLS
8 band
TONE BYPASS AND INPUT ASSIGN
Yes
RS232 CONTROL INPUT
Yes
POWER CONTROL OUTPUT
1 Main, 4 Trigger
REAR PANEL DATA PORTS
6
REAR PANEL IR SENSOR INPUT
Yes
GENERAL SPECIFICATIONS
MULTI-CHASSIS OR SINGLE
Single, two layer
OUTPUT METERS
Yes
TUBE OR SOLID STATE
Solid State
ON, POWER CONSUMPTION
30 Watts
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17.5″ (44.45cm) x 7.6″ (19.37cm) x 18″ (45.72cm)
WEIGHT
27.5 lbs (12.5 kg)
SHIPPING WEIGHT
43 lbs (19.5 kg)
