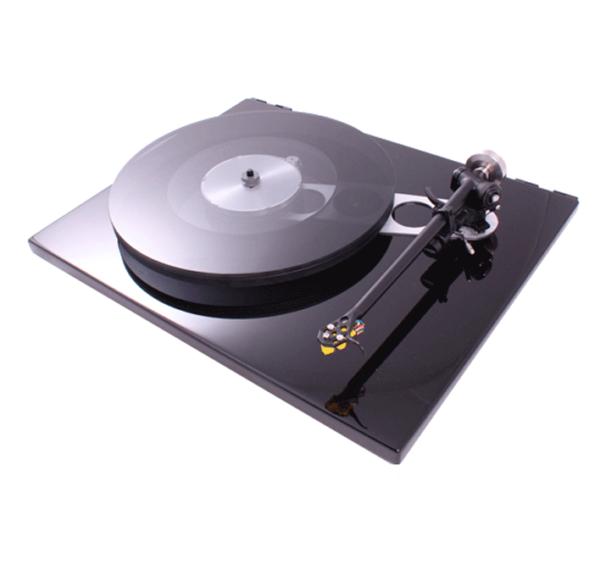

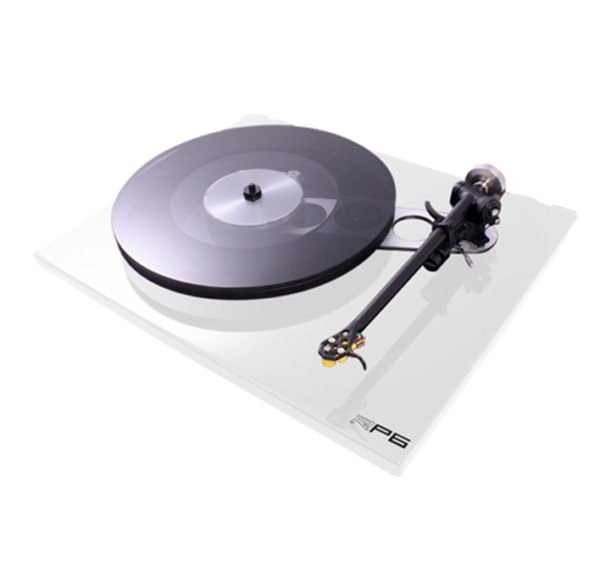

Rega RP6 Turntable + EXACT CARTRIDGE

RB303 Tonearm

Designed using the latest 3D CAD technology, the new RB303 is the culmination of more than 30 years of tonearm design experience. Due to advances in technology, we have been able to fine tune the iconic RB300 tonearm design. Featuring a brand new tube which has increased rigidity to the bearing housing, arm carrier and headshell coupled with intelligent redistribution of mass, ensure this arm will exhibit fewer points of possible resonance. Extreme stability with almost friction free movement from the high precision bearing assemblies guarantees to gather more information from your vinyl than ever before.

TTPSU power supply

The compact TT-PSU uses a high stability, crystal locked, low distortion sine wave generator. This, along with an efficient drive amplifier fed from a stabilised DC power supply, generates a 24v AC balanced signal of less than 0.05% distortion, which is completely un-affected by any changes in the mains/line voltage and conditions. This then drives the improved Rega anti-vibration circuit built into the Rega RP6 motor PCB.

24v Low noise motor

The motor is a high specification, 24v twin phase synchronous unit which has the anti-vibration circuit hand tuned to each motor and is controlled by Rega’s unique and innovative TTPSU power supply. The motor drives the CNC machined pulley and sub platter/hub-bearing assembly via the belt drive.

DB Technology (Double Brace Technology)

‘Mass absorbs energy – lost energy equals lost music’!
Rega has pioneered the use of lightweight rigid plinths. Clever use of lightweight particulate core with a highly rigid phenolic resin skin became the foundations of the high level of performance achieved by the now iconic Planar turntable range.

The latest generation of Rega turntables takes this design philosophy to the next level. A super lightweight plinth combined with a phenolic resin double brace mounted specifically where the increased rigidity is required (between the tonearm mounting and the main hub bearing) forms a structurally sound ‘stressed beam’ assembly. This rigid plinth design prevents energy absorption and unwanted resonances which will add unnatural distortions to the music.

Equally, heavier mass can transfer more unwanted energy such as motor or bearing noise directly into the rotating record. The use of braces instead of the complete skin allows double thickness phenolic resin in these key areas, while providing further weight reduction to the plinth which directly addresses the issue of mass absorption and unwanted energy transmission.

16mm Glass flywheel platter and platter adaptor

The RP6 features an innovative two piece platter design constructed from float glass. Manufactured using a complex and labour intensive invisible UV curing bond technique the secondary ring platter is permanently bonded to the underside of the main platter.

The extra ring adds mass to the outer circumference, which increases the natural flywheel effect of the platter, improving speed stability, accuracy and consistency. The aluminium top hub adaptor is manufactured to the highest tolerance and uses a six point mounting system to ensure the platter and vinyl is presented as flat as possible to the stylus.
