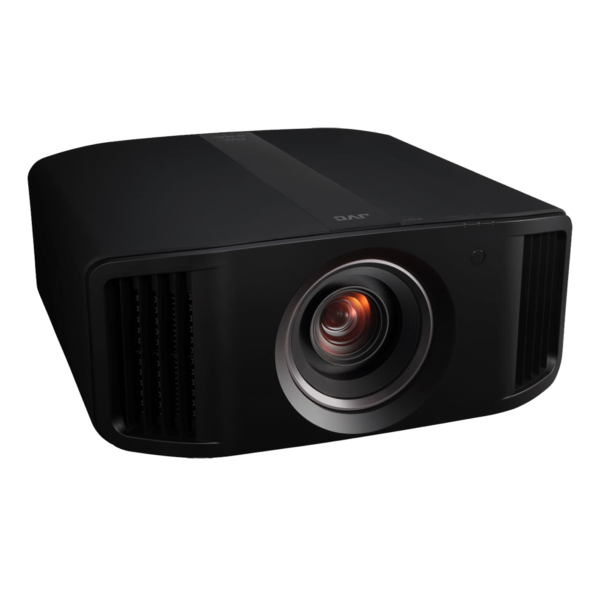

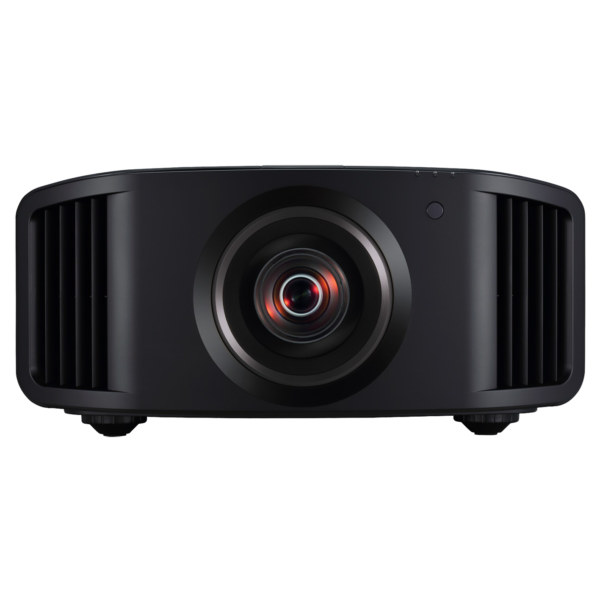

World’s first home projector capable of inputting 8K60p/4K120p signals
These projectors adopt LSI’s developed with the latest technology to process the vast amount of 8K input data, and an up converter to bring any source up to high definition 8K resolution. As a result, more beautiful and realistic video images full of contrast and reality can be enjoyed regardless of the source, from video streaming to 4K UHD-BD videos.
World first projector to support high-resolution 8K signal input: 8K60p/4K120p
Light source: BLU-Escent laser
Display resolution: 8192 x 4320 (with 8K/e-shift)
Input connectors: HDMI x 2 (48 Gbps/HDCP 2.3)

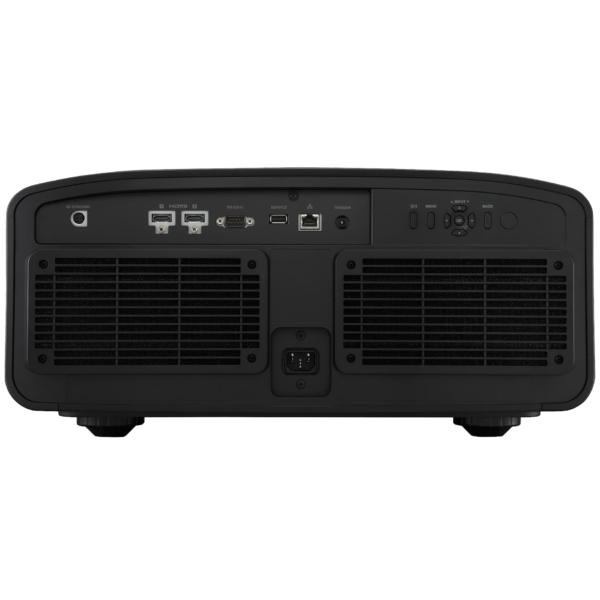

Output and control connectors: RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini-DIN 3pin)
3D formats: Frame Packing, Side-by-Side (Half), and Top & Bottom
JVC proprietary 8K/e-shift technology with 2-direction shift
0.69-inch 4K D-ILA (4096 x 2160) device x 3
17-element, 15-group all-glass 65 mm diameter high-quality lens
Ultra-High Contrast Optics with BLU-Escent laser light source contributes for optical brightness of 2,200 lumens and longevity of 20,000 hours
Multiple Pixel Control image processor accurately reproduces images closer to the original
Infinity:1 Dynamic Contrast Ratio; 40,000:1 Native Contrast Ratio
Wide Colour Gamut (DCI coverage)
Compatible with the two dynamic tone mappings of HDR10+ content and Frame Adapt HDR with Theatre Optimiser*; together, the projector expresses HDR/HDR10+ content at optimum brightness and darkness in each scene as the creator intended.
The projector automatically reproduces HDR10+ content based on the metadata of the producer’s intentions for each scene.
Frame Adapt HDR with Theatre Optimiser performs tone mapping according to the input signal of the content, as well as the installation environment and/or usage conditions of the projector.
Installation Mode with 10 Memories centrally manage nine settings related to installation to enjoy video best suited for each environment
Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Setting, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be
Compensation accuracy of Clear Motion Drive improved in the periphery of objects. Added with Motion Enhance technology, the projector can reproduce much smoother moving 4K images (function disabled when inputting 4K120p signals).
Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
Colour Management System with 6-axis Matrix
Auto-Calibration Function using an optical sensor** is capable of optimising essential elements in the image, including colour balance, gamma characteristics, colour space and colour tracking
ISF C3 (Certified Calibration Controls) mode*** to reproduce excellent picture quality optimised for specific environments.
Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter
HDR10+ Support allows a choice for two dynamic tone mappings
When it comes to reproducing the rich video information of HDR content including the extended brightness range, BT.2020 wide colour gamut and 10-bit gradation, rely on one of the new D-ILA projectors. New models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the latest HDR10+ signal format with dynamic metadata compatibility.
JVC projectors are compatible with the two dynamic tone mappings of HDR10+ and Frame Adapt HDR. HDR10+ contains the metadata of the producer’s intentions for each scene, Frame Adapt HDR instantly analyses the peak brightness in HDR10 content using an original algorithm. Ensuring you can watch any HDR content in optimal picture quality.
Reliability-proved BLU-Escent Laser Diode for exceptional brightness and longevity
The light source for these projectors is the latest blue laser diode BLU-Escent, which is featured in JVC projectors. BLU-Escent technology has been adopted for home theatre projectors to achieve exceptional brightness and longevity of 20,000 hours*. Laser diode allows dynamic control of brightness to reproduce images that are closer to human perception. Combining the latest BLU-Escent package with the D-ILA device achieves detailed, smooth, powerful video expression.
