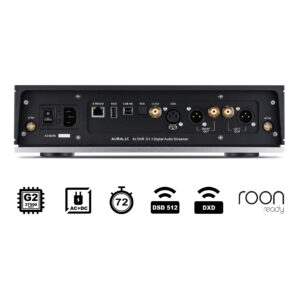

Auralic Altair G1.1 Streaming DAC Preamplifier

Specifications

Benchmark
Frequency Response: 20 – 20KHz, +/- 0.1dB*
THD+N: < 0.0002% (XLR); < 0.0003% (RCA), 20Hz-20KHz at 0dBFS
Dynamic Range: 124dB, 20Hz-20KHz, A-weighted

Streaming File Format
Lossless: AIFF, ALAC, APE, DIFF, DSF, FLAC, OGG, WAV and WV
Lossy: AAC, MP3 and WMA

Sampling Rate
PCM: 44.1KHz to 384KHz in 32Bit***
DSD: DSD64(2.8224MHz), DSD128(5.6448MHz), DSD256(11.2896MHz), DSD512(22.57892MHz)****

Control Software
AURALiC Lightning DS for iOS
AURALiC Lightning DS for web browser (device setting only)
OpenHome compatible control software (BubbleUPnP, Kazoo)
Roon (Roon Core required separately)

Audio Inputs
Digital Inputs: AES/EBU, Coaxial, Toslink, USB Audio
Streaming Inputs: Network shared folder, USB Storage, USB CD Drive, Optional Internal Storage, UPnP/DLNA Media Server, Amazon Music Unlimited, HighResAudio, KKBOX, Qobuz Sublime+, NetEase Music, TIDAL Connect, Spotify Connect, Internet Radio, AirPlay 2, RoonReady, Bluetooth

Audio Outputs
Balanced: XLR (4.4Vrms at 0dBFS, output impedance 10ohm)
Unbalanced: RCA (2.1Vrms at 0dBFS, output impedance 50ohm)
Headphone: 6.35mm Headphone Jack (output impedance 2.5ohm)

Network
Wired: Gigabit Ethernet
Wireless: 802.11b/g/n/ac Tri-Band WiFi

Power Consumption
Playback: 50W at max.

Dimensions – W x D x H
13.4 x 12.6 x 3.2 in. (34cm x 32cm x 8cm)

Weight
16.3 lbs (7.4kg)

Product Finishing
Anodized aluminum case in matte black

Contents
AURALiC ALTAIR G1.1
2*External WiFi antenna (2pcs)
Power cord
USB Cable
User’s guide
