AC Infinity Cloudplate T9 Pro Features
- An intelligent fan system designed for cooling audio video, DJ, server, network, and IT equipment racks.
- Protects rack-mount equipment from overheating, performance issues, and shortened lifespans.
- Programmable thermostat controller with automated speed control, alarm warnings, and backup memory.
- Premium anodized aluminum construction with CNC-machined detailing for a professional appearance.
- Size: 3U Rack Space | Design: Exhaust or Intake | Airflow: 60 to 300 CFM | Noise: 12 to 38 dBA

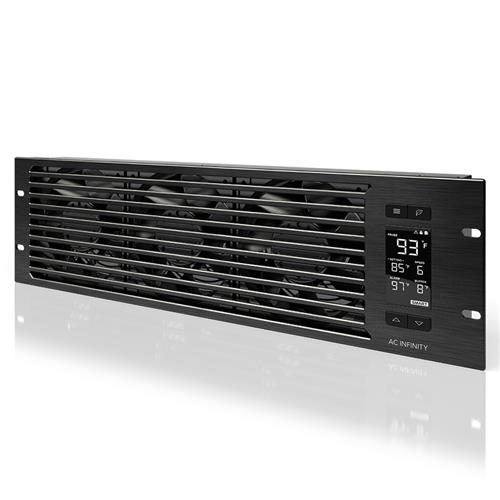

An intelligent cooling fan system designed to be mounted onto a wide range of 19-inch racks requiring quiet or high airflow cooling. Maintaining an optimal temperature for rack-mount equipment prevents overheating, ensures constant performance, and extends their lifespan. The LCD digital controller features a programmable thermostat with automated speed control, alarm warnings, status alerts, and backup memory. The system is housed in a solid aluminum construction that takes up three rack units of space (3U). Each aluminum frame is anodized with a light-brush finish, then the corners CNC-machined and edges chamfered for a high-end professional appearance. This model holds three custom-engineered dual-ball bearing fans rated at 67,000 hours, and certified by CE, UL, TUV, and RoHS. The fans are set to exhaust out heated air and should be positioned near the top of the rack; an intake version of this model is available, sold separately. This complete kit includes the 3U fan unit, corded 6-ft thermal probe, user’s manual, rack mount screws, cage nuts, and corded 6-ft power supply.
Programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan’s speed to react to varying temperatures. Additional features include alarm alerts, fan failure triggers, power savings setting, display lock, and backup memory. Six fan speeds are available with three screen brightness settings. Behind the unit is an expansion port that can control another CLOUDPLATE unit or an AC Infinity rack roof dual-fan kit.
Performance and Applications
This 3U rack cooling system features programmable fan speed control, enabling it to work for a wide range of rack mount applications. With a noise level that can reach 12 dBA, the fan system can be used for environments where low or minimal noise is required such as home theater, studio, DJ, and audio video racks. A max airflow rating of 300 CFM will provide sufficient cooling to server, network, IT and equipment racks requiring high airflow.AC Infinity Cloudplate T9 Pro quiet rack cooling system, 3U, exhaust

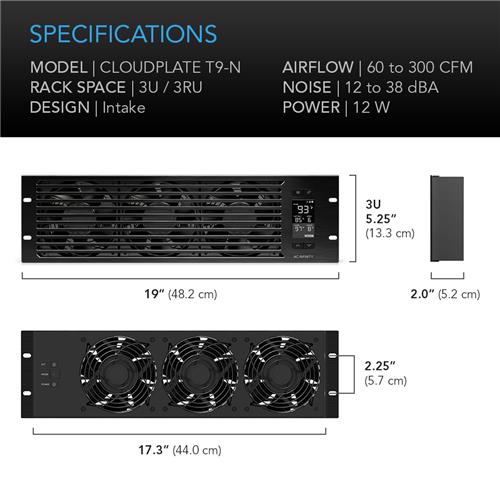

Product and Mounting Dimensions
- 19.0 x 5.25 x 2.0 in. (48.3 x 13.3 x 5.2 cm)
Rack Mount Size
- Three Rack Units (3U)
Screw Hole Size
- Ø .24 x 0.35 in. (Ø 6.1 x 9.0 mm) Obround
Hole to Hole Distance
- 18.2 x 2.25 in. (46.4 x 5.7 cm)
- 2.25 x 1.25 in. (4.7 x 3.2 cm)
- 72 in. (6 feet)
- 72 in. (6 feet)
Product Performance and Technical Specs
- Exhaust or Intake
- 60 to 300 CFM
- 12 to 38 dBA
- 2.56 mm-H2O
- 12V DC
- 12 W
- 1 A
Wall Adapter Input
- 100 to 240V AC
- 35 to 85% RH
- 14 to 230°F
- Dual Ball
L10 Life Expectency
- 67,000 Hours
