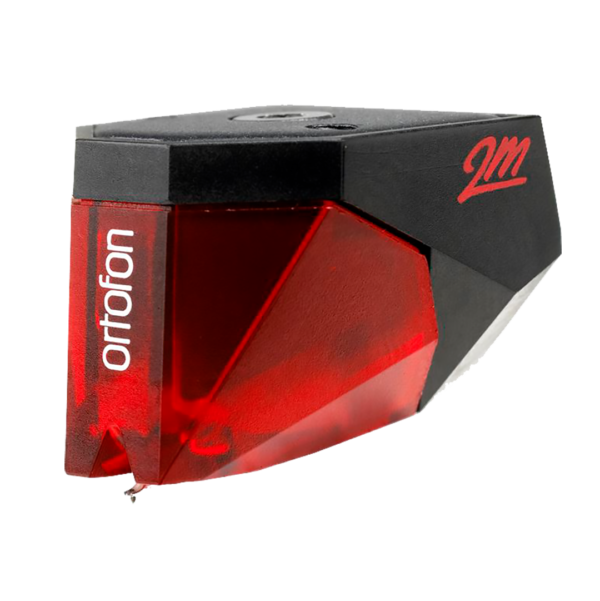

Ortofon 2M Red Moving Magnet Cartridge

The 2M Series of cartridges is designed for precise and accurate retrieval of information in the record groove, playing the record sound as accurate as possible, without colouring the sound.

The 2M Series of cartridges is designed for precise and accurate retrieval of information in the record groove, playing the record sound as accurate as possible, without colouring the sound.

$189.00

AUD Inc. GST

In Stock
QTY

Seen it cheaper?

Request Price Match

Price Match

  • Thanks for your interest in this product.

    Due to distribution agreements it is not possible for this product to be ordered directly online. We apologise for any inconvenience but we can still help with an easy purchase. Simply Fill in the below form and we'll contact you letting you know how to place an order.

Ortofon have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.

Technical data 2M Red / 2M Red Verso
Output voltage at 1000 Hz, 5cm/sec. 5,5 mV
Channel balance at 1 kHz  1,5 dB
Channel separation at 1 kHz 22 dB
Channel separation at 15 kHz 15 dB
Frequency range at – 3dB 20-22.000 Hz
Frequency response 20-20.000 Hz + 3 / – 1 dB
Tracking ability at 315Hz at recommended tracking force 70 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1,6-2,0g (16-20 mN)
Tracking force, recommended 1,8 g (18 mN)
Tracking angle 20°
Internal impedance, DC resistance 1,3 kOhm
Internal inductance 700 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/Red
Cartridge weight 7,2 g
Replacement stylus unit 2M Red (interchangeable with 2M Blue)
Stylus protection guard 2M Red
