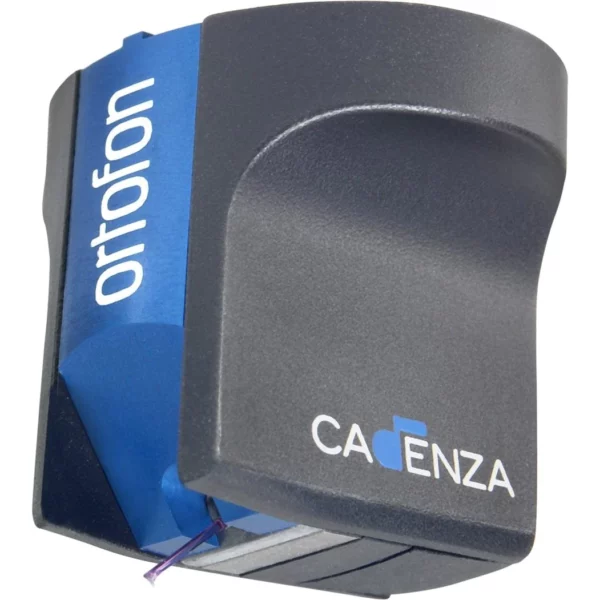

Ortofon Cadenza Blue Moving Coil Cartridge
The Cadenza Blue model is using a Nude FG 70 stylus with a very thin ruby cantilever. The coils are made from 6NX (99.9999%) pure silver wire. An improved winding process on the armature allows...
Read MoreThe Cadenza Blue model is using a Nude FG 70 stylus with a very thin ruby cantilever. The coils are made from 6NX (99.9999%) pure silver wire. An improved winding process on the armature allows a better channel balance.
$2,699.00
AUD Inc. GST
BEST PRICE GUARANTEE
SPEAK TO OUR TEAM • TEXT US
Free Shipping
Australia wide on orders over $100
or 6 payments of $449.83 with zip
Own it now, pay later Learn More
The Cadenza Blue model is using a Nude FG 70 stylus with a very thin ruby cantilever. The coils are made from 6NX (99.9999%) pure silver wire. An improved winding process on the armature allows a better channel balance.
Technical Data
Output voltage at 1 kHz 5 cm/sec | 0,5 mV
Channel balance | < 1,2 dB
Channel separation at 1 kHz | > 23 dB
Channel separation at 15 kHz | > 15 dB
Frequency range at -3 dB | 20 Hz – 50 kHz
Frequency response 20 Hz – 20 kHz | +2/-1
Tracking ability at 315 Hz at recommended tracking force *) | 80 μm
Compliance, dynamic, lateral | 12 μm/mN
Stylus type | Nude FG 70 on Ruby cantilever
Stylus tip radius | r/R 6/70
Tracking force range | 2,2-2,7 g (22-27 mN)
Tracking force recommended | 2,5 g (25 mN)
Tracking angle | 20º
Internal impedance, DC resistance | 5 Ohm
Recommended load impedance | 50-200 Ohm
Cartridge body material | Stainless steel Aluminium
Cartridge colour | Blue/Black
Cartridge weight | 10,7 g
