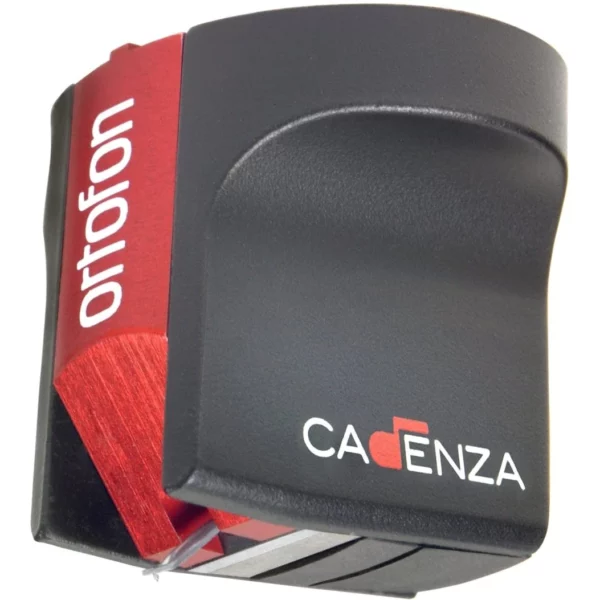

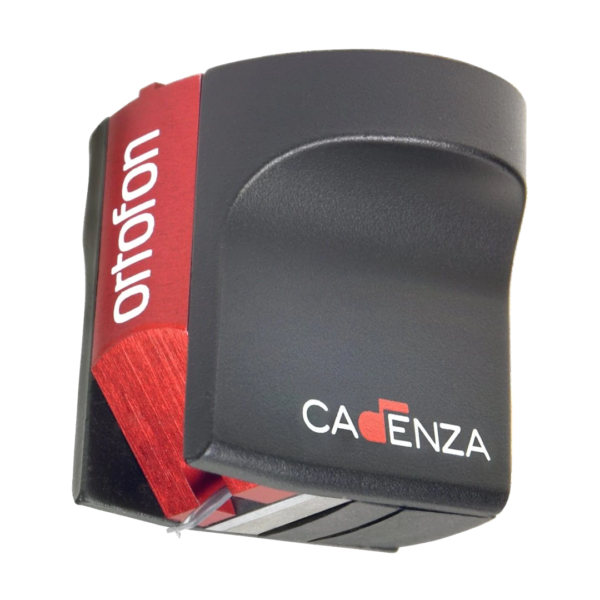

The Cadenza Red model is using a Nude Fine Line stylus with a cylindrical aluminium cantilever. The stylus tip radius is r/R 8/40 µm.
The coils are made from 6NX (99.9999%) pure silver wire. An improved winding process on the armature allows a better channel balance.
Technical data
Output voltage at 1 kHz 5 cm/sec | 0,45 mV
Channel balance | < 1,5 dB
Channel separation at 1 kHz | > 23 dB
Channel separation at 15 kHz | > 15 dB
Frequency range at -3 dB | 20 Hz – 50 kHz
Frequency response 20 Hz – 20 kHz | +3/-1
Tracking ability at 315 Hz at recommended tracking force *) | 80 μm
Compliance, dynamic, lateral | 12 μm/mN
Stylus type | Nude Fine Line on Alu cantilever
Stylus tip radius | r/R 8/40
Tracking force range | 2,2-2,7 g (22-27 mN)
Tracking force recommended | 2,5 g (25 mN)
Tracking angle | 20º
Internal impedance, DC resistance | 5 Ohm
Recommended load impedance | 50-500 Ohm
Cartridge body material | Stainless steel Aluminium
Cartridge colour | Red/Black
Cartridge weight | 10,7 g
