Eversolo DAC-Z10 Audio Decoder Digital to Analog Converter

The DAC-Z10 Audio Decoder is a high end digital-to-analogue converter and pre-amp featuring premium components and Eversolo’s highly regarded attention to detail and build quality.

Key Features:

• Brand New Flagship DAC / Audio Decoder
• Dual DAC’s AKM AK4191EQ + AK4499EXEQ per channel
• Large 8.8″ Touchscreen Display
• Triple Linear power supplies
• Eversolo FIA™ (Fully Isolated Architecture)
• Eversolo Precision Core™
• Fully Balanced R2R Network
• FPGA Clock Reconstruction
• External 10 MHz & 25 MHz High-Precision Clock Support
• High-performance Fully Balanced Preamplifier with up to +10dB gain
• 8-Mode IIS Digital Audio Input configuration
• OCXO Temperature-Controlled Crystal Oscillator + Phase-Locked Loop Technology
• Isolated AES/EBU Input + Dual Coaxial, Optical Inputs
• HDMI eARC
• Dedicated 6.35 mm Headphone Amplifier with High, Medium, and Low gain settings
• Up to 15dB of Left/Right Balance Gain Adjustment
• Intuitive Signal Path Display
• 6 Customisable DAC Filter Options
• Solidly Built Aviation-grade Aluminium Chassis
• TRIGGER IN & OUT for Linked Control

Eversolo FIA™ (Fully Isolated Architecture)

Eversolo FIA™ (Fully Isolated Architecture)

The DAC-Z10 is built on Eversolo’s Fully Isolated Architecture (FIA™), which completely separates the digital and analogue domains to minimise interference and preserve signal purity. Three independent linear power supplies individually power the left channel, system, and right channel, allowing each to operate in an ultra-low-noise environment.

The DAC-Z10’s decoding architecture features two sets of AK4191 + AK4499 DACs for independent left and right channels, combined with a fully balanced analogue preamplifier that employs precise dual-channel R2R volume control. This configuration achieves superior DNR and lower THD+N, unlocking the full potential of the music.

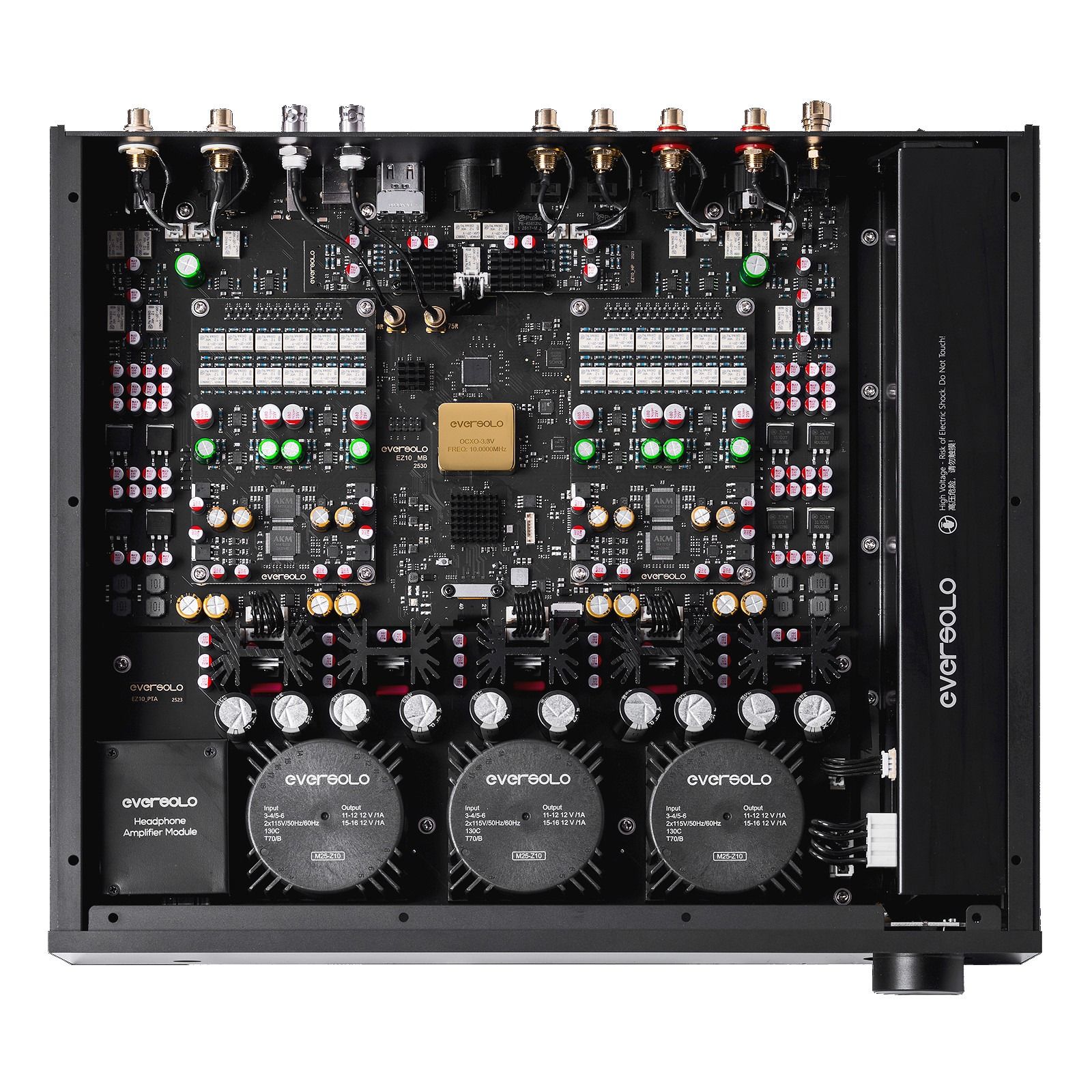

Three Independent Power Supplies

With three independent toroidal transformers for left channel, right channel, and system power, the DAC-Z10 maintains ultra-low noise down to 42μV. This design minimises interference, giving each channel its own clean, isolated voltage support for a stable and detailed sound.

Dual Decoding Modules

The DAC-Z10 features dual independent channels built on a fully balanced architecture based around dual independent AK4191 + AK4499 DAC modules for each of the left and right channels. Combined with AKM’s Velvet Sound™ technology, and native support for DSD512 & PCM 768kHz/32bit audio, it strikes the perfect balance between precision and tonal richness.

R2R Volume Control

The DAC-Z10 employs a precise R2R resistor array for precise volume control, preserving the original signal at every level. From quiet listening to full volume, every nuance remains intact, delivering clean, accurate, and faithful sound.

Eversolo Precision Core™

Accurate Clock System

The DAC-Z10 features Eversolo’s extremely accurate OCXO Temperature-Controlled Crystal Oscillator + Phase-Locked Loop Technology. Additionally, it also supports external 10 MHz & 25 MHz High-Precision Clock input & FPGA Clock Reconstruction.

OCXO Temperature-Controlled Crystal Oscillator + Phase-Locked Loop Technology

The DAC-Z10 integrates an OCXO temperature-controlled crystal oscillator + PLL (Phase-Locked Loop) technology to achieve precise clock reconstruction. Accurate timing is fundamental to high-resolution audio reproduction, and with the stability of the OCXO and the precision of PLL correction, the DAC-Z10 ensures that every note is delivered exactly as intended.

External Clock Support

Accurate timing is key to capturing every musical nuance. By supporting an external high-precision clock, the DAC-Z10 takes clock stability and accuracy to the next level.

Input Specifications
• 10MHz
• 25MHz

Input Impedance
• 50Ω
• 75Ω

Fully Balanced Preamplifier

The DAC-Z10 features a high-performance fully balanced preamplifier, supporting both XLR and RCA analogue inputs with up to +10dB gain.

Paired with a precision R2R analogue volume control network, it delivers ultra-low noise and distortion, significantly enhancing dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.

FPGA Redefined

The DAC-Z10 features a built-in FPGA that shapes IIS data and refines the clock. Every digital signal is thus optimized to its purest form before reaching the DAC – you can truly hear the difference.

Ultra-Low Distortion & Wide Dynamic Range

Multi-Core USB Audio Processor

The DAC-Z10 features a multi-core USB audio processor, offering higher processing speed and bandwidth to ensure lossless transmission of high-resolution audio data.

USB Audio In
• DSD512 Native
• PCM 768KHz/32Bit

Optical / Coaxial
• PCM 192KHz/24Bit
• DSD64 Dop

Grounding Post

The DAC-Z10’s grounding post channels noise away, eliminating even minor interference and preserving the purity of each note.

8-Mode IIS Digital Audio Input

Via IIS digital audio input, the DAC-Z10 offers 8 switchable modes and supports up to 768kHz/ 32Bit PCM and DSD512 Native. Its fully isolated hardware design separates signal and ground between devices, ensuring clean signals and enhanced audio clarity.

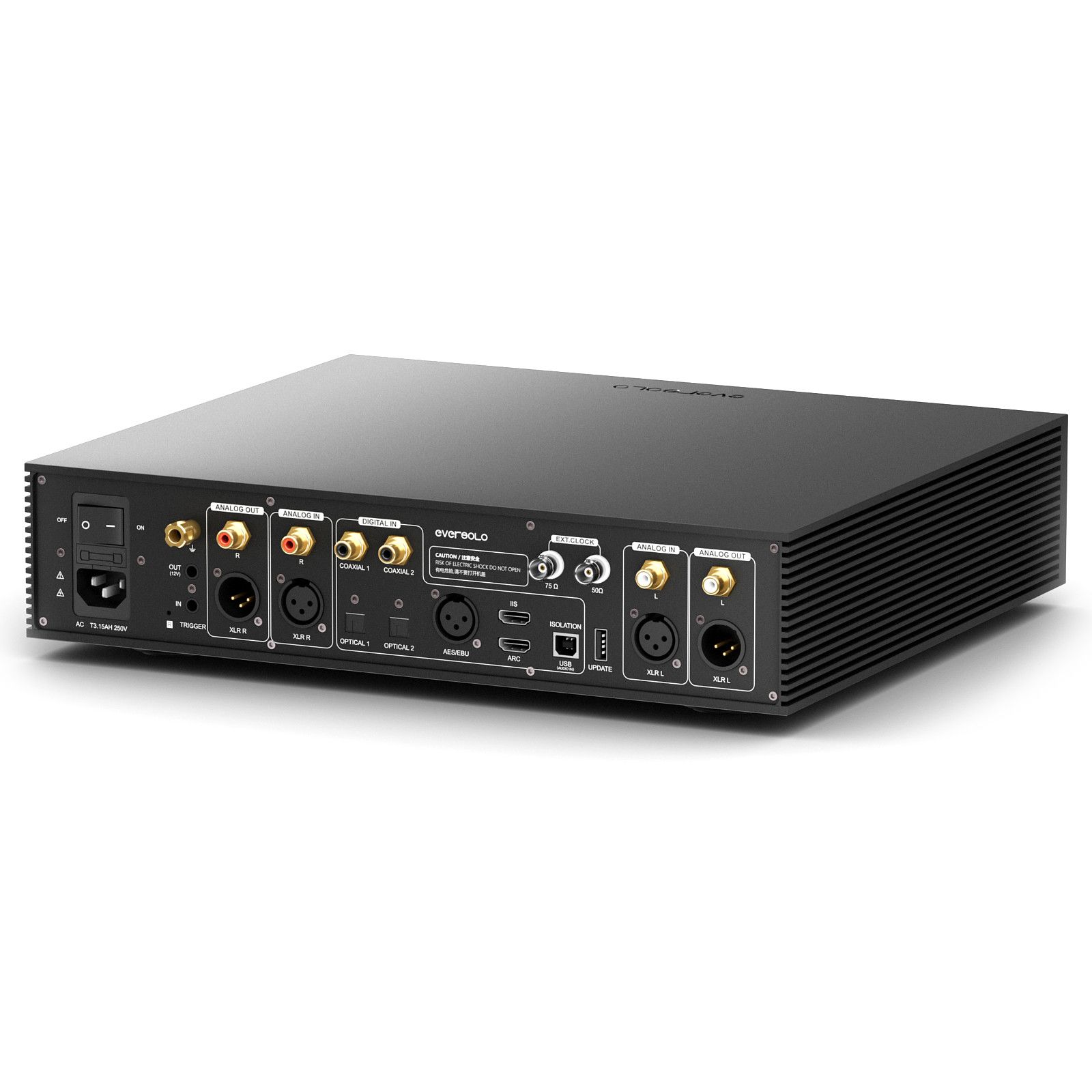

Dual Coaxial Inputs

The DAC-Z10 features dual isolated coaxial inputs, supporting up to 192kHz/24bit. This design effectively shields against external interference, preserving every detail with clarity and precision. Dual source input lets you switch devices effortlessly without any signal loss.

Isolated AES/EBU Input

To preserve signal purity, the DAC-Z10 features a dedicated isolated AES/EBU input, fully separating electrical noise between front-end and back-end devices. This isn’t just an engineering solution – it’s our commitment to pure sound.

Dual Optical Inputs

The DAC-Z10 supports dual optical inputs, offering greater flexibility and connectivity for your audio system. With dual optical inputs, the DAC-Z10 can connect to two audio devices simultaneously, providing a more versatile listening experience.

Pure USB Audio Input

USB is often the most convenient choice for digital audio, but electrical noise and ground loops can subtly compromise its purity. The DAC-Z10 introduces an isolated USB Audio input, transmitting only the clean data while blocking all electrical interference.

TRIGGER IN & OUT for Linked Control

Manually turning each component on and off can be tedious and may cause current surges. The DAC-Z10’s TRIGGER interfaces act as a command channel, enabling seamless linked control across your system.

HDMI ARC Integration

The DAC-Z10 is equipped with HDMI ARC, supporting both ARC and eARC modes for effortless integration into your home theatre system. It not only decodes high-fidelity music but also delivers cinematic sound with stunning clarity and realism.

6.35mm Headphone Amplifier Module

The DAC-Z10 has a dedicated 6.35 mm headphone amplifier module that auto-detects impedance and adjusts gain, delivering powerful, detailed sound. High, medium, and low gain settings let you tailor playback to different headphones and listening preferences.

High Gain Output
• 1 W (16 Ω)
• 1 W (32 Ω)
• 0.16 W (300 Ω)

High Quality Bluetooth Module

The DAC-Z10 features a built-in Qualcomm QCC5125 Bluetooth module. Whether streaming from your phone or connecting directly via tablet, it delivers a high-fidelity wireless listening experience.

The Balance of Simplicity and Strength

The DAC-Z10’s chassis is crafted from aviation-grade aluminium. Rigid yet lightweight, it blends precision engineering with refined texture. Sleek in design, yet full of presence.

Smooth Control Experience + Electromagnetic Shielding

The DAC-Z10 features an 8.8-inch IPS touchscreen with a clear and intuitive interface. Switching inputs, adjusting volume, and checking format information are all at your fingertips. The internal components are shielded from the screen to further eliminate potential noise sources.

Volume Control Knob

To let every user tailor the DAC-Z10 to their personal taste and space aesthetics, the DAC-Z10’s volume knob features a ring of LED lights which can be customised from multiple colour options.

Sonic & Visual Enjoyment

The DAC-Z10 offers a variety of vintage VU meters and dynamic spectrum displays, allowing you to enjoy the visual beauty of sound while listening to music. With the DAC-Z10, every performance comes alive.

Left/Right Balance Gain

The DAC-Z10 offers up to 15dB of left/right balance gain adjustment, allowing precise tuning of each channel according to your personal listening preference. With the DAC-Z10, every note reaches your ears accurately.

Intuitive Signal Path Display

On this interface, the path of sound is illuminated. Input sources, master clock, filter characteristics, XLR/RCA outputs, and the heartbeat of the R2R left/right channel volume control – all unfold clearly, revealing the full story of your music.

Customise Your Sound

The DAC-Z10 offers 6 DAC filter characteristics, letting you switch freely to suit different musical atmospheres. With its versatile filter curves, the DAC-Z10 shapes the sound to match your personal listening taste.

XLR Polarity Modes

To ensure faithful sound reproduction, the DAC-Z10 offers two XLR polarity modes, allowing precise adjustment according to different system requirements. This guarantees stable and accurate signal transmission.

Music at Your Fingertips

The DAC-Z10 supports both mobile App control and touchscreen control. Manage your system remotely from your smartphone, or interact directly via the large touchscreen. No matter how you choose, your music is always within reach.
