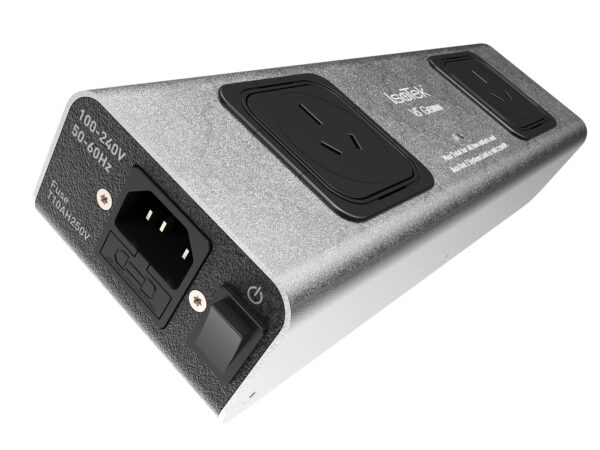

IsoTek V5 Gemini 2-way Power Cleaning and Distribution Board

This product doesn’t include a cable. IsoTek EVO3 Initium Cable is the minimum recommended cable!

Small Size, Big Performance

The V5 Gemini is a compact power cleaning and distribution bar measuring just 270mm long, 80mm wide, and 50mm high. It provides two individually isolated power outlets, each referenced back to a central internal circuit board. Unlike many power bars that connect outlets in a series, the V5 Gemini avoids cross-contamination of noise between sockets. By preventing Differential Mode Noise from travelling between connected components, it offers a superior electrical architecture and cleaner performance.

Advanced Delta Filter Topology

Inside, the V5 Gemini uses IsoTek’s unique delta filter network — engineered to perform ten times better than the recommended standard. It delivers over 20dB of noise reduction at 1kHz and improves to 42dB at 10kHz, a region where radio frequency interference typically affects audio performance and power supply rejection. The result is class-leading filtration of both Common Mode and Differential Mode noise. The printed circuit board is silver-plated and built with twice the industry-standard copper loading for improved conductivity and reduced resistance.

Independent, Clean Power Delivery

Each of the two outlets receives clean power from its own isolated path, preventing noise created by one device from impacting another. IsoTek’s KERP (Kirchhoff’s Equal Resistance Path) ensures that both outlets receive identical resistance and equal power delivery. Internal wiring is designed to the highest specification, using 6n oxygen-free copper conductors with silver-plating and an aerospace-grade FEP dielectric for minimal electrical resistance and optimum signal integrity. In the V5 model, instantaneous protection has been increased to 45,000A, safeguarding both the unit and your connected equipment through IsoTek’s sequential and repeatable protection system.

System Link & Installation Flexibility

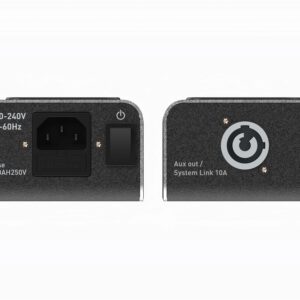

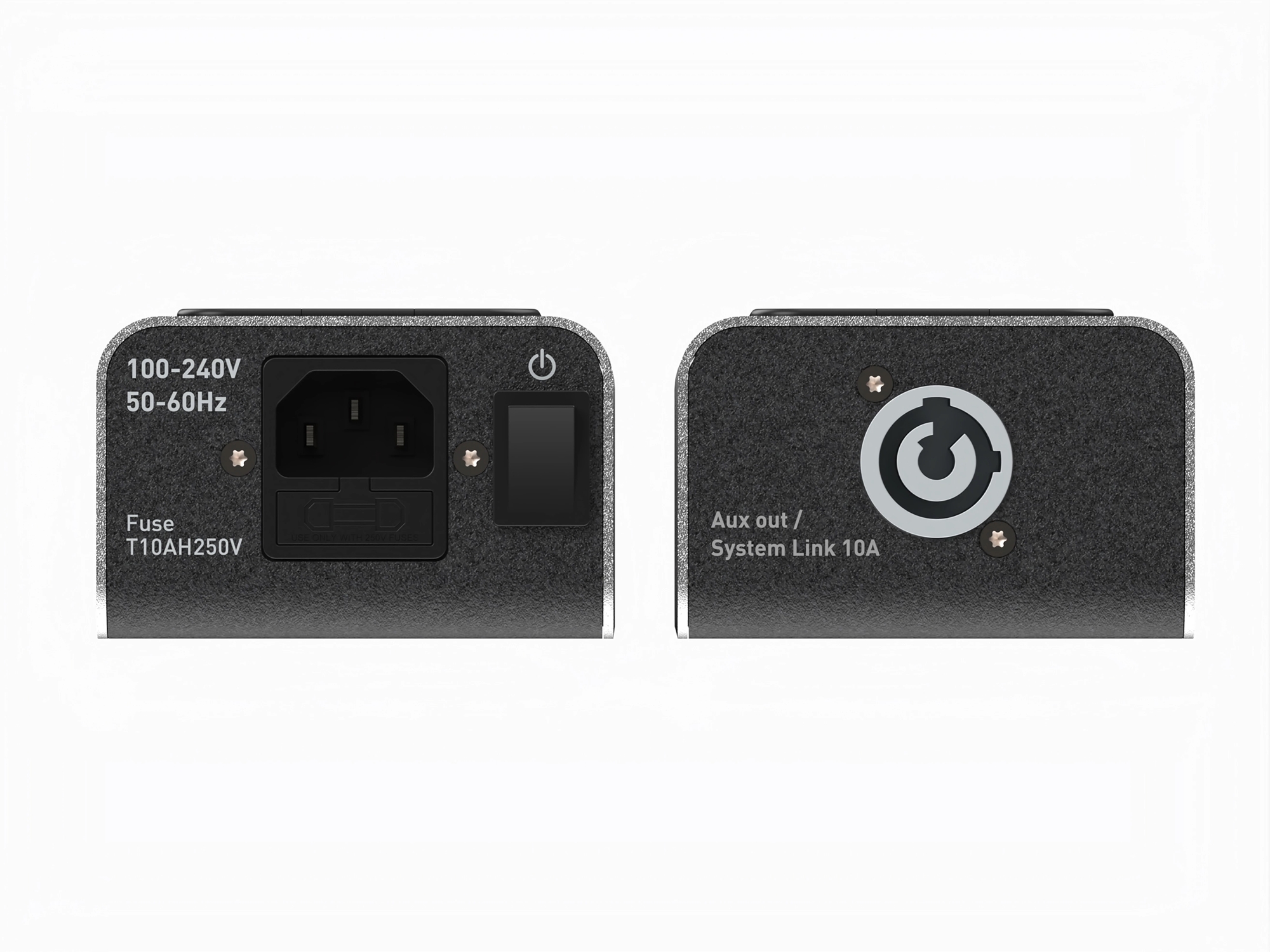

The V5 Gemini includes a System Link outlet, allowing multiple IsoTek units to be connected while maintaining a star-earth grounding reference. A wall-mounting bracket system is also provided, making it easy to discreetly install the unit behind an equipment rack if desired.

Suitable for all audio or AV systems

RFI reduction 35dB

Central clean power network removes Common and Differential Mode mains noise

2 independent outlets stop Differential Mode cross contamination

45,000A instantaneous protection

Fully star-earthed network

Multi-strand 6n OFC silver-plated internal wiring with FEP dielectric

System Link outlet for extending the outlets and maintaining a starred earth reference

Use with standard IEC C13 power cable
