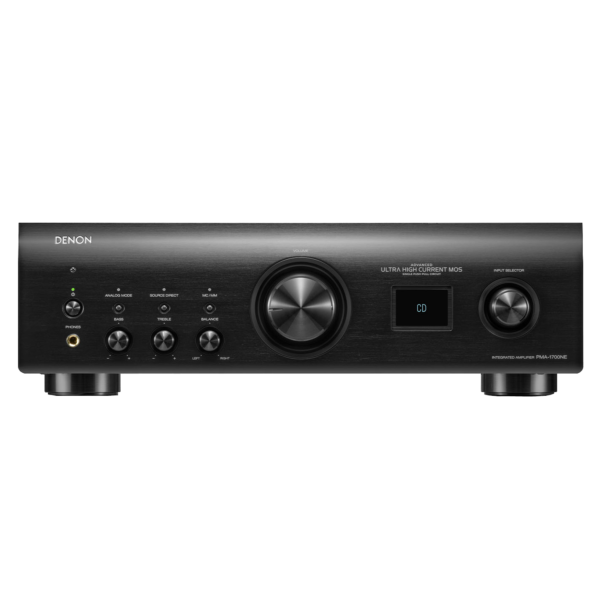

Denon PMA-1700NE Integrated Amplifier with 140W Power per Channel
With ultra-high current single push-pull circuit power and Advanced AL32 Processing, the Denon PMA-1700NE retains the detail of the original recording. Listen to your favourite music via the two digital inputs, a rear USB-B input,...
Read More
With ultra-high current single push-pull circuit power and Advanced AL32 Processing, the Denon PMA-1700NE retains the detail of the original recording. Listen to your favourite music via the two digital inputs, a rear USB-B input, MM or MC phono equaliser or go analog with the included DAC mode.
- High-power 140W integrated amplifier
- Advanced AL32 Processing Plus
- USB-DAC supporting 11.2- MHz DSD and 384-kHz/32-bit PCM
- MM and MC phono equaliser
- High-precision electrical controls
- Optical and coaxial digital inputs
- External pre-amp input terminals
- Six-block chassis configuration and direct mechanical ground construction
- Build integrity with thoughtfully selected components
$2,999.00
AUD Inc. GST
BEST PRICE GUARANTEE
SPEAK TO OUR TEAM • TEXT US
Free Shipping
Australia wide on orders over $100
or 6 payments of $499.83 - $499.83 with zip
Own it now, pay later Learn More
HIGH-POWER 140W INTEGRATED AMPLIFIER
Drive your loudspeakers with 140 Watts of power per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.
ADVANCED AL32 PROCESSING PLUS
Advanced AL32 Processing Plus supports digital audio sources up to high resolution of 384-kHz/32-bit. The algorithms restore information that was lost during the digital recording to ensure detailed playback.
USB-DAC
PMA-1700NE provides USB-DAC function that supports high resolution audio signals up to 11.2-MHz DSD and 384-kHz/32-bit PCM. These digital signals with suppressed jitter will get passed on to the high quality DAC for an optimal D/A conversion with highest precision.
MM AND MC PHONO EQUALIZER
The PMA-1700NE includes a phono equaliser that supports input from both MM and MC cartridges. The simple, straightforward design significantly improves sound quality.
HIGH-PRECISION ELECTRICAL CONTROLS
The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analogue feeling of operation. The unique mechanism offers smooth, linear control. A Source Direct function passes by all tone control for purest audio.
OPTICAL AND COAXIAL DIGITAL INPUTS
The PMA-1700NE features two optical inputs and one coaxial input and supports PCM signals up to 192 kHz/24 bit.
EXTERNAL PRE-AMP INPUT TERMINALS
“EXT/PRE” input terminals are fixed gain inputs that can be used for connecting an external pre-amp using the PMA-1700NE as a power amp.
SIX-BLOCK CHASSIS CONFIGURATION AND DIRECT MECHANICAL GROUND CONSTRUCTION
Constructed with 1mm-thick steel plates and damping feet made of ABS resin with rigid rib construction, the chassis protects the signal circuits from external vibration and eliminates adverse effects of mutual interference among the circuits.
BUILD INTEGRITY WITH THOUGHTFULLY SELECTED COMPONENTS
With a more than 110-year legacy of designing premium audio components, trust that your Denon product is built to last.
Remote Control –> RC-1249
Remote Control Bus Terminal
Yes
Unit (W x H x D mm)
434 x 135 x 410
Net weight
17.6kg
Heatsink for Power Amplifier
Extruded Aluminum
Rated Output Power
70W + 70W (8ohm,20Hz-20kHz,THD0.07%)
140W + 140W (4ohm, 1kHz, THD0.7%)
Input Sensitivity: CD/LINE/RECORDER
125 mV / 19 kohm
Total Harmonic distortion
0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
Input Sensitivity: Phono input
MM: 2.5 mV / 47 kohm
MC: 200 μV / 100 ohm
Input Sensitivity: Power Amp input
0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio
PHONO (MM): (89dB)
PHONO (MC): (74dB)
CD: (107dB)
Power Consumption
295W
at Standby
0.2W TV autoplay off
0.4W TV autoplay on
Power Amplifier Circuit
New UHC-MOS
Single Push Pull (7)
DAC Circuit
PCM1795
Pre Amplifier Circuit
Variable Gain Preamplifier (OP AMP)
Source Direct
Yes
Bass / Treble / Mid / Balance Control
Yes / Yes /
/ Yes
Analog Amp Mode
Yes (button on front panel)
Digital Processing
Advanced AL32 Processing Plus
DAC Master Clock Design
Yes
Asyncronous mode (for USB-B input)
Yes
Phono Input
Yes (MM / MC)
*default=MM
Headphone Output
1 (Turn off the speaker when inserting headphone
Analog Input (include Phono) / REC Out (RCA)
4/1 (PHONO / CD / NETWORK, AUX/ RECORDER)
Coaxial input / output (Maximum Support)
1 / 0 (192kHz/24bit)
Optical input / output (Maximum Support)
2 / 0 (192kHz/24bit)
Speaker Terminal
Gold Plated
Wi-Fi
No
HEOS
No
USB B (USB DAC)
1 (Rear)
PCM Sample Rate
~384kHz/32bit
DSD Audio Streaming (DoP)
~11.2MHz
