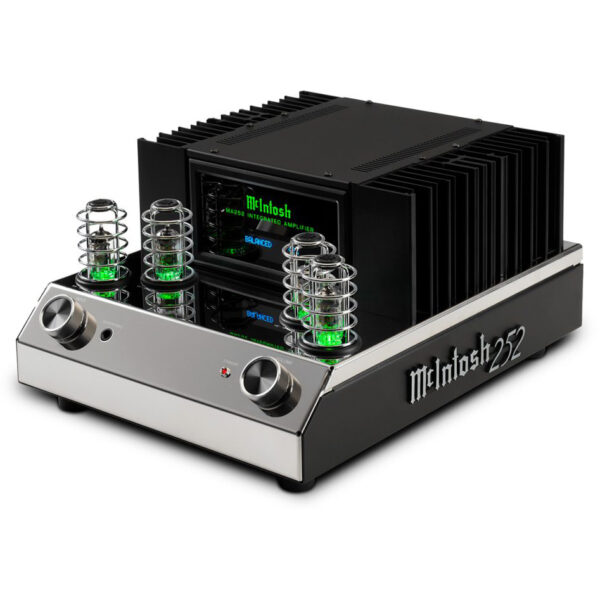

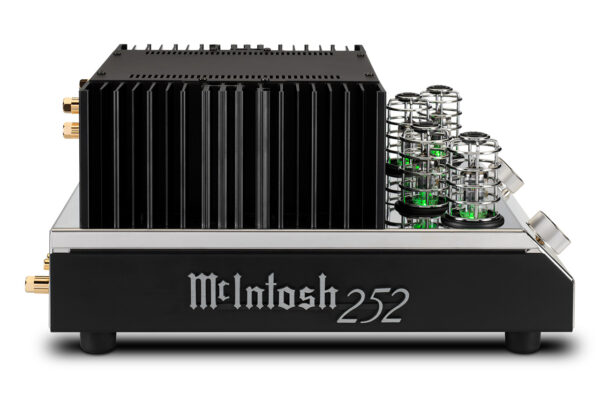

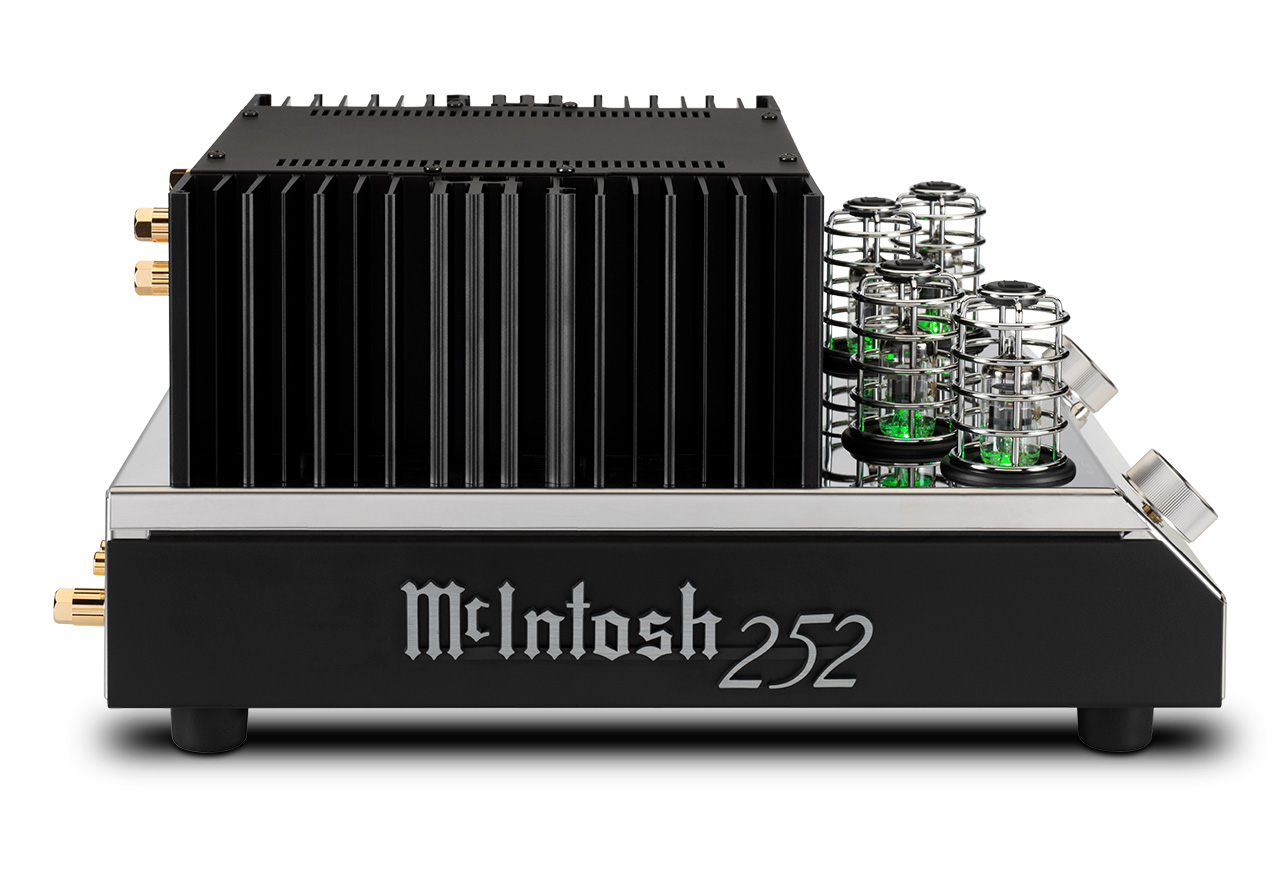

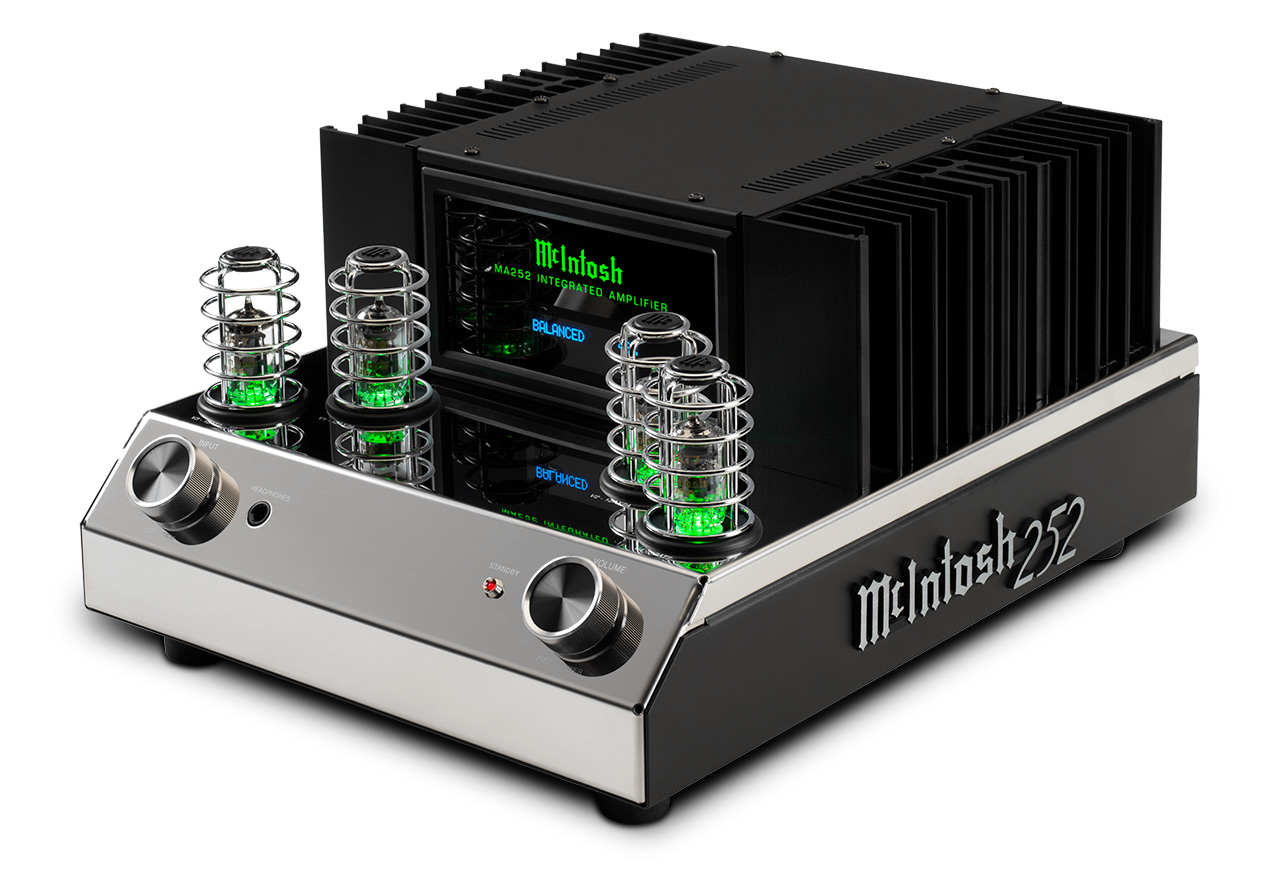

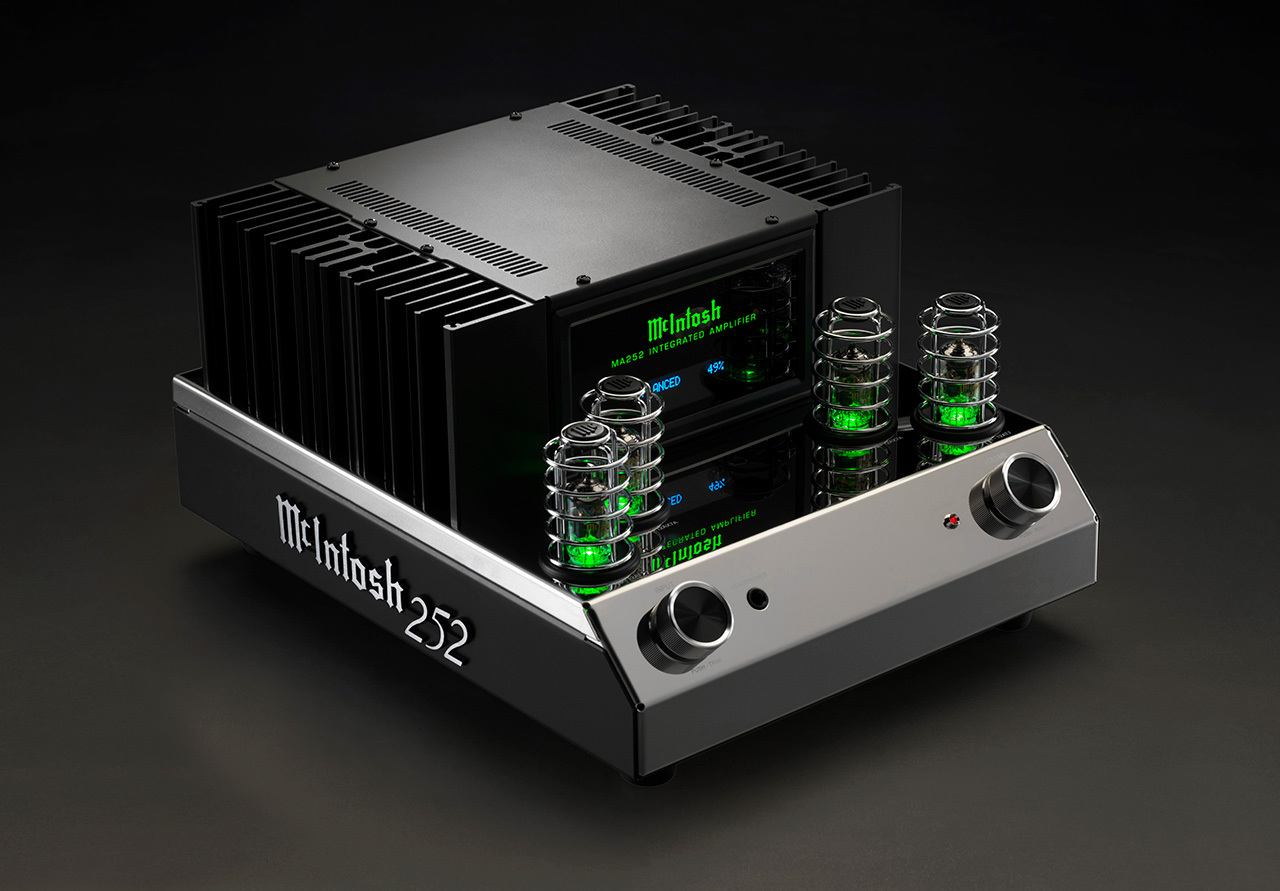

The MA252 Integrated Amplifier is the first hybrid integrated amplifier from McIntosh. Taking retro design cues from the legendary McIntosh MC275 Vacuum Tube Amplifier, the MA252 combines the best of vacuum tube and solid state circuit design to create an amplifier that’s both visually and sonically stunning. The preamplifier stage uses two 12AX7a and two 12AT7 vacuum tubes housed inside stylish protective cages; the output stage is a direct coupled solid state amplifier that delivers 100 Watts per channel into 8 Ohm speakers or 160 Watts per channel into 4 Ohm speakers. An all analog design, it comes with 2 unbalanced, 1 balanced and 1 Moving Magnet phono input for turntables. All 4 inputs can be given user-friendly names in order to simplify user control. Bass and treble tone controls help fine tune your music to your personal preferences. A full range subwoofer output is included for use with a powered subwoofer to further enhance low frequencies. The MA252 features our McIntosh Monogrammed Heatsinks™ which are connected to advanced high current output transistors. These transistors eliminate the typical amplifier warm-up time so that the MA252 is in peak operating condition from the moment it’s turned on. A powerful control microprocessor is used for smooth system operation, along with some of the latest audio-grade circuit components that deliver the best possible sound. Thanks to its solid state output, the MA252 is our first product containing vacuum tubes to include our patented Power Guard® technology. Power Guard monitors the output signal for signs of overdriving and makes real time micro adjustments to the input signal to prevent harsh sounding clipping that could potentially damage your speakers. If Power Guard is activated, the 2 vacuum tubes connected to the affected audio channel(s) will flash an amber color; they will return to their normal green color when the clipping has stopped. Other McIntosh technologies found in the MA252 include Sentry Monitor™, High Drive headphone amplifier and gold-plated speaker binding posts. Input selection, bass, treble, tone bypass, balance and input offset levels can be adjusted using the front panel knobs or the included remote control; all settings and input selection will be shown on the OLED display. The entire unit sits atop a beautiful polished stainless steel chassis with a classic McIntosh-styled die cast aluminum name badge attached to each side. Contact your local dealer to learn more. |

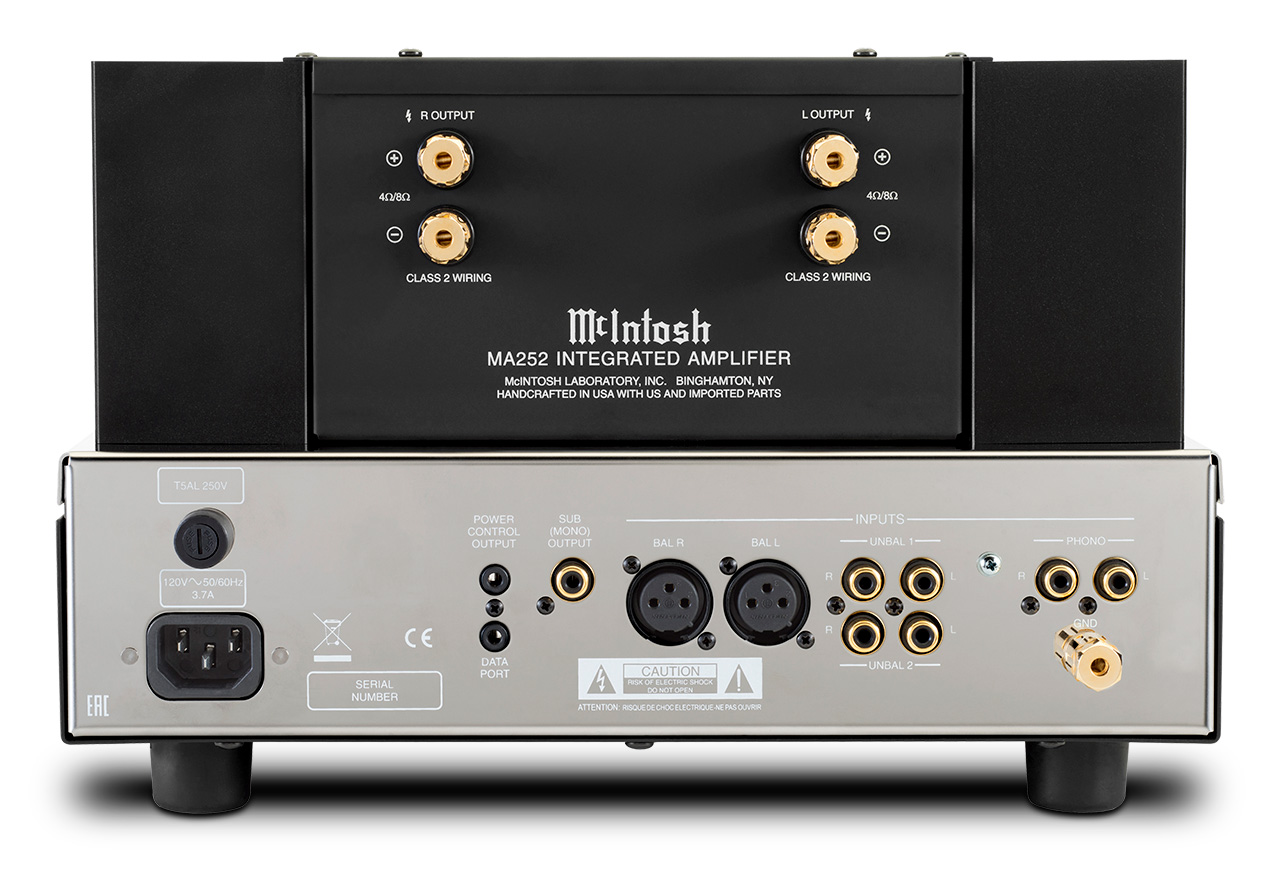

ELECTRONIC SPECIFICATIONSPOWER OUTPUT PER CHANNEL100 Watts into 8 Ohms NUMBER OF CHANNELS2 SPEAKER IMPEDANCE4 or 8 Ohms RATED POWER BAND20Hz to 20kHz TOTAL HARMONIC DISTORTION0.03% DYNAMIC HEADROOM1.8dB FREQUENCY RESPONSE +0,-0.5DB20Hz to 20kHz FREQUENCY RESPONSE, +0, -3DB10Hz to 100kHz SENSITIVITY PHONO (MOVING COIL)N/A SENSITIVITY PHONO (MOVING MAGNET)3.0mV SENSITIVITY HIGH LEVEL (BALANCED / UNBALANCED)0.6V/0.3V SENSITIVITY (POWER AMP INPUT)N/A SIGNAL TO NOISE RATIO (MOVING COIL)N/A SIGNAL TO NOISE RATIO (MOVING MAGNET)80dB SIGNAL TO NOISE RATIO (HIGH LEVEL)97dB SIGNAL TO NOISE RATIO (POWER AMP INPUT)N/A INPUT IMPEDANCE (BALANCED / UNBALANCED)20K/20K DAMPING FACTOR8 Ohms: >200 MAXIMUM OUTPUT (BALANCED / UNBALANCED)8V Unbalanced CONNECTIVITYBALANCED INPUT1 UNBALANCED INPUT2 PHONO INPUT MOVING COIL0 PHONO INPUT MOVING MAGNET1 (fixed loading) UPGRADEABLE DIGITAL AUDIO MODULENo DIGITAL COAXIAL INPUT0 DIGITAL OPTICAL INPUT0 DIGITAL MCT (DIN) INPUT0 DIGITAL USB INPUT0 BALANCED VARIABLE OUTPUT0 UNBALANCED FIXED OUTPUT0 UNBALANCED VARIABLE OUTPUT0 HEADPHONE OUTPUT1/4″ High Drive SUBWOOFER OUTPUT1 (mono) AM/FM TUNER OPTIONNo HOME THEATER PASSTHRUNo UNBALANCED ANALOG CONNECTOR TYPEStandard SPEAKER BINDING POST TYPEStandard SERVICE PORT0 DIGITAL AUDIO SPECIFICATIONSDIGITAL-TO-ANALOG CONVERTER (DAC) TYPEN/A DIGITAL COAXIAL INPUT SAMPLE RATEN/A DIGITAL OPTICAL INPUT SAMPLE RATEN/A DIGITAL MCT (DIN) INPUT SAMPLE RATEN/A DIGITAL USB INPUT SAMPLE RATEN/A CONTROLTONE CONTROLSBass and Treble TONE BYPASS AND INPUT ASSIGNYes RS232 CONTROL INPUTNo POWER CONTROL OUTPUT1 REAR PANEL DATA PORT1 REAR PANEL IR SENSOR INPUTNo INPUT LEVEL MATCHYes GENERAL SPECIFICATIONSVACUUM TUBE OR SOLID STATEPreamplifier: Vacuum Tube OUTPUT AUTOFORMERNo OUTPUT METERSNo DUAL LAYER CHASSISYes CHASSIS FINISHPolished stainless steel MCINTOSH MONOGRAMMED HEATSINKS™Yes POWER REQUIREMENT120V 50/60Hz, 3.7A STANDBY POWER REQUIREMENT<0.5 Watts WEIGHTS & DIMENSIONSDIMENSIONS (W X H X D)12″ (30.5cm) x 7-5/8″ (19.4cm) x 18″ (45.7cm) WEIGHT28 lbs (12.7 kg) SHIPPING WEIGHT37 lbs (16.8 kg) |
