Rotel A12 MKII Integrated Amplifier

Improves upon the original A12’s excellent performance by adding a new DAC and Roon compatibility.

The A12MKII stands well above its sleek design delivering 60 Watts of dynamic Class AB output into 8 ohms. This integrated...

Read More

Improves upon the original A12’s excellent performance by adding a new DAC and Roon compatibility.

The A12MKII stands well above its sleek design delivering 60 Watts of dynamic Class AB output into 8 ohms. This integrated amplifier supports your favourite sources including MM Phono Stage, analog, digital, PC-USB and wireless Bluetooth. Optimised circuits and a 32-bit DAC deliver spacious and open reproduction of the music.

$1,484.00

AUD Inc. GST

Clear
In Stock
QTY

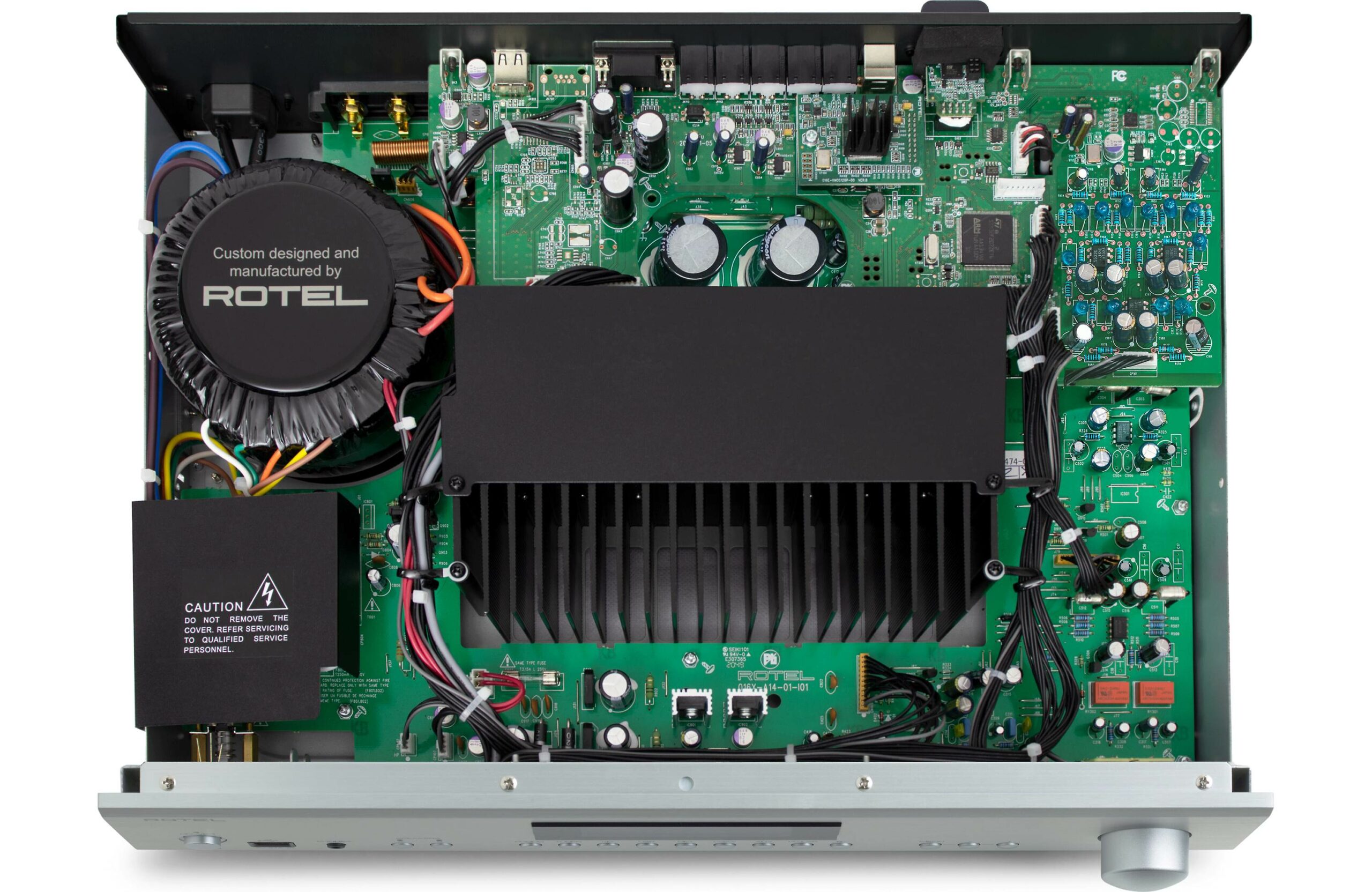

The A12MKII Integrated Amplifier stands well above its slim, sleek design profile designed and engineered for music lovers. Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms. A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptXTM Bluetooth input ensures connection to your favourite sources. The premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimised circuits preserving the integrity of the audio stream. Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.

Convenient connections

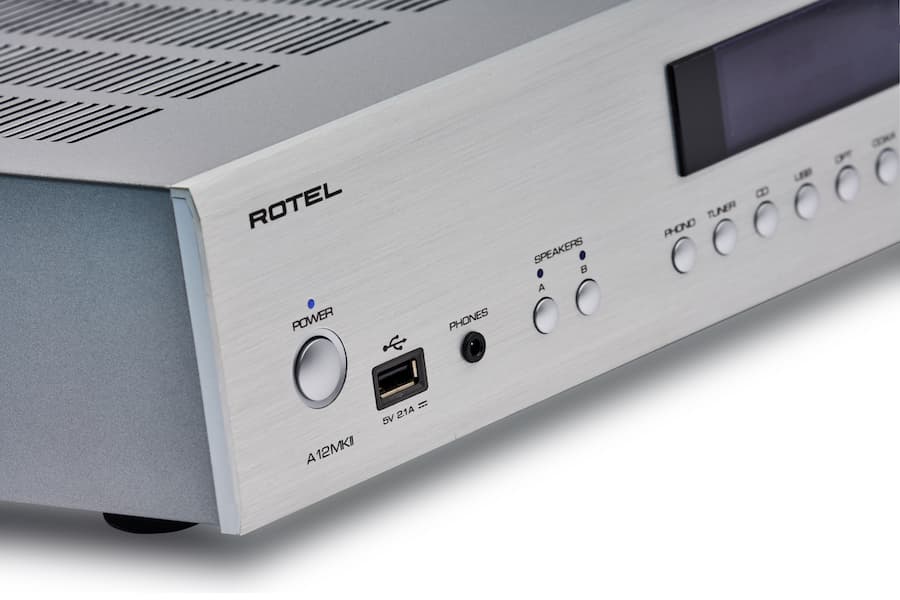

The A12 has five analog RCA inputs on the back panel, including a phono stage for connecting a turntable with a moving magnet cartridge. Digital sources are well-served, too: there are dual optical and coaxial inputs, plus a USB Type-B port for connecting a PC. A USB Type-A port on front panel handles audio signals from an iPod®, iPhone®, or iPad®.

This amp offers a wealth of control options, including an IR input, RS-232 port, and dual 12-volt trigger outputs. A proprietary 3.5mm Rotel Link input/output allows connected Rotel products to communicate with each other and be controlled via the Rotel app for Apple iPhone®.

Features

60 watts x 2 channels into 8 ohms (20-20,000 Hz) at 0.018% THD

Class AB amplification with custom-designed toroidal transformer

Texas Instruments premium 32-bit/384kHz digital to analog converter

built-in Bluetooth with high-quality AAC and aptX® audio coding

frequency response: 10-100,000 Hz (line inputs, ±0.5dB); 20-20,000 Hz (phono input, ±0.5dB); 10-90,000 Hz (digital inputs, ±2dB)

signal-to-noise ratio: 100 dB (line); 90 dB (phono); 103 dB (digital)

Roon-ready (subscription required)

detachable power cord

remote control

DIMENSIONS (W × H × D)
430 × 93 × 345mm
17″ × 3.6″ × 13.5″
FRONT PANEL HEIGHT
80mm (3.15″)
POWER REQUIREMENTS
120V, 60Hz
POWER CONSUMPTION
230W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
8.76kg (19.31lbs.)
BTU RATING (4Ω, 1/8th power)
632 BTU/h
MAXIMUM POWER OUTPUT
120W/Ch (4Ω)
CONTINUOUS POWER OUTPUT
60W/Ch (8Ω)
TOTAL HARMONIC DISTORTION (THD)
<0.018%
FREQUENCY RESPONSE
Line Level Inputs: 10Hz – 100kHz, 0±0.5dB
Digital Inputs: 10Hz – 90kHz, 0±2dB
Phono Input: 20Hz – 20kHz, 0±0.5dB
S/N RATIO (IHF “A” Weighted)
Line Level Inputs: 100dB
Digital Inputs: 103dB
Phono Input: 90dB
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
220
INPUT SENSITIVITY
Line Level Inputs: 230mV
Digital Inputs: 0dBfs
Phono Input (MM): 3.4mV
INPUT IMPEDANCE
Line Level Inputs: 24kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
INPUT OVERLOAD
Line Level Inputs: 4V
Phono Input: 50mV
PREOUT LEVEL
1.2V
OUTPUT IMPEDANCE
470Ω
TONE CONTROLS
±10dB at 100Hz / 10kHz
DIGITAL INPUT
SPDIF LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)*
*Driver installation required
Roon Tested
