Rotel Diamond Series RA-6000 Integrated Amplifier
The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4...
Read MoreThe Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.
$3,249.00
AUD Inc. GST
BEST PRICE GUARANTEE
SPEAK TO OUR TEAM • TEXT US
Free Shipping
Australia wide on orders over $100
or 6 payments of $541.5 - $541.5 with zip
Own it now, pay later Learn More
The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.
Certified Roon Tested
Supports MQA and MQA Studio
2 x 350 Watts of robust
Class AB power, 4 Ohms Wireless aptX™ HD and
AAC Bluetooth Texas Instruments
premium 32-bit/384kHz
Digital to Analog Converter
Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested. A Moving Magnet Phono stage is also included for vinyl fans.

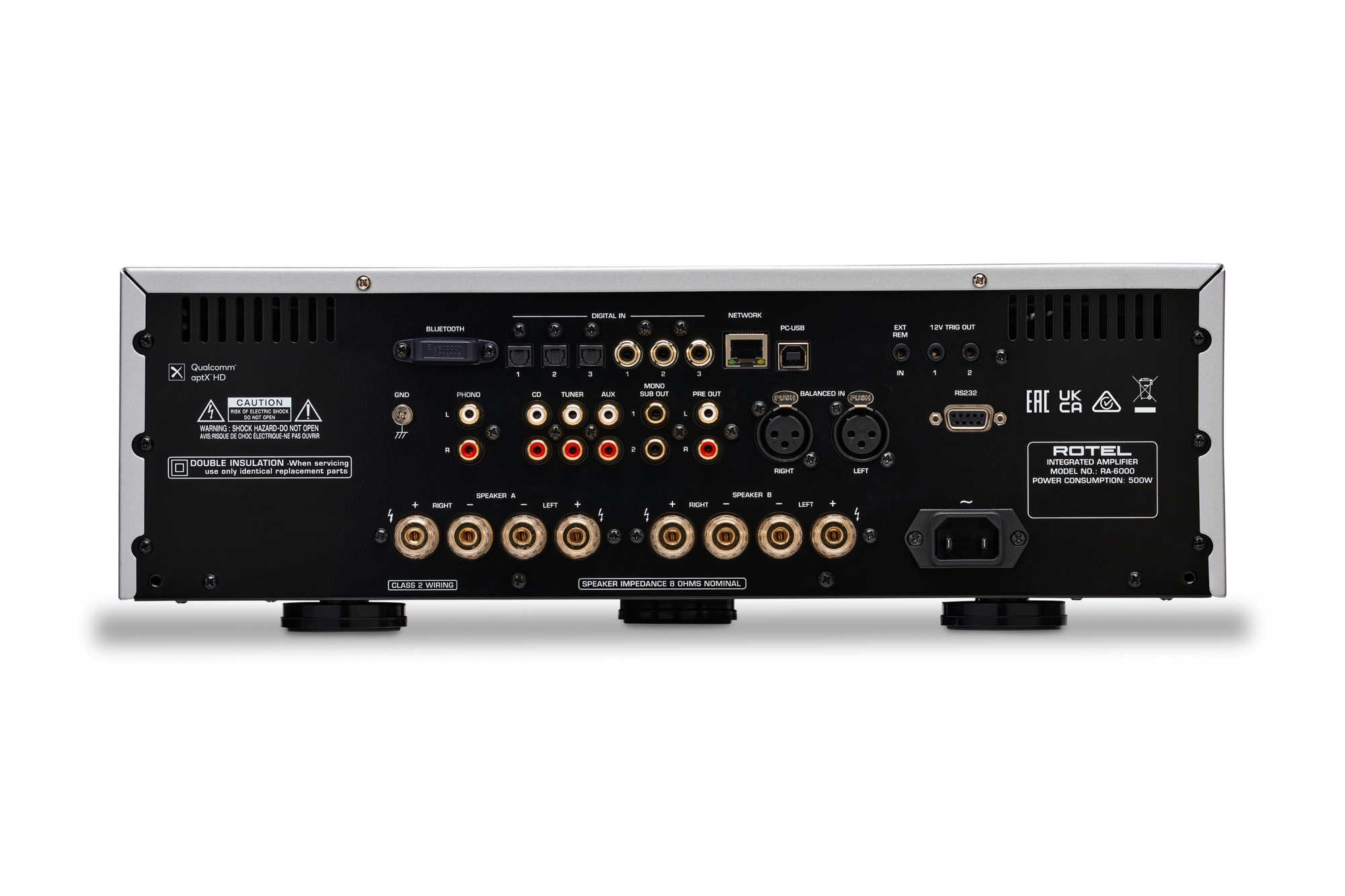

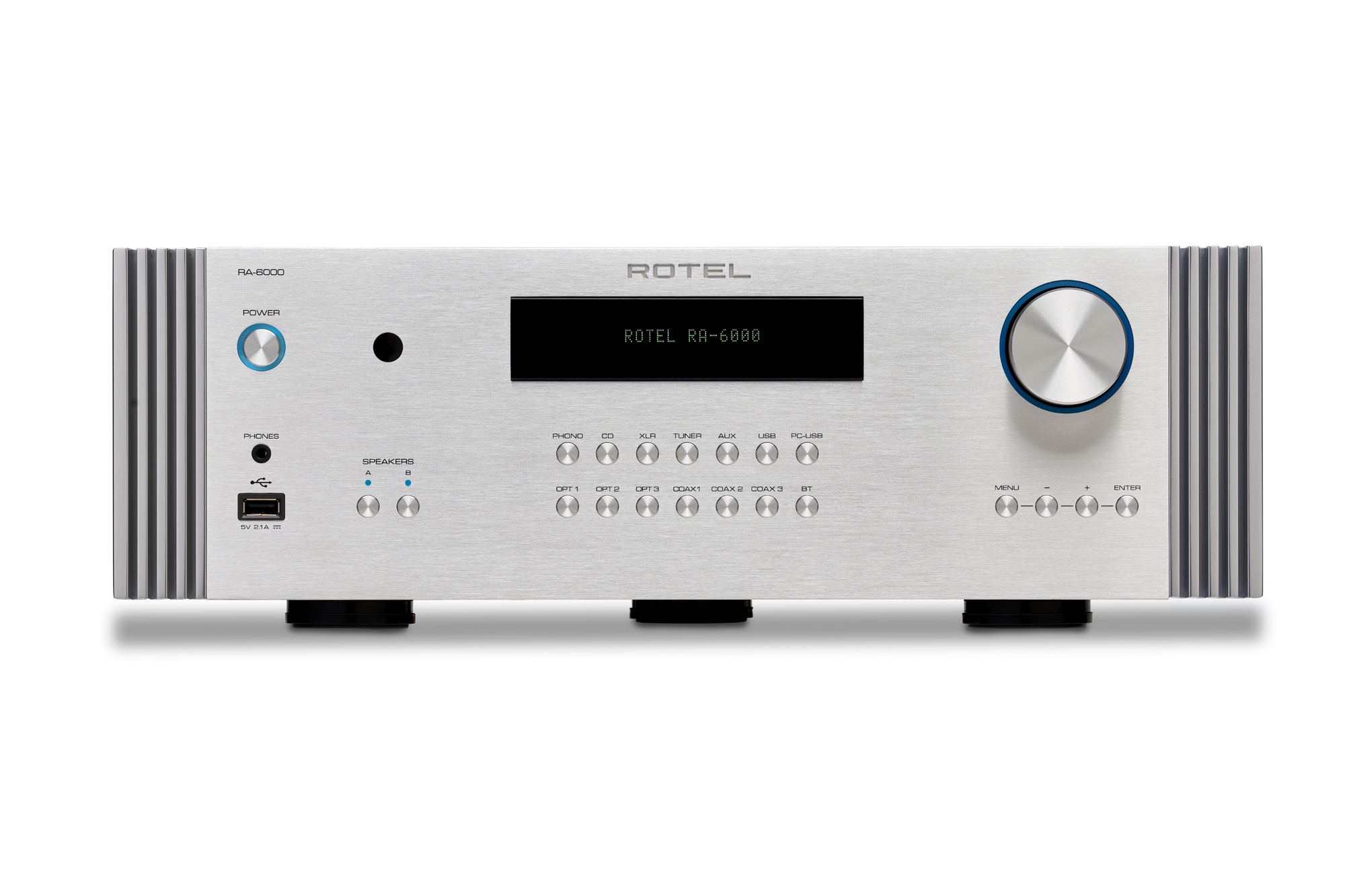

Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation. Ethernet, RS232,12V trigger and external remote input simplify integration with control systems.The RA-6000 is available in both black and silver colours.
SPECIFICATIONS
DIMENSIONS (W × H × D)
431 × 144 × 425mm
17″ × 5.7″ × 16″
FRONT PANEL HEIGHT
3U / 132.6mm (5.25″)
POWER REQUIREMENTS
120V, 60Hz
POWER CONSUMPTION
500W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
18.81kg (41.47lbs.)
BTU (4 ohms, 1/8th power)
1239 BTU/h
MAXIMUM POWER OUTPUT
350W/Ch (4Ω)
CONTINUOUS POWER OUTPUT
200W/Ch (8Ω)
TOTAL HARMONIC DISTORTION
(THD)
<0.0075%
FREQUENCY RESPONSE
Line Level Inputs:
10Hz - 100kHz, ±0.5dB
Digital Inputs:
10Hz - 90kHz, ±2dB
Phono Input:
20Hz - 20kHz, ±0.5dB
S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 103dB
Digital Inputs: 102dB
Phono Input: 80dB
INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
600
INPUT SENSITIVITY
Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Digital Inputs: 0 dBfs
Phono Input (MM): 5.2mV
INPUT IMPEDANCE
Line Level Inputs (RCA): 5.6kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
INPUT OVERLOAD
Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 4.5V
Phono Input: 52mV
PREOUT LEVEL
1.9V
OUTPUT IMPEDANCE
100Ω
COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
