Rotel RAS-5000 Integrated Streaming Amplifier

The Rotel RAS-5000 Integrated Streaming Amplifier is the perfect fusion of advanced audio technology coupled with modern convenience.

The Rotel RAS-5000 Integrated Streaming Amplifier is the perfect fusion of advanced audio technology coupled with modern convenience.

$3,959.00

AUD Inc. GST

Clear
In Stock
QTY

Simplicity and performance meet in the Rotel RAS-5000, a component designed to fit into your lifestyle and elevate your entertainment experience.

Features:

2 x 220 Watts of robust Class AB power, 4 Ohms

Wireless aptX™ HD and AAC Bluetooth

ESS premium 32-bit Digital to Analog Converter

Certified Roon Ready

Includes Remote Control

The RAS-5000 seamlessly integrates HDMI ARC (Audio Return Channel) for playback of video sound, and effortlessly streams from online sources to play your favourite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Cast, Roon, or aptX HD Wireless Bluetooth.

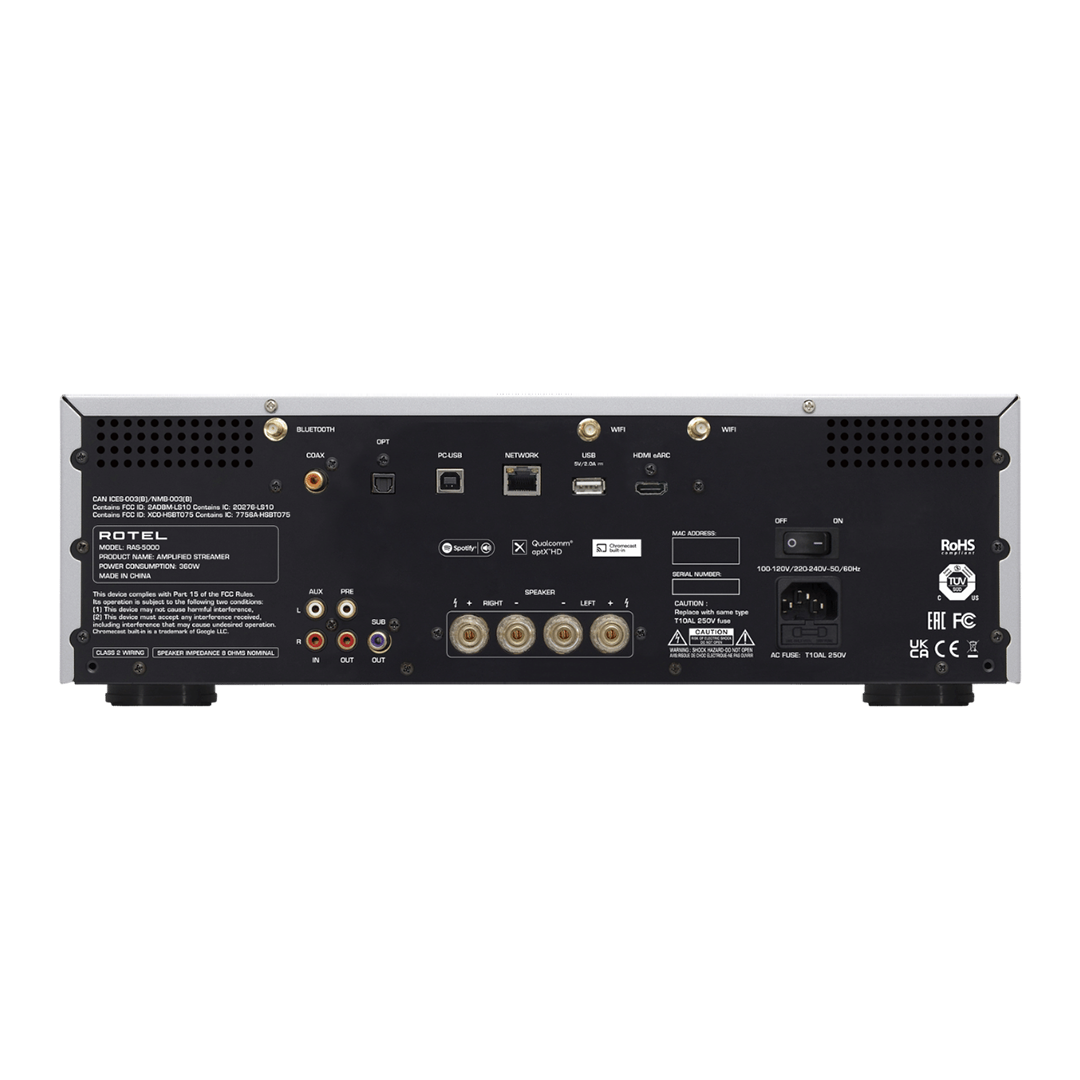

In addition to streaming and HDMI ARC you’ll also enjoy a wide array of traditional source inputs including Coaxial, Optical and RCA Analog inputs. The PC-USB input supports PCM and native MQA and MQA Studio decoding.

Digital music files up to 32-bit, 384kHz resolution are rendered with ultimate precision thanks to the premium ESS Digital to Analog converter, while the streamlined ARC connection between your TV and RAS-5000 ensures dynamic, high resolution sound from your favourite live sports, TV shows, movies, and games.

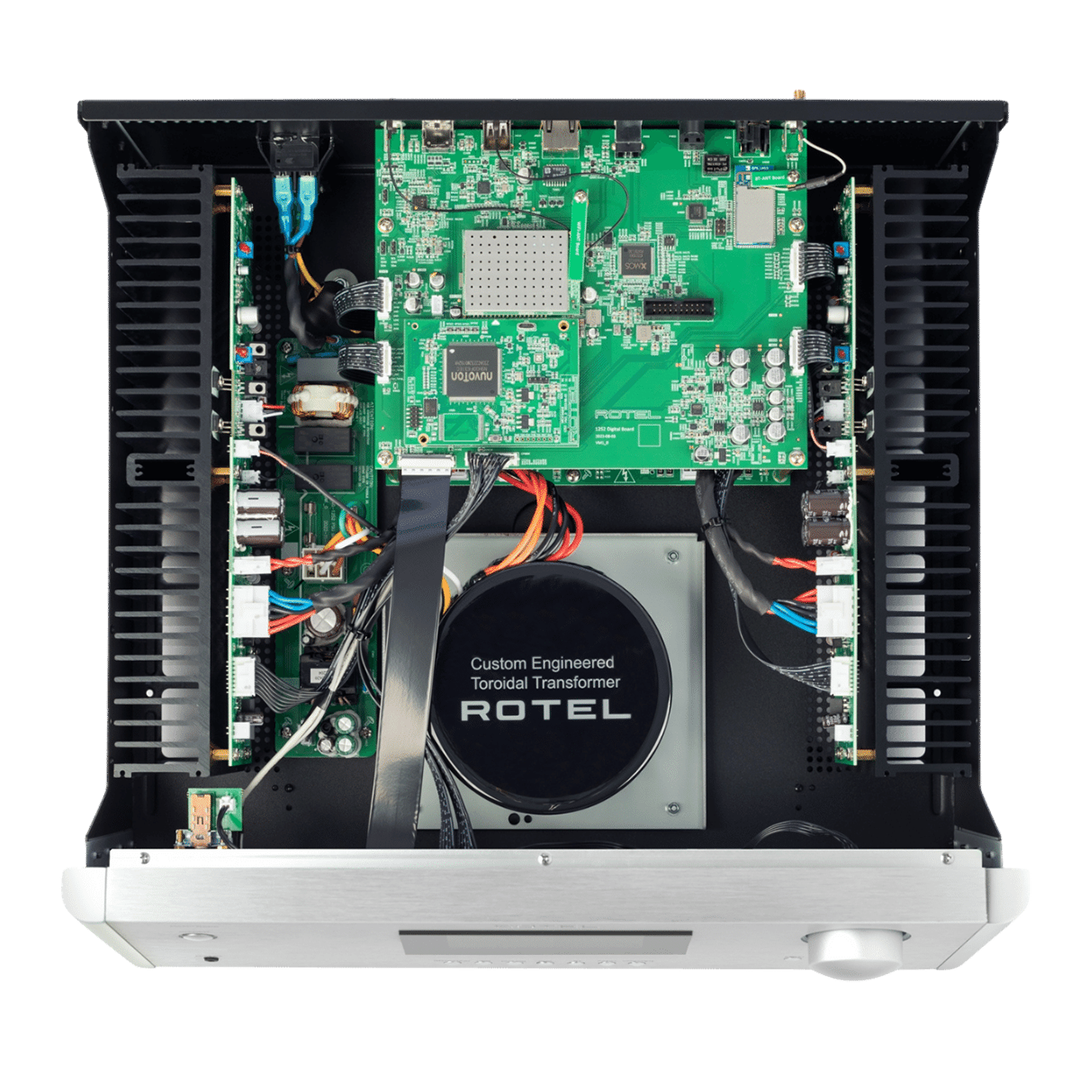

Like all Rotel amplifiers, the RAS-5000 is constructed around a massive linear power supply featuring a custom toroidal transformer, which allows the RAS-5000 to deliver a staggering 220 watts of Class AB power into 4 ohms. The over-engineered power supply delivers ultra-low-noise power to all critical components and robust current to the amplifier output transistors to deliver deep, controlled bass energy with exceptional fidelity.

The sleek RAS-5000 is available in both stylish black and sophisticated silver colours to blend seamlessly to any décor, while its user-friendly interface ensures effortless operation.

Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in sound.

SPECIFICATIONS:

POWER OUTPUT
220 Watts / ch (4 Ohms)
140 Watts / ch (8 Ohms)

TOTAL HARMONIC DISTORTION
(THD)
<0.03%

FREQUENCY RESPONSE
Line Level Inputs:
10Hz – 100kHz, ±0.5dB
Digital Inputs:
10 Hz – 70k Hz, (±3 dB, MAX)

S/N RATIO (IHF “A” Weighted)
Line Level Inputs: 103dB
Digital Inputs: 105dB
DIMENSIONS (W × H × D)
431 x 144 x 425 mm
17” x 5 7/8” x 16”

FRONT PANEL HEIGHT
132.6 mm / 5 1/4”

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
380W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
15.7 kg, 34.6 lbs

BTU RATING (4Ω, 1/8th power)
1027 BTU/h

INTERMODULATION DISTORTION
(60 Hz : 7k Hz, 4:1)
<0.03%

DAMPING FACTOR
290

INPUT SENSITIVITY
Line Level Inputs: 0.78V
Digital Inputs: -8dBfs

INPUT IMPEDANCE
Line Level Inputs: 46k Ohms
Digital Inputs: 75 Ohms

INPUT OVERLOAD
Line Level Inputs: 4.1V

TONE CONTROLS
±10dB at 100Hz / 10kHz
HDMI
Support eARC function

COAX/OPTICAL DIGITAL INPUT SIGNALS
SPDIF LPCM (Up to 24-bit/192kHz)
