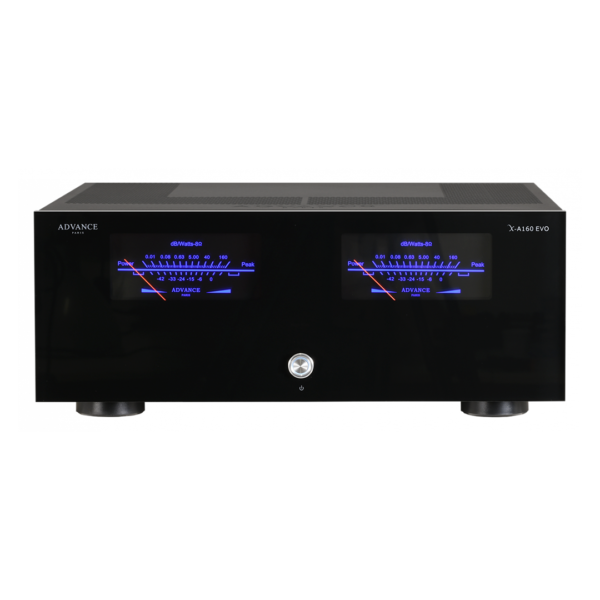

Advance Paris X-A160 EVO Stereo Power Amplifier
New diagrams, power transistors identical to the MAA 1000, new power supply, more power, more music, more modern presentation such is the X-A160EVO.
The...
See descriptionNew diagrams, power transistors identical to the MAA 1000, new power supply, more power, more music, more modern presentation such is the X-A160EVO.

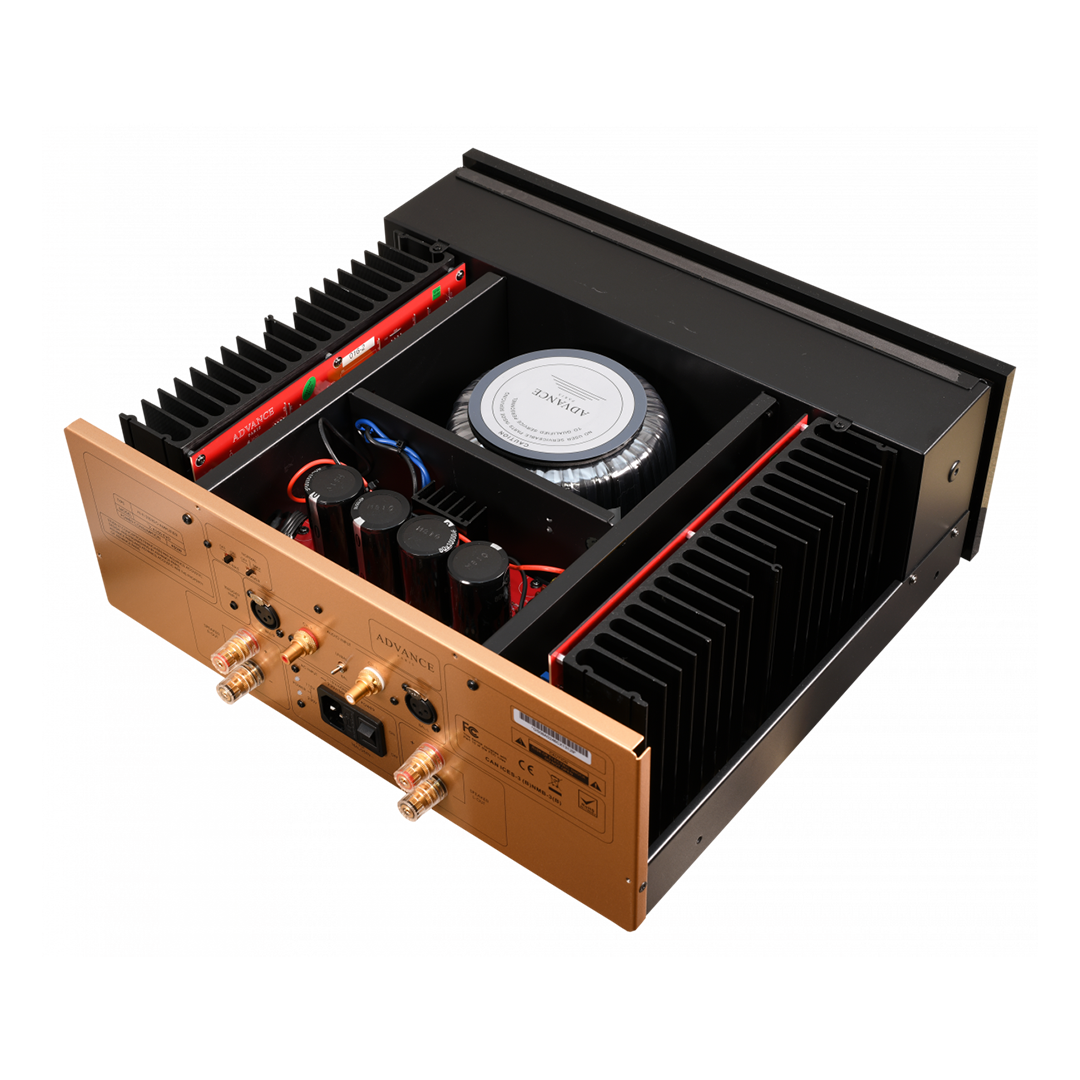

The X-A160EVO amplifier consists of an ultra-rigid, compartmentalised chassis, providing effective shielding, thus eliminating any risk of radiation between the various circuits of the device. The use of “Audiophile” type components guarantees a reproduction of your favourite music with finesse and subtlety.
Exclusive at: CanningtonJoondalupMidlandRockingham
$2,699.00
AUD Inc. GST
BEST PRICE GUARANTEE
SPEAK TO OUR TEAM • TEXT US
Features:
2 x 160W @ 8Ω / 240W @ 4Ω – Class AB
Large 700VA toroidal transformer
“High Bias” mode for Class A operation in first few watts
4x 10,000uF / 80V filter capacitors

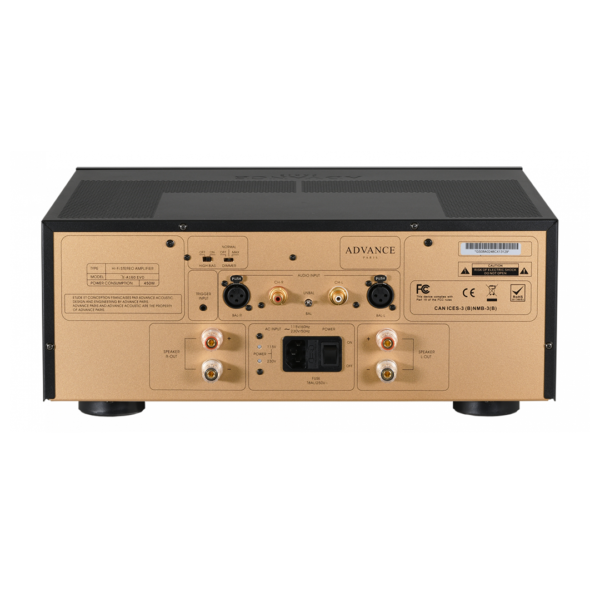

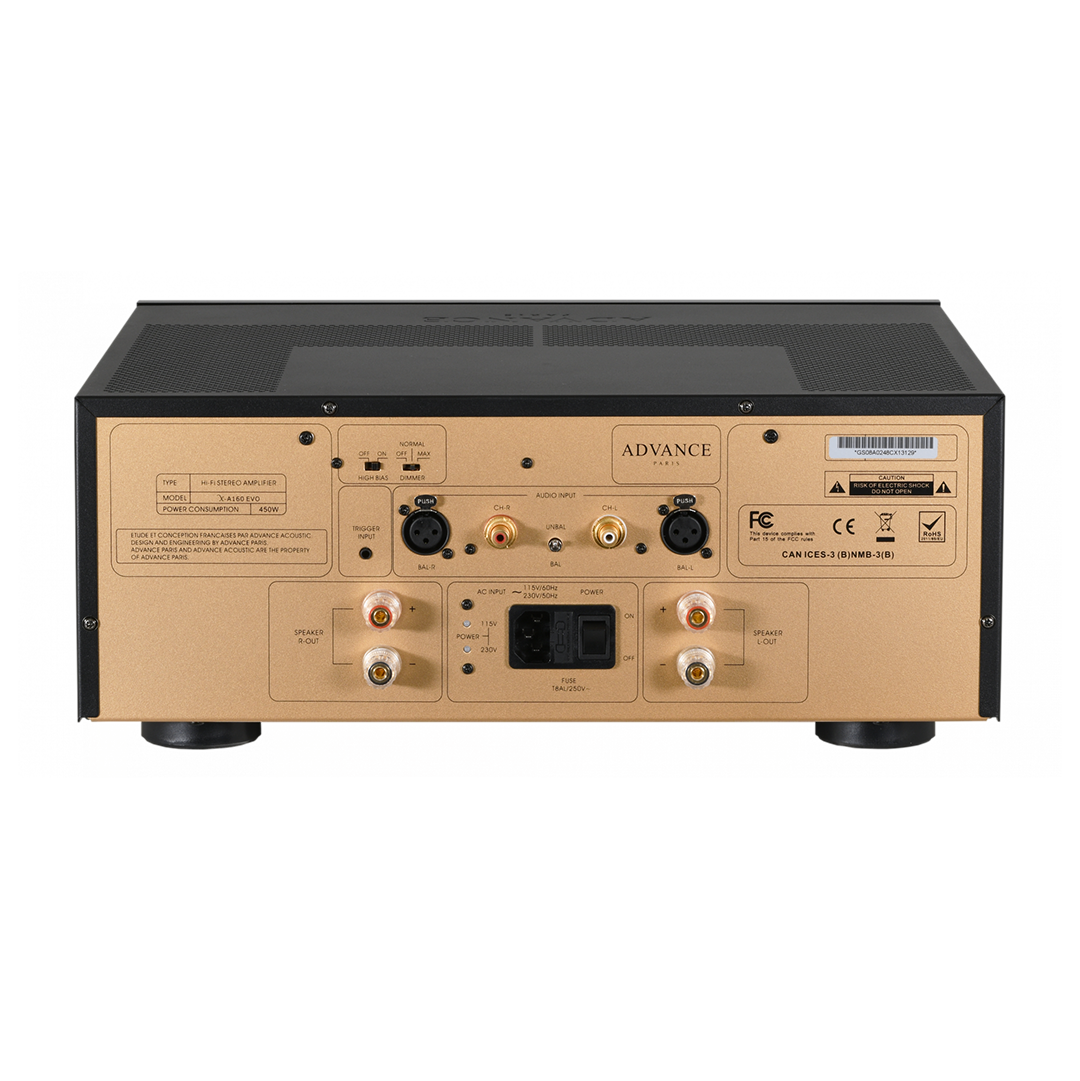

Balanced (XLR) and unbalanced (RCA) inputs
The high power supply associated with the “very high current” power transistors (NJW0281G – NJW0302G) of the MAA 1000, restores the most demanding dynamics.
The X-A160EVO delivers a power of 160 W per channel in class AB*, a switch located at the back of the device allows the X-A160EVO to deliver the first Watts in class A*. Beyond this power, switching to class AB** takes place automatically.
Specifications:
Output power 8Ω
2 x 160W RMS
Output power 4Ω
2 x 240W RMS
Bandwidth
10 Hz – 80 kHz
Distortion
<0,07% Signal to noise ratio > 120 dB
Channel separation
> 80 dB
Imped. Asymmetric input
20 KΩ
Imped. input Symmetrical
38 KΩ
Mains voltage
115-230V
Standby consumption
<0,5W
consumption max.
500
Transformer power
700
Transformer
Toroidal
Height
160 mm
Width
440 mm
Depth
430 mm
Net weight
19 kg
Product Type
power block
VU-Meter
Yes
