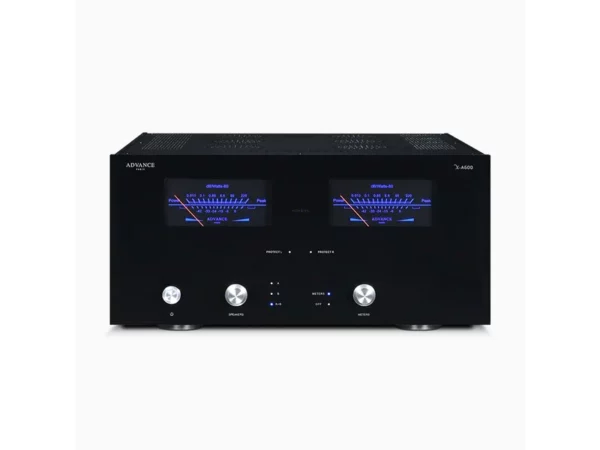

Advance Paris X-A600 EVO Stereo Power Amplifier

The X-A600 stereo power block is the new stereo power amplifier from Advance Paris. The linear type power supply is based on a 700VA toroidal transformer and a set of 6 capacitors for a total...

Read More

The X-A600 stereo power block is the new stereo power amplifier from Advance Paris. The linear type power supply is based on a 700VA toroidal transformer and a set of 6 capacitors for a total of 60000μF. Combined with “very high current” power transistors (NJW0281G -NJW0302G), we guarantee dynamic sound even under heavy load. The X-A600 delivers a power of 200 W per channel in class AB under 8Ω. A “High BIAS” switch located at the rear of the device allows the X-A600 to deliver the first Watts in sliding class A. Beyond this power, switching to class AB takes place automatically.


Exclusive at: Rockingham

$4,699.00

AUD Inc. GST

Contact us to buy

Advance Paris X-A600 EVO Stereo Power Amplifier

The X-A600 stereo power block is the new stereo power amplifier from Advance Paris. The linear type power supply is based on a 700VA toroidal transformer and a set of 6 capacitors for a total of 60000μF. Combined with “very high current” power transistors (NJW0281G -NJW0302G), we guarantee dynamic sound even under heavy load. The X-A600 delivers a power of 200 W per channel in class AB under 8Ω. A “High BIAS” switch located at the rear of the device allows the X-A600 to deliver the first Watts in sliding class A. Beyond this power, switching to class AB takes place automatically.

Features:

– 2 x 200W @ 8Ω / 300W @ 4Ω – Class AB
– Large 700VA toroidal transformer
– “High Bias” mode for Class A operation in first few watts
– 6x 10,000uF / 80V filter capacitors

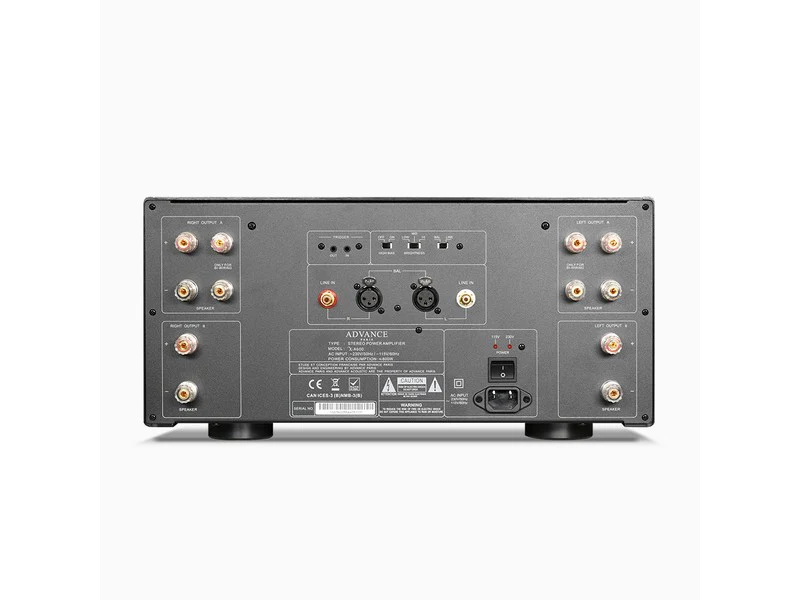

– Balanced (XLR) and unbalanced (RCA) inputs

The X-A600 benefits from a chassis with significant rigidity thanks to its mechanical design. Each circuit is separated from the others by a compartmentalized construction ensuring effective shielding. The separate power block is an essential element of any advanced audio system.

Combined with the X-P700 pre-amplifier, you can build a high-quality audiophile package capable of delicately driving all the loudspeakers while exercising absolute control of the bass drivers.

Equipped with RCA and XLR sockets, the A-X600 can be used in High-Fidelity or Home-Cinema. For more discretion during your session, you can turn off the VU meters.

Specifications:

Output power 8Ω
2 x 200W RMS

Output power 4Ω
2 x 300W RMS

Frequency response
10 Hz – 80 kHz

Distortion
Inf. At 0,007%

Signal to noise ratio
113 dB

Crosstalk
108 dB

AC input compatibility
115V / 230V

Standby consumption
Inf. At 0,5W

consumption max.
575 W

Transformer power
700 VA

Transformer type
Toroidal

Starter
LINE level on RCA and XLR socket

Input Selection (RCA / XLR)
Rear panel selector

Outings
Bare cable, Banana plugs, Forks

High-Bias adjustment
Yes

VU-meter brightness adjustment
Yes (ON / OFF / Low / Medium / High)

Remote control
No

Trigger socket
2 (IN/OUT) 12V

Height
210 mm

Width
431 mm

Depth
464 mm

Net weight
25 kg

Gross weight
30 kg

VU-Meter
Yes
