SDA-4600

4-channel Bridgeable Class D Amplifier

The SDA-4600 is a versatile 4-channel Class D power amplifier designed to deliver maximum power while taking up minimal rack space. Each channel is rated to deliver 600W into 8 ohms and adjacent channel pairs can be bridged to deliver 1,200W into 8 ohms. This flexible channel configuration makes this an ideal amplifier to power larger LCRs and subwoofers in JBL Synthesis immersive audio systems. Powerful built-in DSP allows for custom loudspeaker tuning and full external control allows for complete and easy system integration.

SPECIFICATIONS

General Specifications

• Cooling
  • Continuously variable speed forced air, front to back airflow
• Maximum Fan Noise (dBA SPL @ 1M)
  • 45
• Required AC Mains (±10%)
  • 100Vrms – 240Vrms ~50/60Hz

Audio Specifications

• Rated Output Power Into 8 Ohms: 600W
• Rated Output Power Into 4 Ohms: 600W
• Rated Output Power Into 2 Ohms: 300W
• Bridged Output Power Into 8 Ohms: 1200W
• High Impedance: 70-Volt & 100-Volt Capable
• Frequency Response (8Ω, 20Hz – 20kHz): ±0.25dB
• Analog Input Signal to Noise Ratio: 104 dB
• BLU link Input Signal to Noise Ratio (A-Weighted): >108dB
• Total Harmonic Distortion (at full rated power, 20Hz – 20kHz): 0.35%
• Damping Factor (20Hz to100Hz): >1000
• Input Impedance (nominal balanced, unbalanced): 10kΩ, 5kΩ
• Maximum Input Level before Compression (Low Gain Mode); (+)20dB: Yes
• Load Impedance Stereo/Dual Mode: 2Ω – 16Ω; 70Vrms and 100Vrms
• Load Impedance Bridge Mono: 4Ω – 16Ω; 140Vrms and 200Vrms

Dimensions

• Width: 19 in. (48.3 cm)
• Height: 3.5 in. (8.9 cm)
• Depth: 14.25 in. ( 35.63 cm)
• Weight: 20.1lbs (9.12kg)

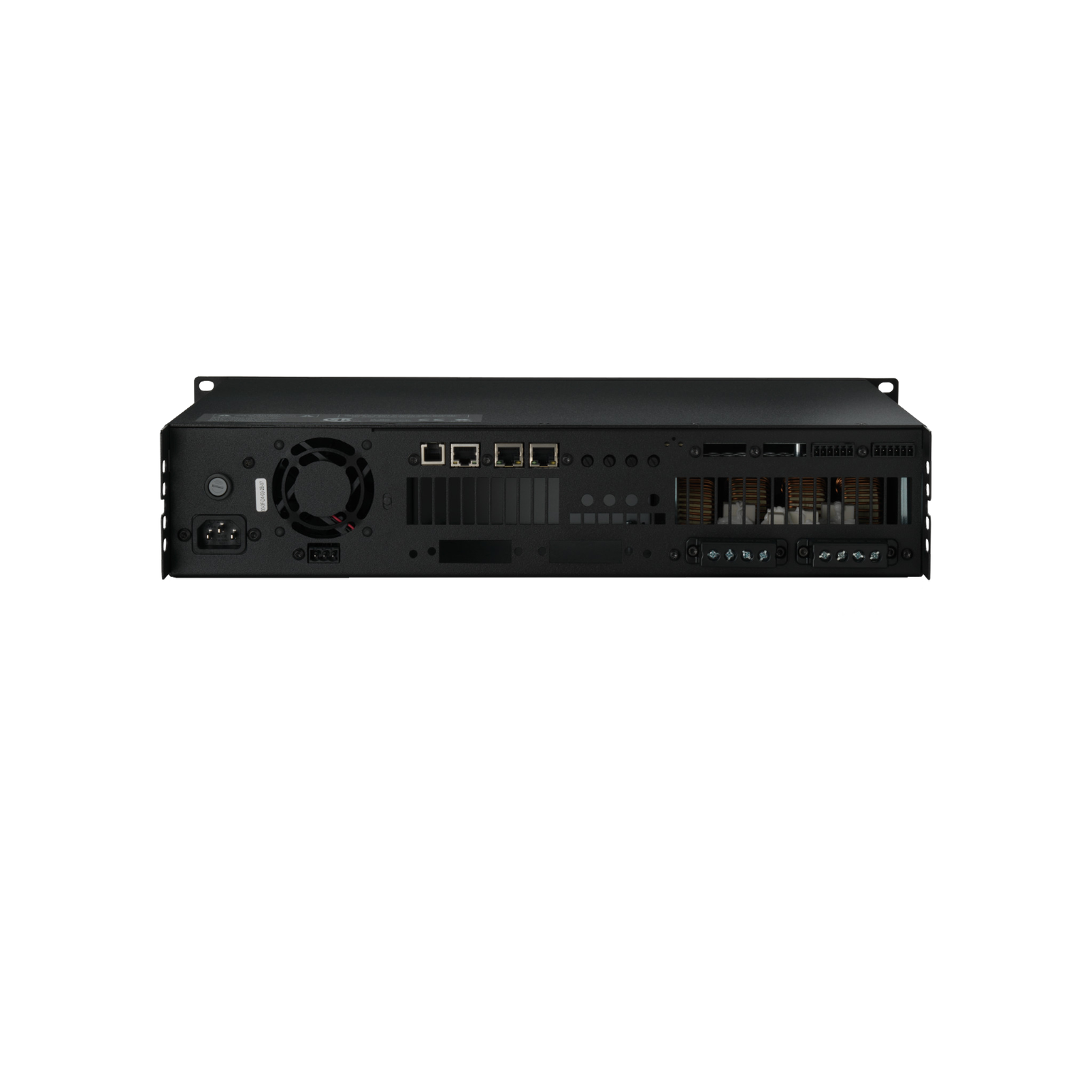

Control and Connection Specifications

• Four balanced line inputs: 6-pin block connectors (Two channels per block connector)
• Four speaker level outputs: Terminal strip (accepts up to 10AWG wire)
• BLU link Input/Output: RJ-45 (Category 5e)
• Ethernet: RJ-45 (Category 5e)
• Programmable General Purpose Input/Output Ports: 3-pin block connector (Enables SLEEP mode and monitoring of AMP STATUS)
