McIntosh MI1250 12-Channel Power Amplifier
- Type: Digital
- 50 Watts x 12-Channels into 8 Ohms
- 90 Watts x 12-Channels into 4 Ohms
- Power Guard®, Sentry Monitor™, On/Off signal sensing, Bussable inputs
- 2U rack...
- Type: Digital
- 50 Watts x 12-Channels into 8 Ohms
- 90 Watts x 12-Channels into 4 Ohms
- Power Guard®, Sentry Monitor™, On/Off signal sensing, Bussable inputs
- 2U rack mountable
Exclusive at: Midland
$9,995.00
AUD Inc. GST
BEST PRICE GUARANTEE
SPEAK TO OUR TEAM • TEXT US
PRISTINE MUSIC PLAYBACK TO MULTIPLE ROOMS FOR WHOLE HOUSE AUDIO.
The versatile MI1250 12-Channel Digital Amplifier can distribute pristine music playback to multiple rooms in your home. It delivers 50 Watts into 8 Ohm speakers or 90 Watts into 4 Ohm speakers via highly sophisticated closed loop digital switching amplifiers that are paired with extremely robust power supplies to produce performance levels that are rarely achieved in distributed audio.
It has installer-friendly physical dimensions and is 2U rack mountable via the included mounting ears (the mounting ears are removable for non-rack installations). As a highly efficient Class D amplifier, it does not require noisy cooling fans to maintain nominal operating temperature.

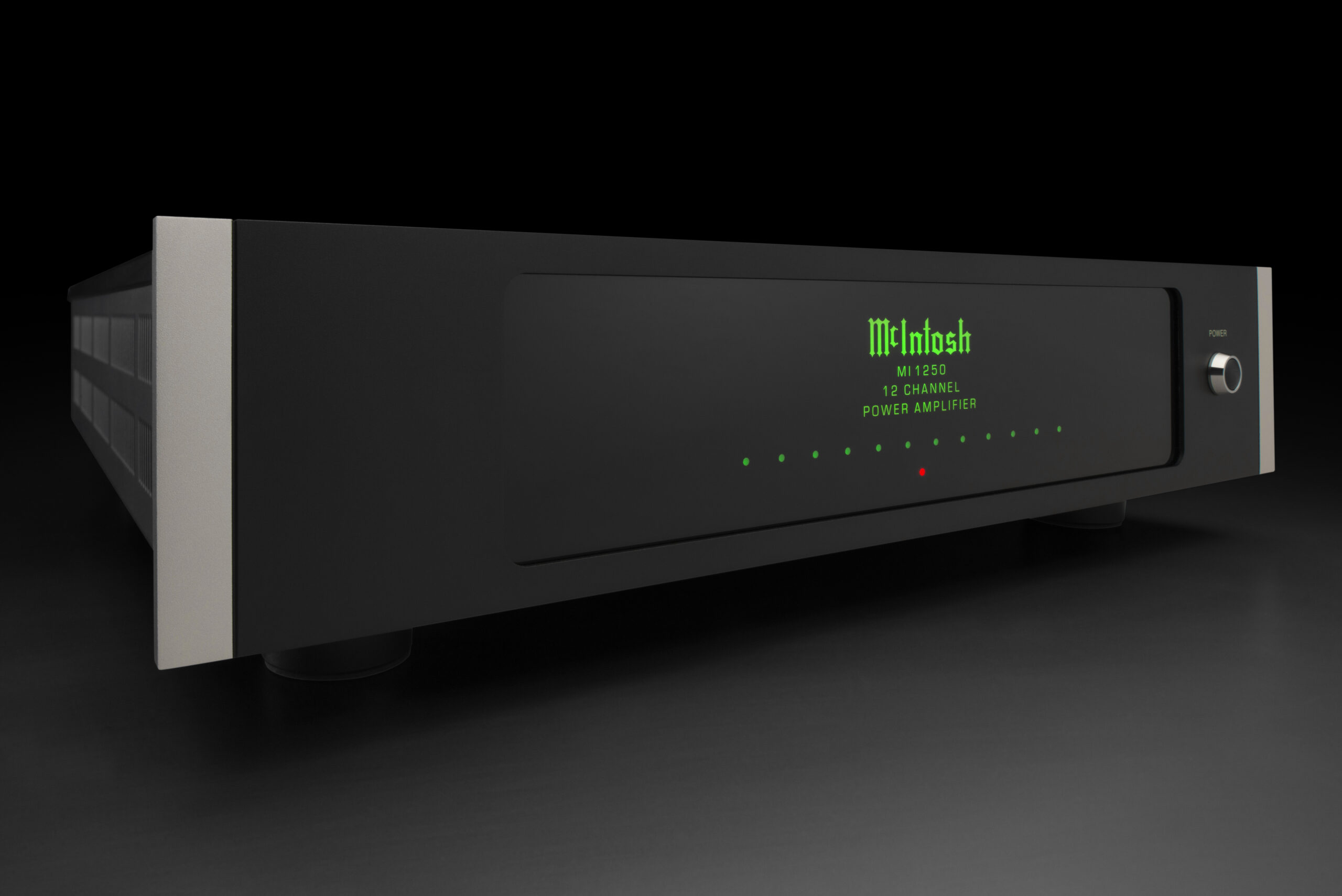

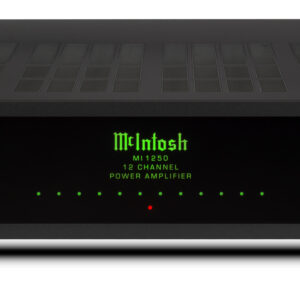

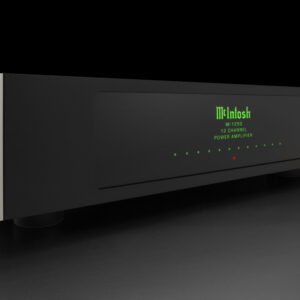

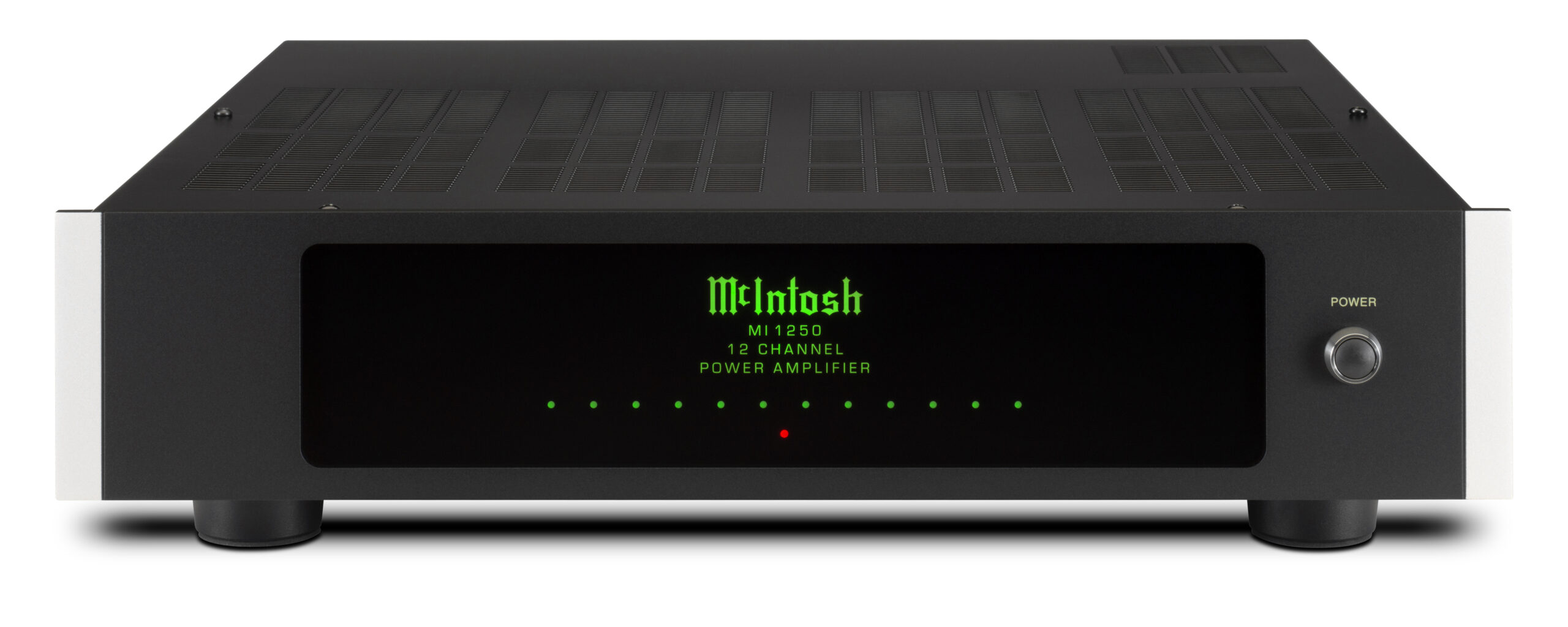

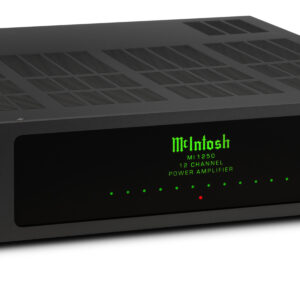

On the front panel, multi-color LED indicators display the status of each channel.

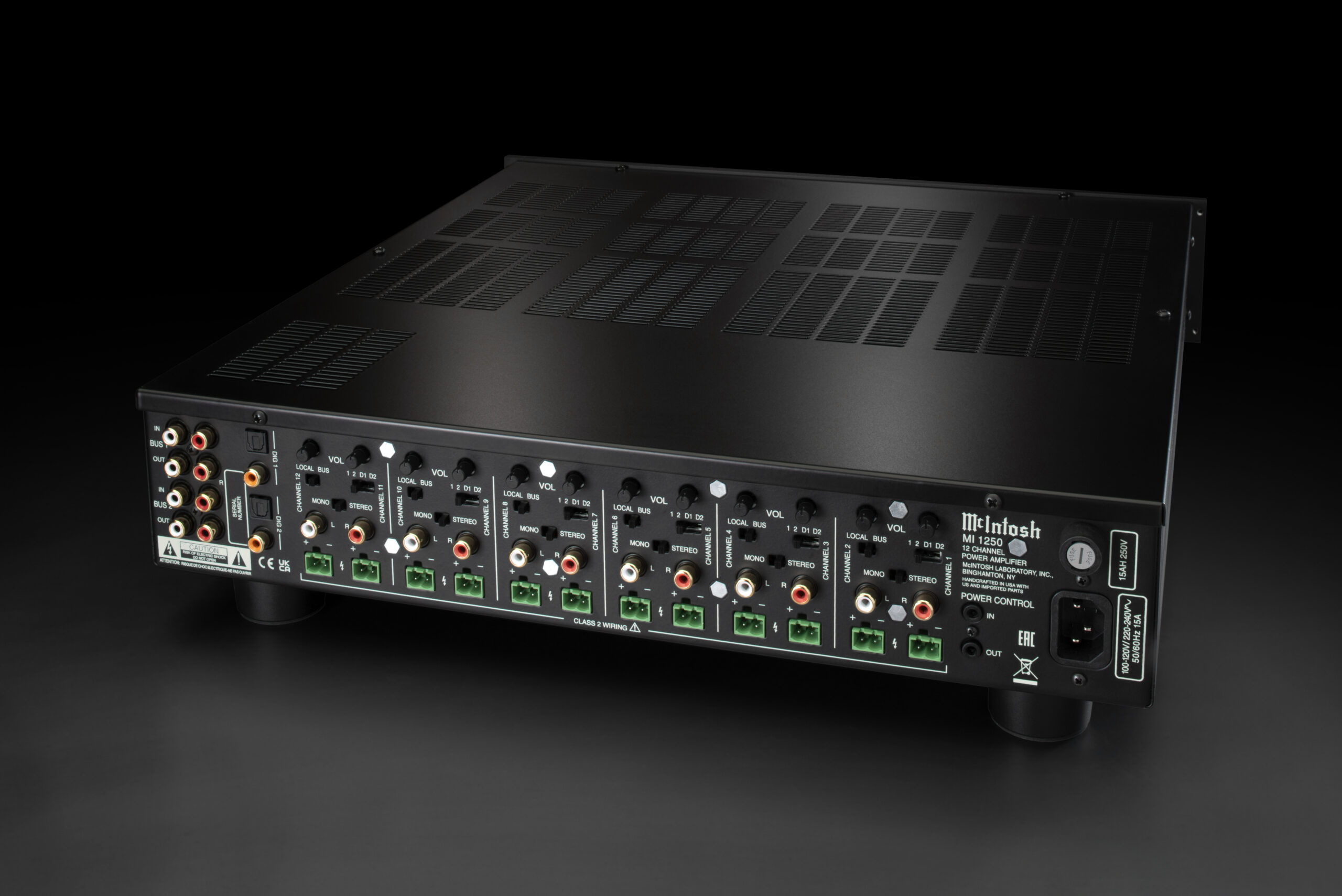

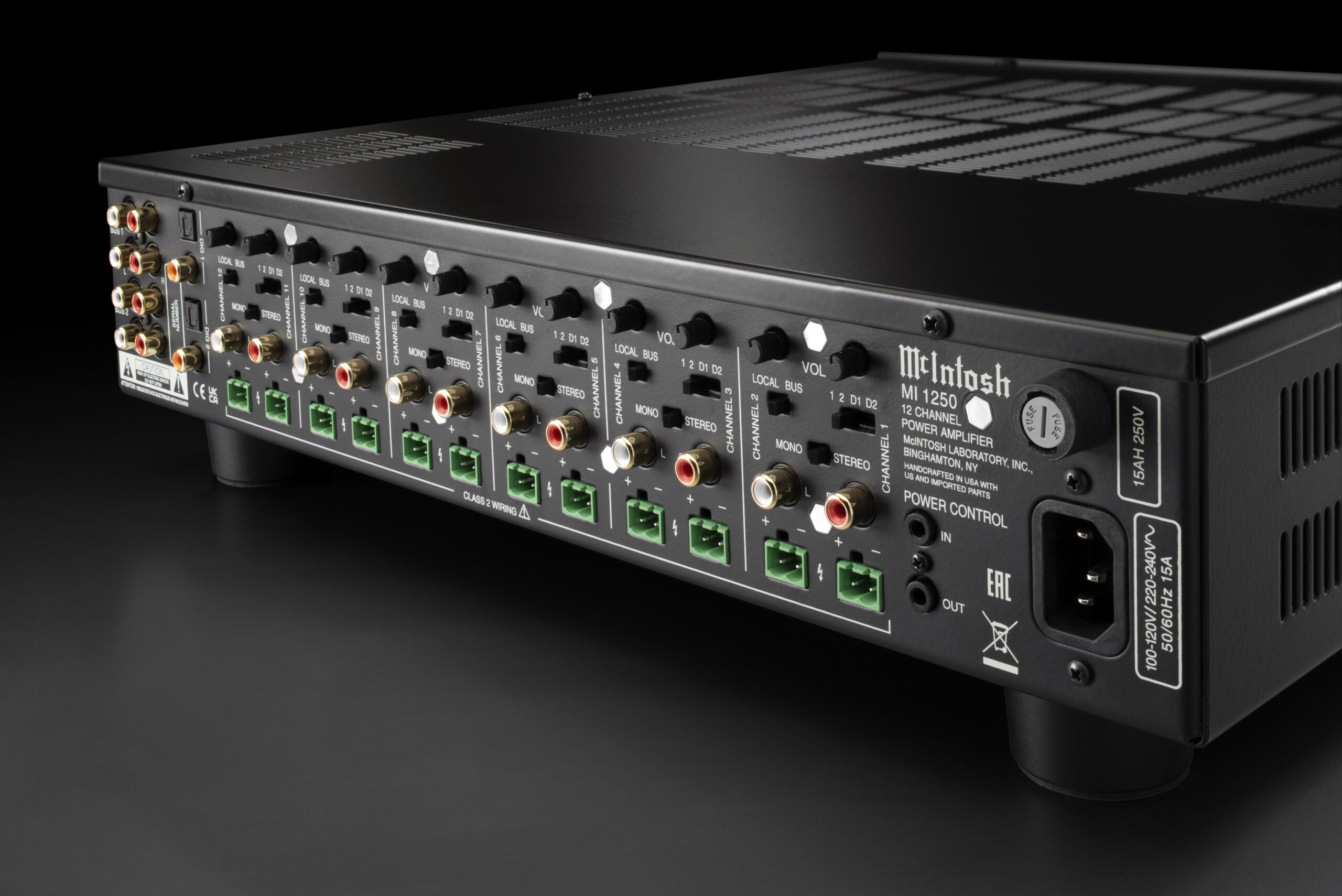

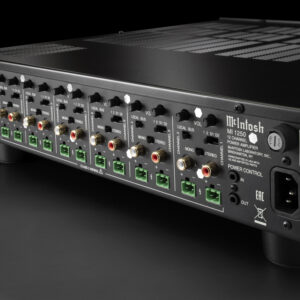

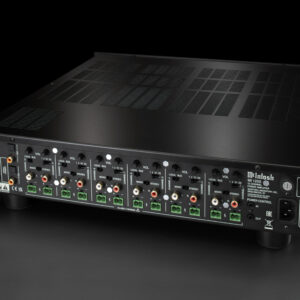

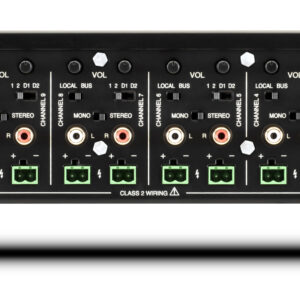

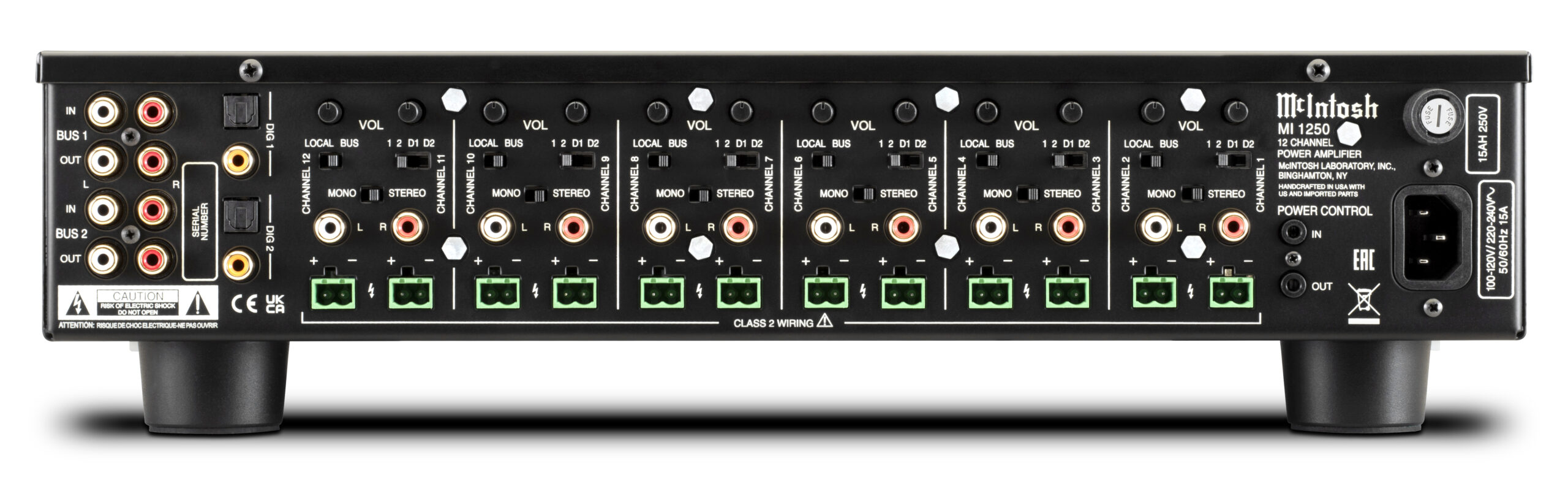

On the back are unbalanced inputs plus 2-pole Phoenix style push-in speaker terminals for each channel. Also located on the back are volume controls for volume balancing, along with 2 digital audio inputs (either coax or optical) that can be bussed, and channel summing circuits for easy mono signal distribution.
Other features included on the MI1250 are:
- Power Guard® signal overload technology that prevents overdriving the speakers.
- Our Sentry Monitor™ short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal.
- BUS input & outputs to easily distribute a stereo signal to multiple outputs and/or multiple amplifiers.
- Individual channel inputs.
- 12 Volt triggering capabilities to automatically turn other connected McIntosh components on and off.
- Eco-friendly on/off signal sensing that turns the unit off if no input signal has been detected for a set amount of time or automatically turns the amp on when it senses a signal.

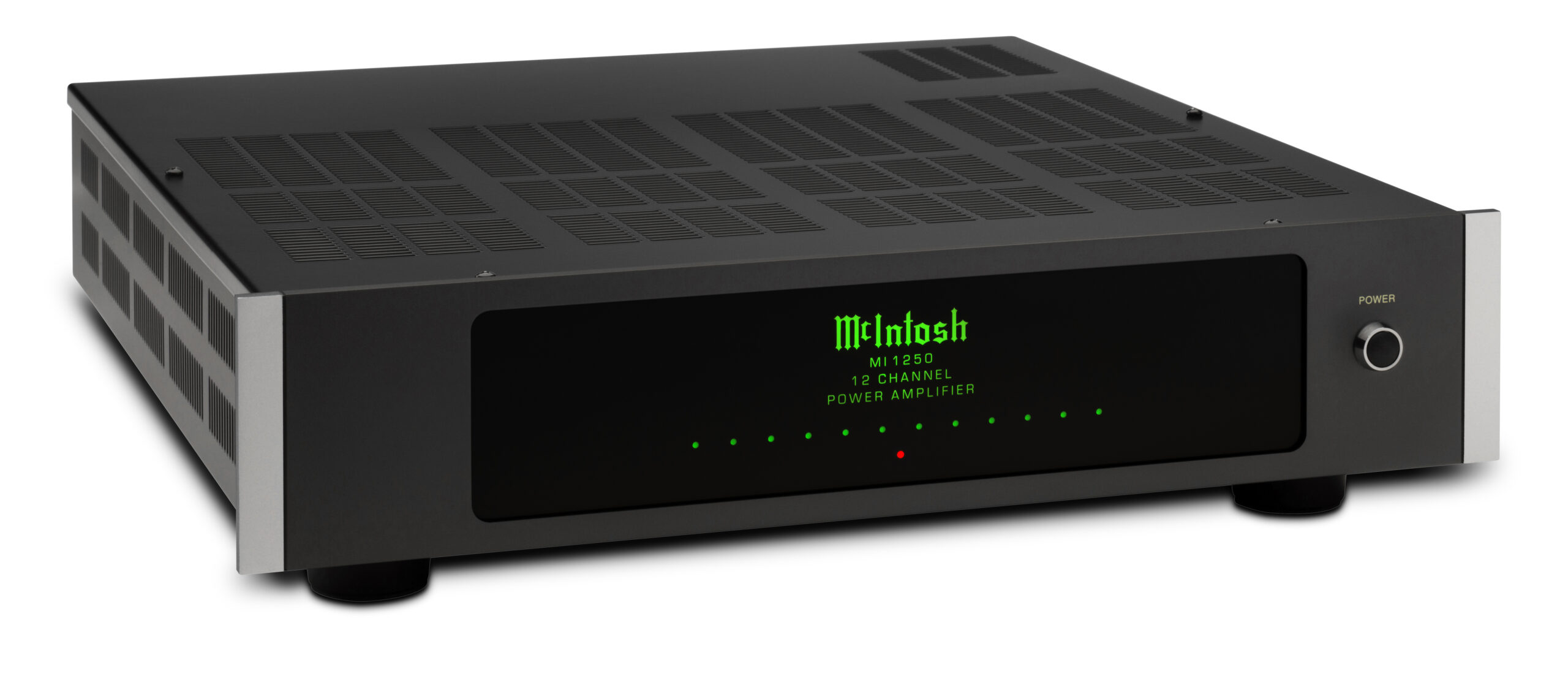

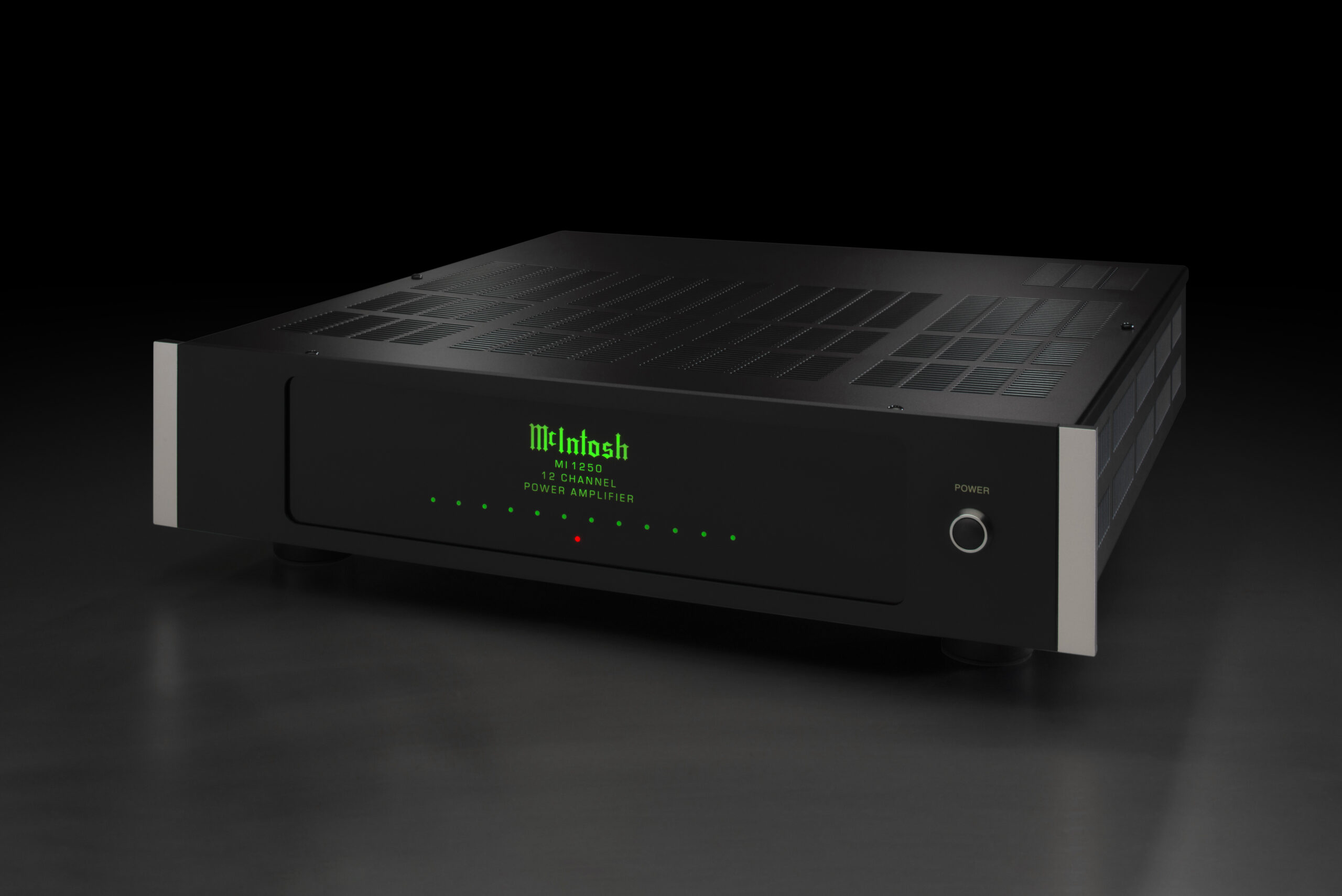

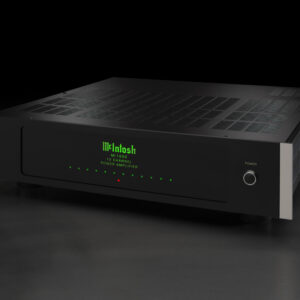

The MI1250 includes many McIntosh design cues including a black glass front panel housing an illuminated McIntosh logo, along with a familiar form factor that is highlighted with silver trim.
-
Electronic Specifications
-
- FTC Power Output Rating
- 50 W
-
- Power Output per Channel
- 50 W into 8 ohms
90 W into 4 ohms
-
- Number of Channels
- 12
-
- Total Harmonic Distortion
- 0.05%
-
- S/N below rated output
- 95dB
-
- Dynamic Headroom
- 8 ohms: 2.1dB
4 ohms: 3.3dB
-
- Damping Factor
- 8 ohms: >65
4 ohms: >32
-
- Rated Power Band
- 20Hz to 20kHz
-
- Frequency Response
- +0, -0.5dB from 20Hz to 20kHz
Control
-
- Remote Power Control
- Yes
-
- Multi-Channel DB25 Cable
- N/A
Connectivity
-
- Speaker Binding Post Type
- 2-pole Phoenix style push-in speaker terminals
General Specifications
-
- Circuit Configuration
- Closed loop digital switching
-
- Circuit Design
- Digital
-
- Mono Bridge
- N/A
-
- Mono Parallel
- N/A
-
- Output Type
- Direct Coupled
-
- Meters
- No
-
- Meter Light Switch
- No
-
- Balanced Input
- 0
-
- Front Panel
- Glass with removable rack mounting ears
-
- Illumination
- Direct LED
-
- Chassis Style
- Black painted steel
-
- BTU Rating
- 900 BTU/h
Weights & Dimensions
-
- Unit Dimensions (W x H x D)
- 17-1/2″ (44.45cm) (19″ (48.3cm with mounting ears)) x 4-5/16″ (11cm) (including feet) x 21″ (53.3cm) (including front panel and cables)
-
- Unit Weight
- 22 lbs (10 kg)
-
- Shipping Weight
- 38.4 lbs (17.4 kg)
-
-
