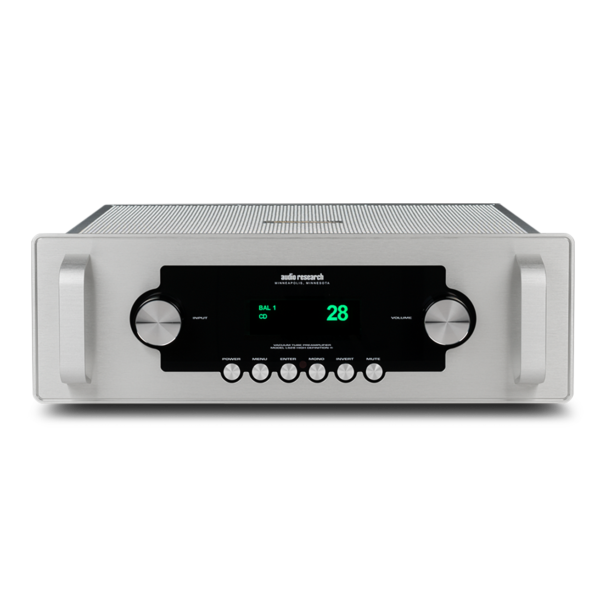

Audio Research LS28SE Vacuum Tube Preamplifier
The LS28 line stage is a flexible and intuitive preamplifier. Four balanced and four single-ended inputs, and two sets of both balanced and single-ended outputs, allow maximum connectivity. The straightforward menu allows control of numerous...Read More

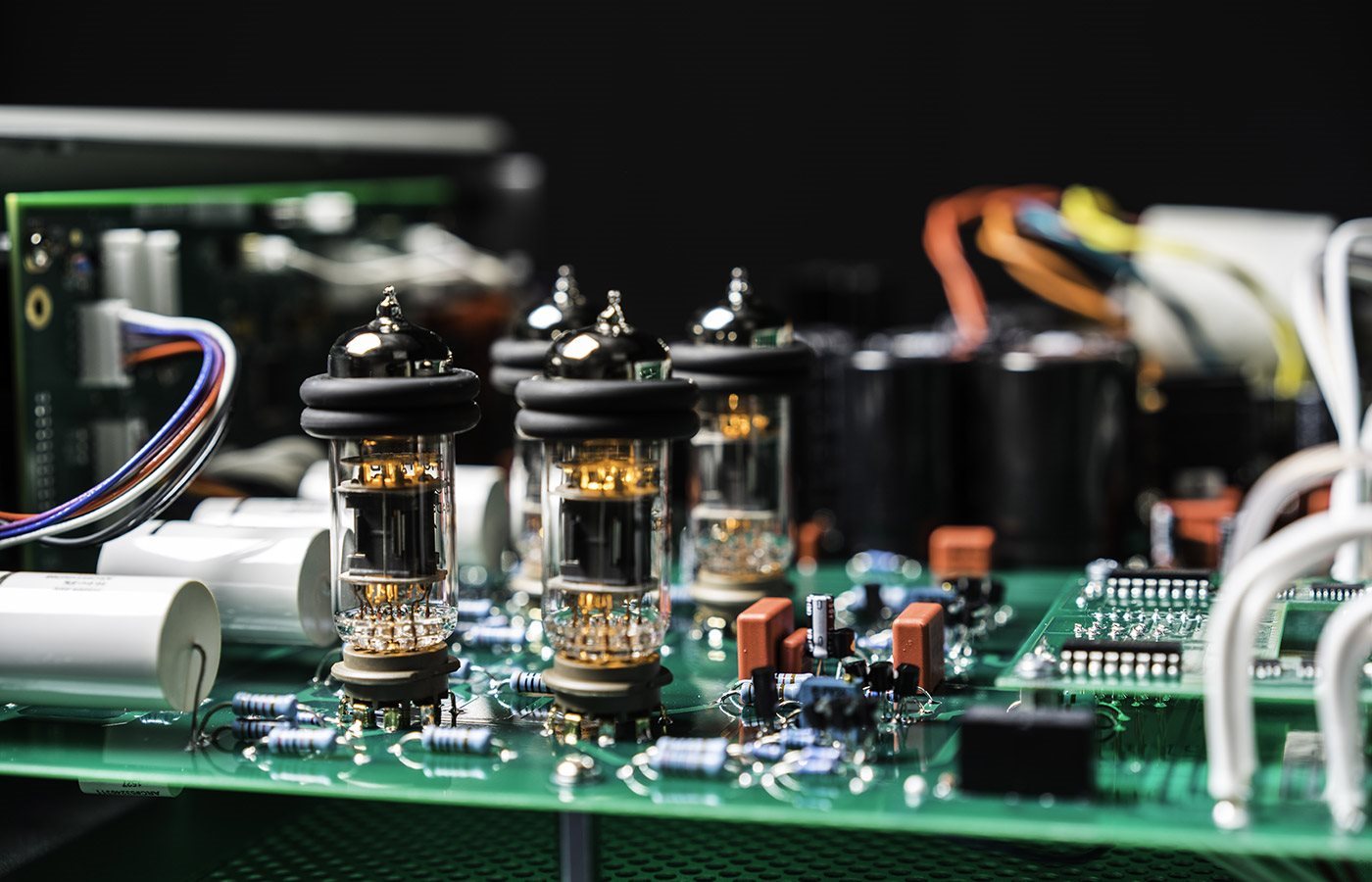

The LS28 line stage is a flexible and intuitive preamplifier. Four balanced and four single-ended inputs, and two sets of both balanced and single-ended outputs, allow maximum connectivity. The straightforward menu allows control of numerous parameters, including input naming, tube hours, auto shutdown, and home theatre passthrough. Phase invert and mono are also standard functions. At the heart of the LS28 are four 6H30 vacuum tubes in the analog circuit. While the LS28 is the perfect match for any Audio Research amplifier, it has been designed to work with nearly any amplifier on the market today.
Series need the ability to provide the full benefit of this new sonic landscape. Increasing the tube count to six in the analog section, and advancements in the power supply improved both macro and micro dynamics and lowered distortion.
Exclusive at: Midland
AUD Inc. GSTContact us to buy
Less than .007% at 2V RMS BAL output.
Less than -100dBv at max volume (103).
Main output: 18.5dB balanced output. (12.5dB SE output.) Record output: 0dB (Processor input: 0dB balanced out).INPUT IMPEDANCE
100K ohms Balanced, 50K ohms SE. 8 Inputs – 4 balanced, 4 single-ended.
600 ohms Balanced, 300 ohms SE Main (2), 20K ohms minimum load and 2000pF maximum capacitance. Outputs (3): 2 Main, 1 Record (XLR and RCA connectors).
16V RMS BAL, 8V RMS SE.
2V RMS (1V RMS SE) into 200K ohm balanced load (maximum balanced output capability is 17V RMS at less than 0.5% THD at 1kHz).
Rotary volume selector (103 steps) and rotary input selector. Push buttons: Power, Menu, Enter, Mono, Invert, MutePOWER SUPPLIES
Electronically regulated low and high voltage supplies. Automatic 45 sec. warm-up/brown-out mute. Line regulation better than .01%.TUBE COMPLEMENT
(4) 6H30P dual triode.POWER REQUIREMENTS
105-125VAC 60Hz (200-250VAC 50/60Hz) 130 watts maximum.
