Logitech Rally Bar Video Conferencing Soundbar
Logitech Rally Bar is the premier video bar for medium to large meeting rooms. Discover remarkably simple, all-in-one video conferencing with built-in AI...
See descriptionLogitech Rally Bar is the premier video bar for medium to large meeting rooms. Discover remarkably simple, all-in-one video conferencing with built-in AI technology, brilliant optics, and powerful audio.
AUD Inc. GST
BEST PRICE GUARANTEE
SPEAK TO OUR TEAM • TEXT US
Free Shipping
Australia wide on orders over $100
or 6 payments of $1136.5 - $1136.5 with zip
Own it now, pay later Learn More
Run supported video conferencing applications – such as Zoom, Microsoft Teams Rooms, and others – directly on the device with no computer or laptop required.
SIMPLE TO USE

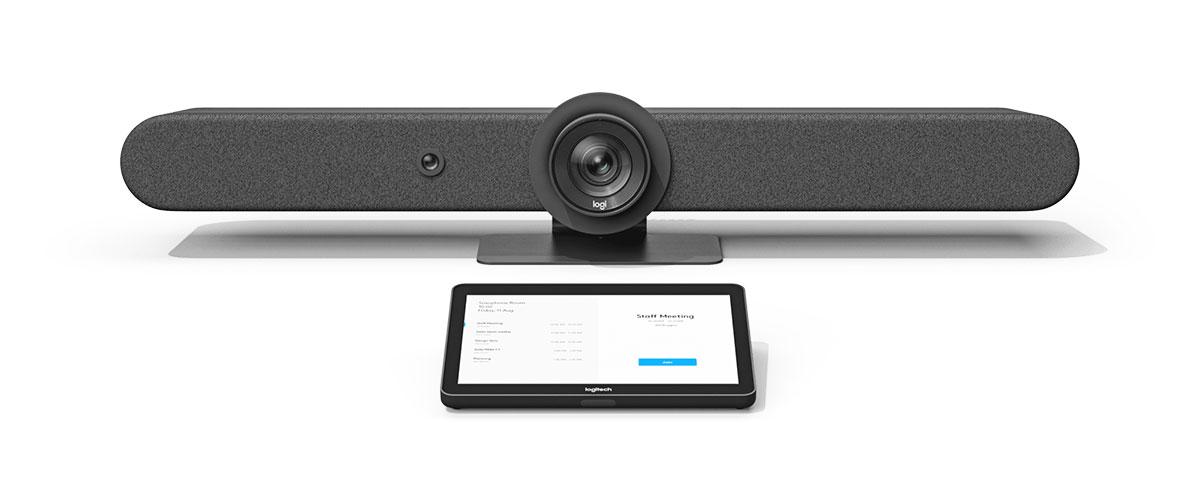

Start your meeting with just one touch, seamlessly connecting Rally Bar to your preconfigured room solution.
*Shown with optional Logitech Tap.
LOOKS BRILLIANT
Upgrade the meeting experience with cinema-quality video, outstanding colour, and exceptional optical accuracy.
STAYS FOCUSED
Using AI, human perception, and motorised PTZ, Rally Bar adapts to meeting dynamics and keeps the camera on the action.

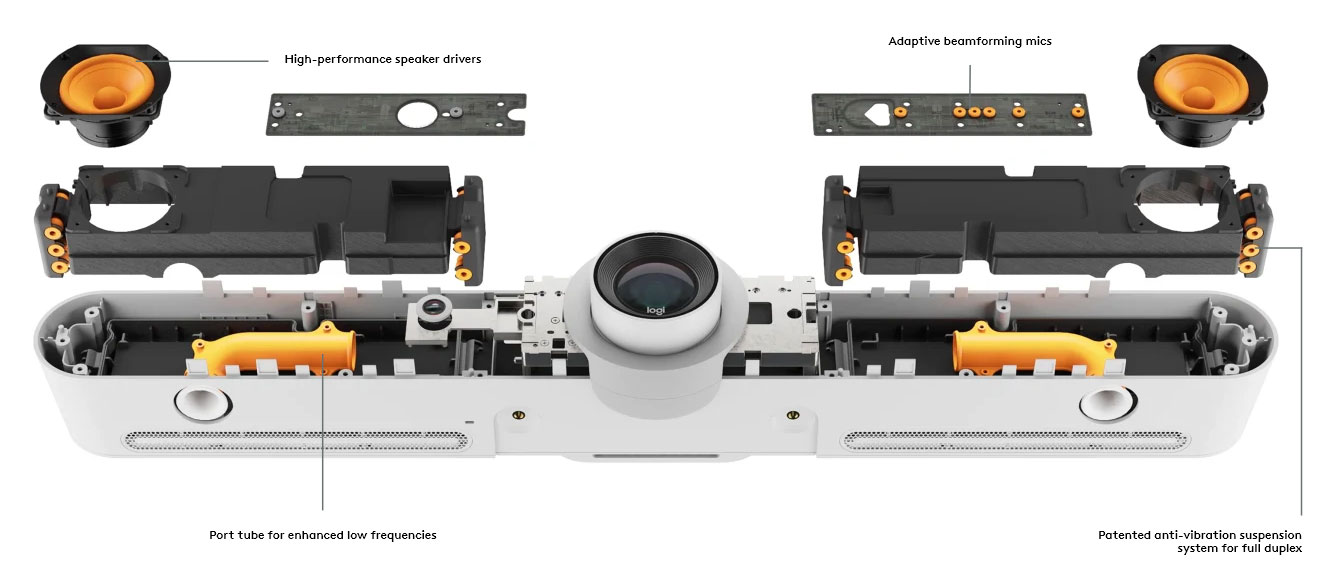

SOUNDS AWESOME
Rally Bar’s advanced audio engineering delivers powerful, room-filling sound and makes sure every voice is clearly heard.
This diagram is not an exact replica of Rally Bar’s interior. The colour is intended to highlight features.
GREAT CONVERSATIONS
START HERE
Auto-level loud and soft voices – while suppressing unwanted noise – with AI-based RightSound™ technology that improves over time.
EXPAND THE CONVERSATION

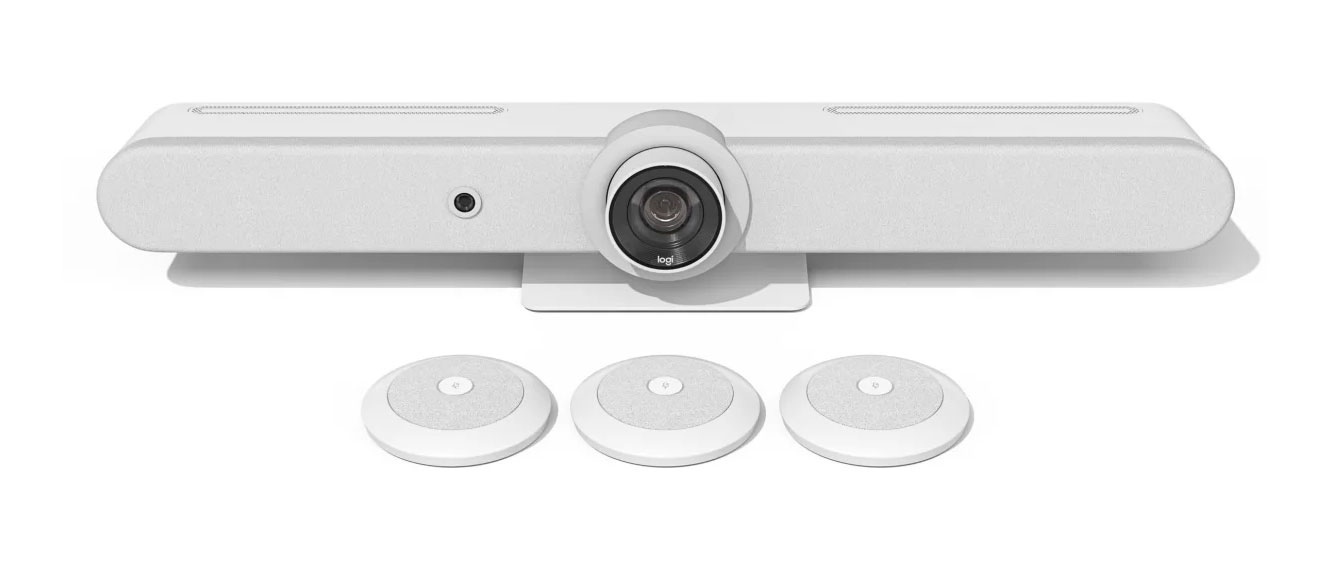

Easily accommodate larger groups and spaces, with a mic pickup range of up to 7 m and the option to extend up to three Rally mic pods (varies by environment).
SUPER SMART

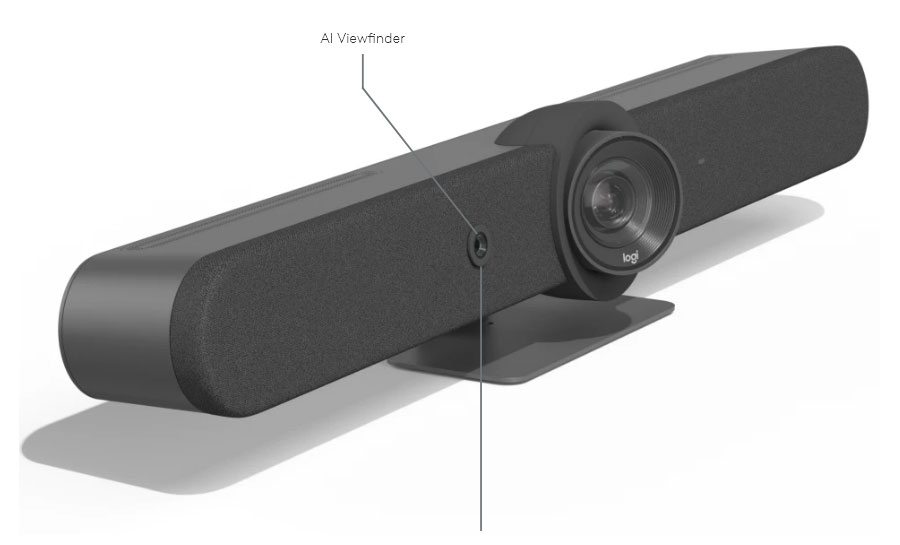

Keep the focus on meeting participants with AI Viewfinder, which uses scene awareness to optimise RightSight auto-framing and camera control.
AI-DRIVEN INSIGHTS
Track room usage data from the Logitech Sync Dashboard, captured by AI Viewfinder’s people count function.
SIMPLE TO MANAGE
Monitor and manage your meeting room devices from one single platform with Logitech Sync. Plus, get business insights into how your rooms are being used.
DEVICE MANAGEMENT TECHNOLOGY PARTNERS
Our integration with partner solutions and dashboards means you can easily manage your devices in other platforms.
REDUCE YOUR CARBON FOOTPRINT
Support remote workers and reduce business travel by replacing in-person meetings with video meetings that are as natural as face-to-face.

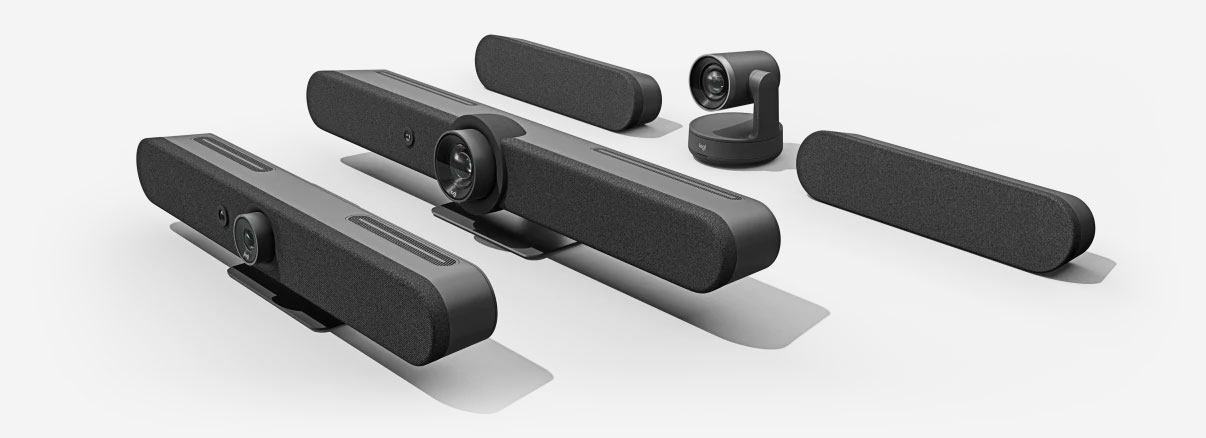

WELCOME TO THE FAMILY
Explore Logitech’s beautifully simple, next generation of small, medium, and large room solutions that can be deployed in PC or appliance mode.
TECHNICAL SPECIFICATIONS
Camera
Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 15X HD zoom (5X optical and 3X digital)
Diagonal field of view (dFoV): 90°
Horizontal Field of View: 82.1°
Vertical Field of View: 52.2°
Total Room Coverage: 132.1° Horizontal x 82.2° Vertical
Speakers
Drivers: 2x 70 mm
Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ metre
Rated Power: 8W
THD: 1kHz < 2% at 1W
Speaker Sampling Rate: 48 kHz
Impedance: 4 Ohms
Microphones
Frequency response: 90Hz – 16kHz
Sensitivity: >-36dBFS +/-1 dB @ 1Pa
Microphone data rate output: 48 kHz
Pickup Range: Up to 7 m
Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression: AI based de-noising algorithm
Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
RightSense™ Technologies
RightLight™: Renders natural skin tones for each participant.
RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview
Interfaces
HDMI Out: 2
HDMI In: 1
USB: 3x Type A, 1x Type C
Network: 10/100/1G Ethernet
WiFi: 802.11a/b/g/n/ac
External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control: Bluetooth® Low Energy
Power & Cables
Power supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 4.74A
Power Supply Dimensions: 127 mm x 51 mm x 30 mm
DC Cable: 1.5 m
AC Cable: 1 m
HDMI 1.4 Cable: 2 m
USB A to USB C 3.0 Cable: 2.2 m
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 70 °C
Humidity: 10 to 95%
BTU/hr: 57 idle, 64 in meeting
Security
Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP
Certifications & Compatibility
For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications
Microsoft Teams Rooms on Android*
Microsoft Teams Rooms on Windows*
* For medium sized rooms
GENERAL SPECIFICATIONS
Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
Device Management: Logitech Sync
Displays Supported: 2
Display Resolution: Up to 1080p
Network Protocol Support: IPv4, IPv6
Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Accessories
Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
Connectivity: Logitech Strong USB (10 m, 25 m, 45 m)
Touch Controller: Logitech Tap and Tap IP*
* Compatibility may vary, see www.logitech.com/support/tap-compatibility for the latest information
DIMENSIONS
Height: 164 mm
Width: 910 mm
Depth: 130.5 mm
Lens Depth: 28.8 mm
Weight: 7.08 kg
In the Box
Rally Bar
Power supply
AC power cord
HDMI cable
USB cable
Remote control
Lens caps for main camera and AI Viewfinder
User documentation
WARRANTY INFORMATION
Standard: 2-year limited hardware warranty included
