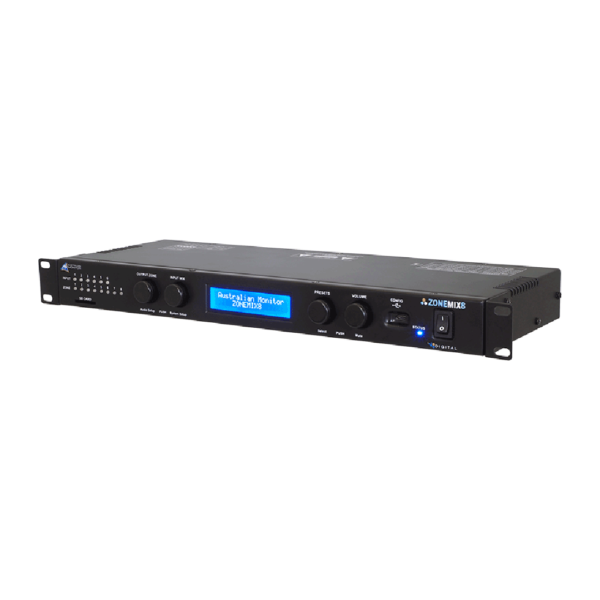

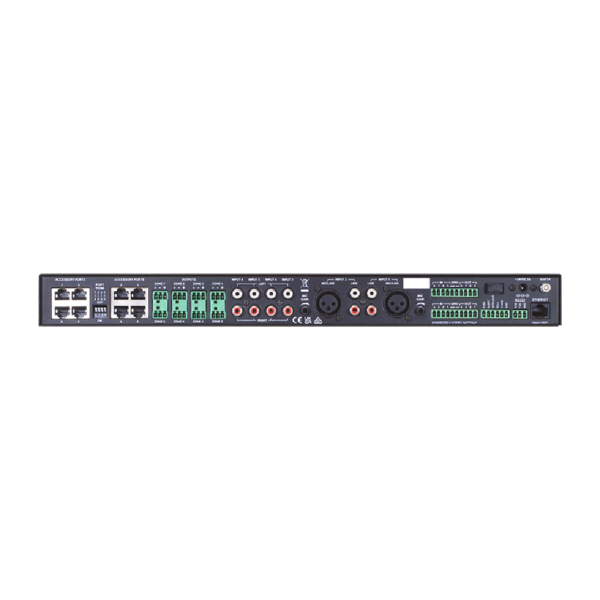

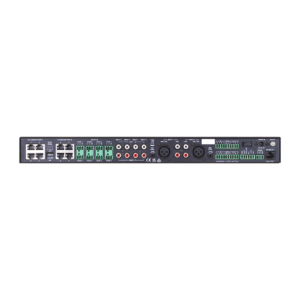

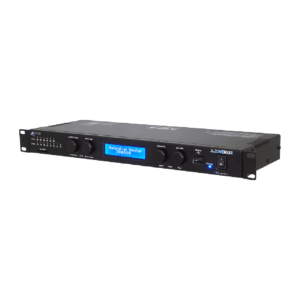

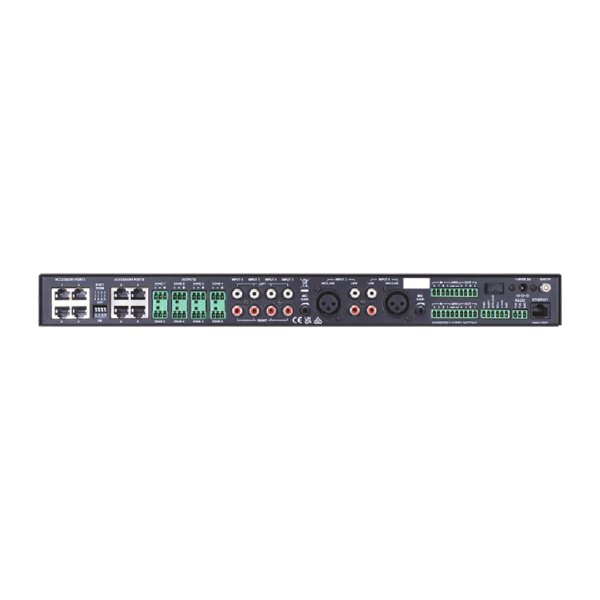

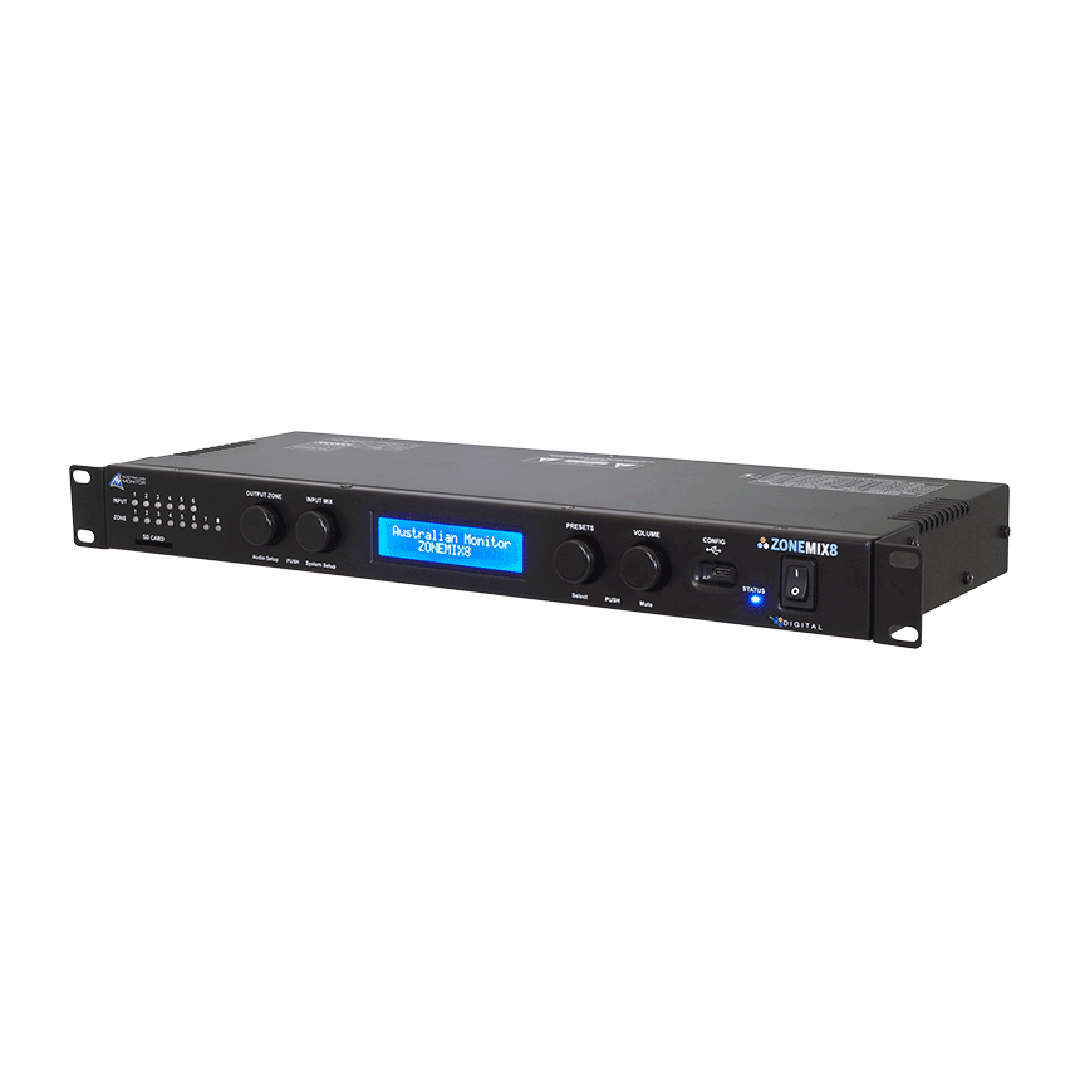

Australian Monitor ZONEMIX8 8 Mono Zone Mixer and Paging System
The ZONEMIX8 provides an 8 zone mixing and paging solution featuring USB, Ethernet and RS232 connectivity. Optional wall panel accessories include 3 controller models, a Bluetooth receiver, and a mic/line level input. The ZMPS paging...
Read MoreThe ZONEMIX8 provides an 8 zone mixing and paging solution featuring USB, Ethernet and RS232 connectivity. Optional wall panel accessories include 3 controller models, a Bluetooth receiver, and a mic/line level input. The ZMPS paging station can also be included, with each ZONEMIX unit supporting up to 16 stations. A PC application allows for setup and control of the ZONEMIX and customisation of the wall panels and paging stations.
$2,300.00
AUD Inc. GST
BEST PRICE GUARANTEE
SPEAK TO OUR TEAM • TEXT US
Free Shipping
Australia wide on orders over $100
or 6 payments of $383.33 with zip
Own it now, pay later Learn More
ZONEMIX8
The ZONEMIX8 provides an 8 zone mixing and paging solution featuring USB, Ethernet and RS232 connectivity. Optional wall panel accessories include 3 controller models, a Bluetooth receiver, and a mic/line level input. The ZMPS paging station can also be included, with each ZONEMIX unit supporting up to 16 stations. A PC application allows for setup and control of the ZONEMIX and customisation of the wall panels and paging stations.
FEATURES
Input/Output Mixing:- 2 mic/line and 4 line inputs to 8 zone outputs
miniDSP
Builtin EVAC, Intruder, Bell and Chime tones
Tone can be customised via SD Card (not supplied)
Custom messages can be stored on the SD Card and triggered via the scheduler, contact closure, ZMPS paging station or wall panels
Multi level priority
Scheduler to trigger global, or zone presets, contract closure outputs, tones and pre-recorded messages.
8 contact closure inputs and outputs
Support for up to 16 ZMPS paging stations
Supports one local audio input per output zone
INPUTS/OUTPUTS
Zone Outputs 8
Output Mode Stereo/Mono
Mic/Line Inputs 2
Line Inputs 4
Local Audio Inputs 8
Paging Stations Up to 16
Wall Panels Up to 16
CONTROL
User Controls Front Panel, Wall Panels
Communication Interface USB-C, Ethernet, RS232
General Purpose I/O 8 in 8 out
Tone Generator 5 Tones
SD Card WAV: PCM, 16 bit, up to 48kHz sample rate
AUDIO PERFORMANCE
Frequency Response 20Hz -20kHz
THD <0.01% SNR >100dBA
MECHANICAL
Dimensions (W x D x H) 484 x 160 x 44.5mm
Weight 2.4 kg
Unit Height 1RU
Input Voltage 24VDC
Power Consumption 8W
