Blustream C44-KIT Contractor 4×4 HDBaseT™ Matrix Kit

Blustream’s C44-Kit 4×4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The C44-KIT is a 4K HDCP 2.2 Matrix package, delivering HDMI, Bi-directional IR and PoH (PoE) up to lengths of...

Read More

Blustream’s C44-Kit 4×4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The C44-KIT is a 4K HDCP 2.2 Matrix package, delivering HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1 and a web browser interface module for control and configuration of the matrix. The C44-KIT is supplied with 4 x HEX70B Receivers.

$3,399.00

AUD Inc. GST

In Stock
QTY

Key Features

Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency

Features 4x HDMI inputs which can be independently routed to 4x HDBaseT™ outputs

Output 1 features simultaneous HDMI and HDBaseT™ output

Extends HDMI up to a distance of 70m over single CAT cable

Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

Supports 3D signal display

Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

Web interface module for control and configuration of Matrix

Supports bi-directional IR on all HDBaseT outputs

Supplied with Blustream IR receivers and emitters

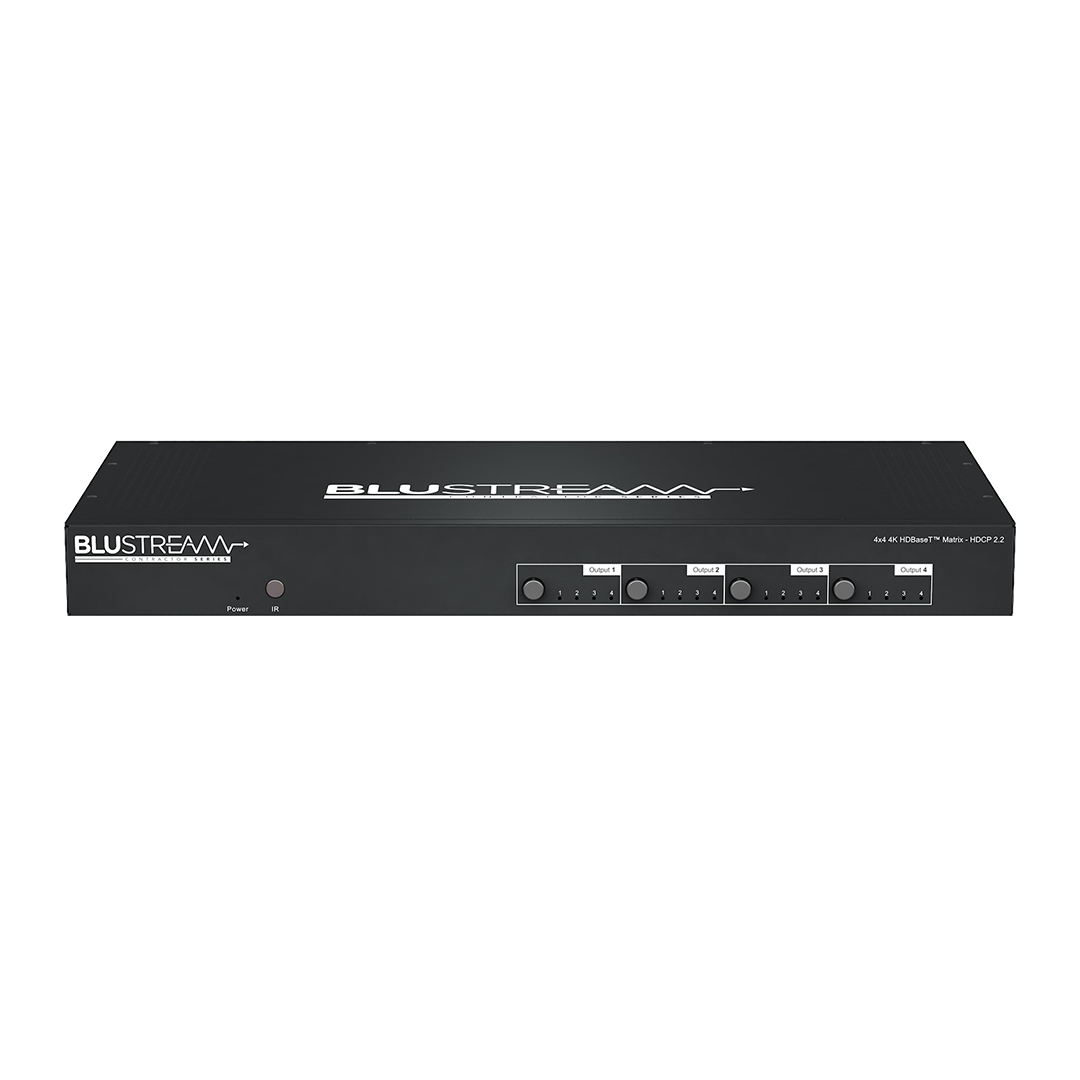

Control via front panel, IR, RS-232 and TCP/IP

Supports PoH (Power over HDBaseT™) to supplied HDBaseT™ receivers

3rd Party drivers available for all major home control brands

1U Design for 19″ rack mount integration – mounting kit included

Advanced EDID management

HDCP 2.2 compliant

Supplied with 4x HEX70B-RX receivers

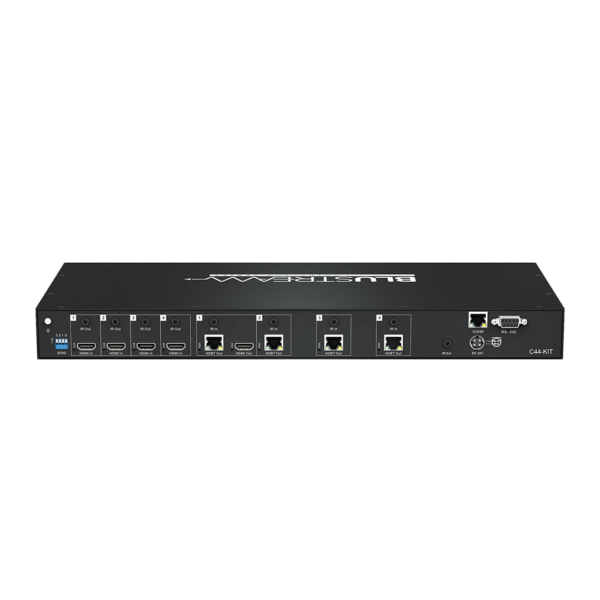

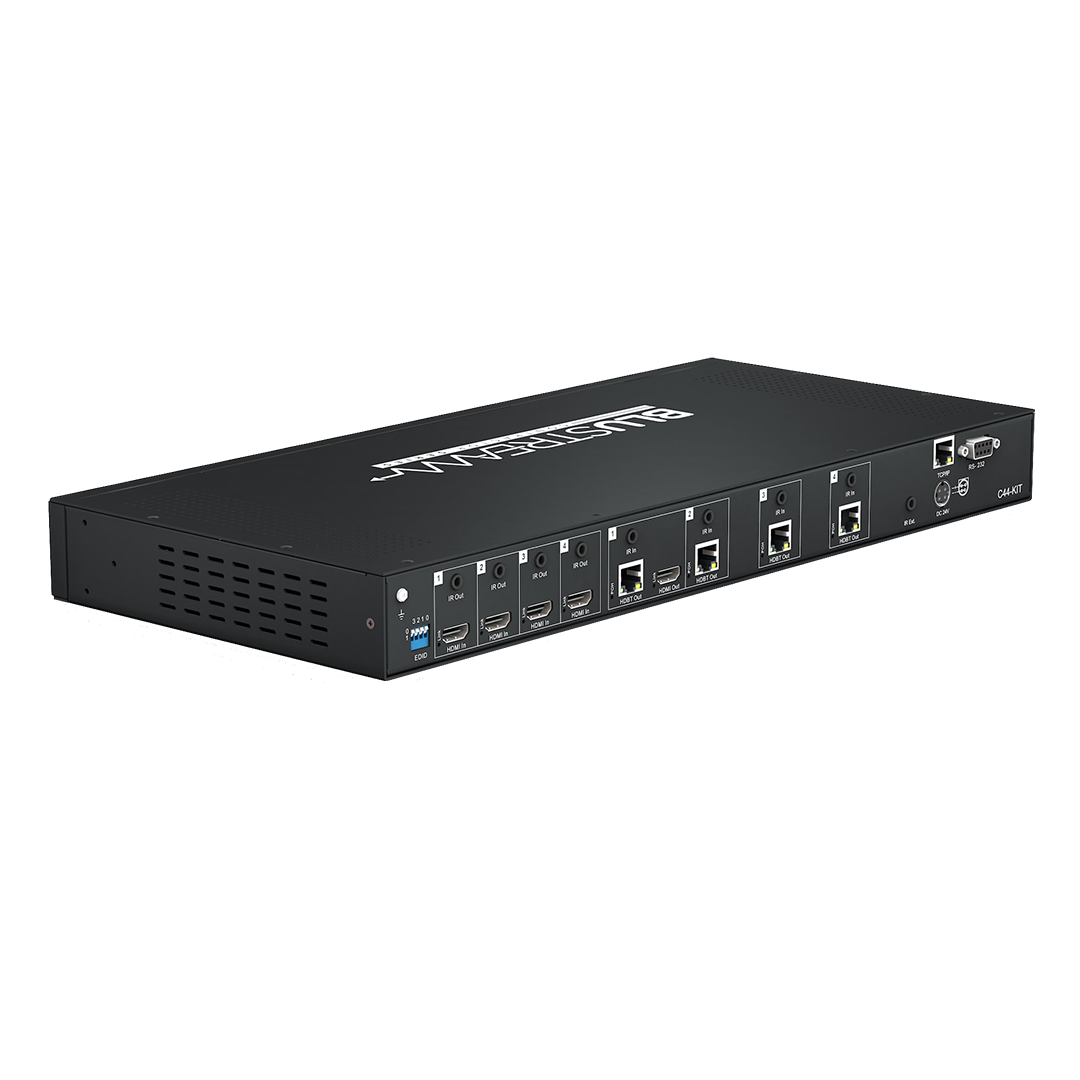

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1x HDMI Type A, 19-pin, female, 4x HDBaseT™ RJ45 connector
  • RS-232 serial port: 1x DB-9, female
  • TCP/IP Control: 1x RJ45, female
  • IR Input ports: 5x 3.5mm stereo jack
  • IR Output ports: 4x 3.5mm mono jack
  • Rack-Mountable: 1 U rack height, rack ears included
  • Case Dimensions (without feet) (W x D x H): 440mm x 202mm x 44mm
  • Dimensions (W x D x H): 440mm x 212mm x 52mm
  • Shipping Weight: 2.7kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 1x 24V/3.5A DC

Box Content

1 x C44 matrix
4 x HEX70B-RX receivers
1 x Rack mounting kit
4 x Mounting kit for HEX70B-RX
1 x 24V/3.5A power supply
1 x IR remote control
4 x IR emitters
5 x IR receivers
1 x Quick Reference Guide
