Key Features
Features 4x HDMI inputs which can be independently routed to 2x HDMI outputs
Supports HDMI2.0 18Gbps specification including HDR
Supports up to 4K UHD 60Hz 4:4:4
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently

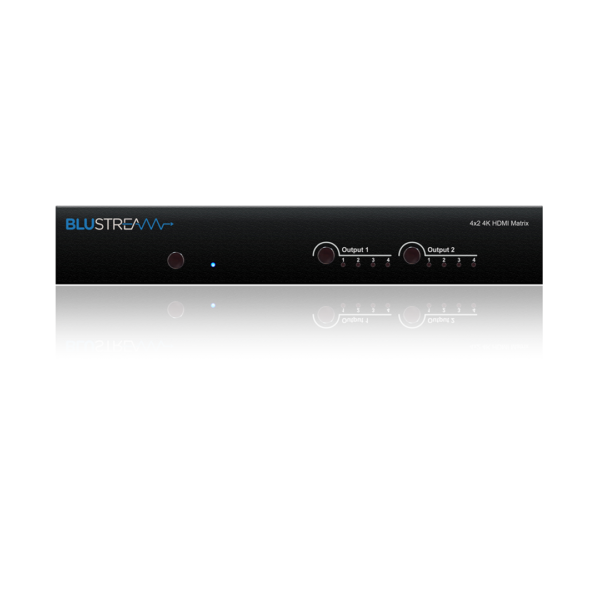

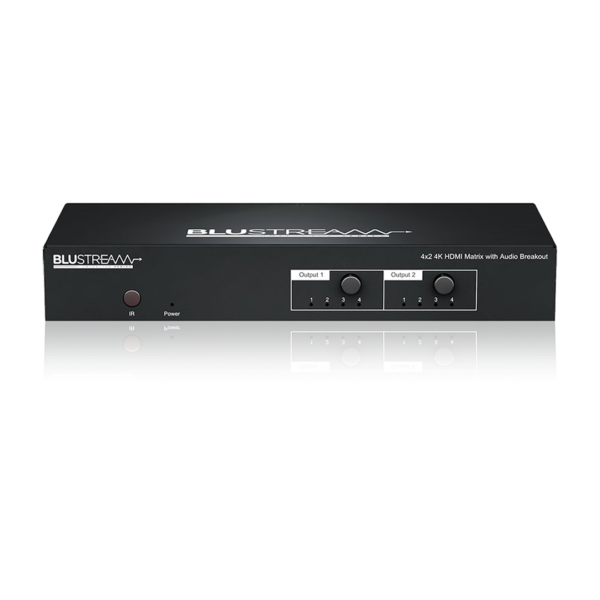

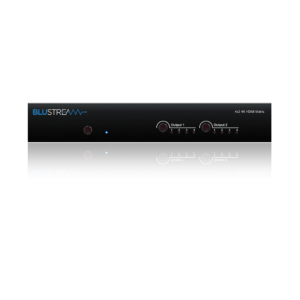

Control via front panel, IR and RS-232
IR routing
Supplied with Blustream 5V IR receivers and emitters
3rd Party drivers available for all major home control brands
Advanced EDID management
HDCP2.2 compliant

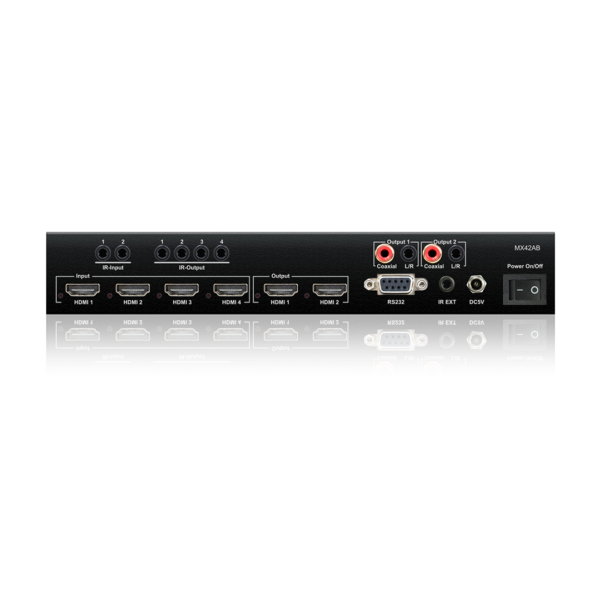

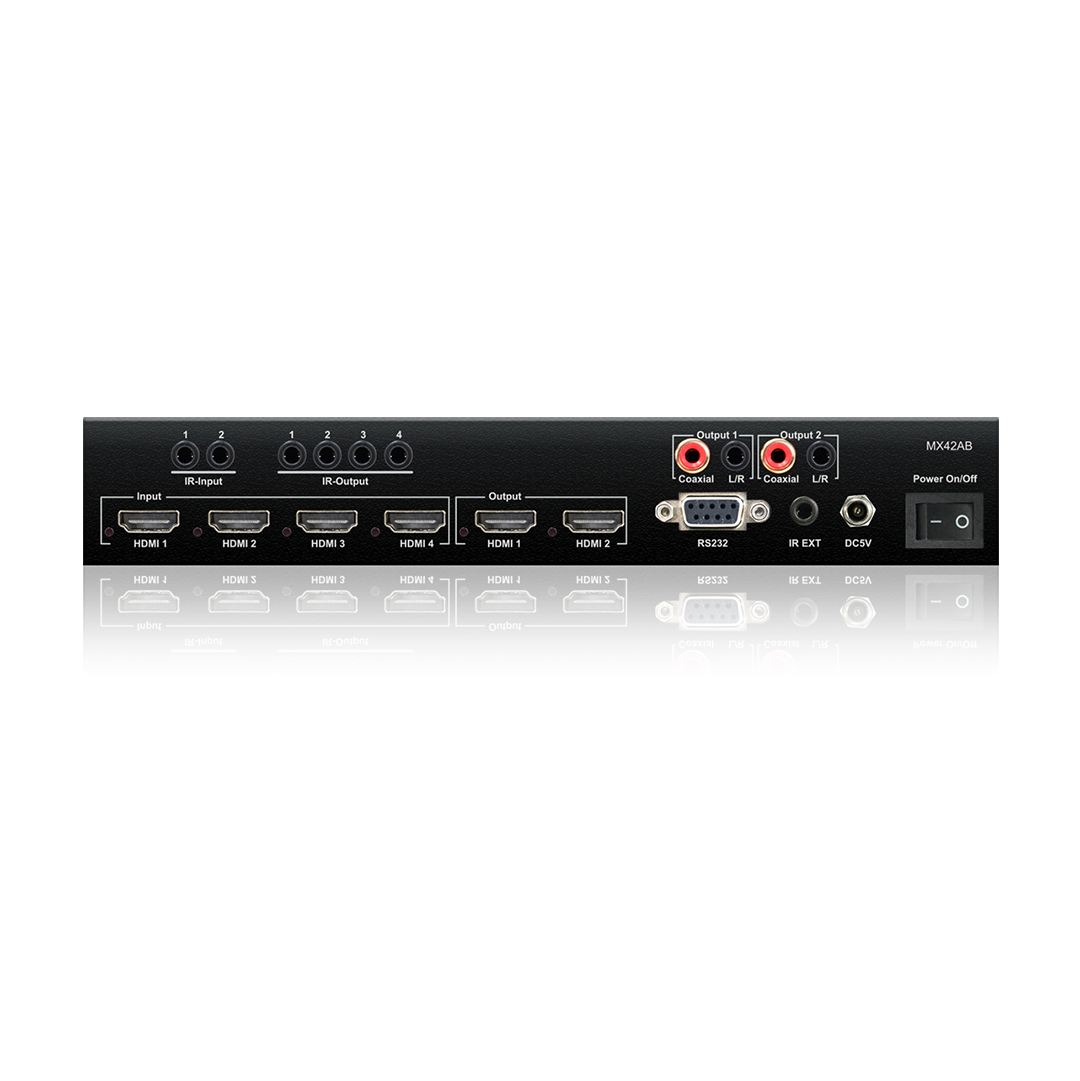

Video Input Connectors:
4x HDMI Type A, 19-pin, female, locking
Video Output Connectors:
2x HDMI Type A, 19-pin, female, locking
Audio Output Connectors:
2x RCA (S/PDIF), 2x Analogue audio L/R (3.5mm stereo Jack)
RS-232 serial port:
DB-9, female
IR Input ports:
3x 3.5mm stereo jack
IR Output ports:
4x 3.5mm mono jack
Unit Dimensions (WxDxH):
255mm x 104mm x 40mm (without feet or connections)
Unit Dimensions (WxDxH):
255mm x 115mm x 47mm (with feet and connections)
Shipping Weight:
1.6kg
Operating Temperature:
32°F to 104°F (0°C to 40°C)
Storage Temperature :
-4°F to 140°F (-20°C to 60°C)
Power Supply:
12V/2A DC
Box Contents
1 x CMX44AB matrix
1 x 12V/2A DC power supply
1 x Remote control
4 x IR emitter
3 x IR receiver
1 x Mounting kit
1 x Quick Reference Guide
