Switcher can function in 2 modes:-
– Splitter mode – Both HDMI output 1 & HDBaseT™ output 2 display the same selected input.
– Matrix Switcher mode – HDMI inputs are independently switchable to HDMI output 1 & HDBaseT™ output 2. HDMI output 1 has access to HDBaseT™ input + HDMI inputs 1-4 ONLY (HDMI signal pass-through including 4K resolution), whilst HDBaseT™ output 2 has access to all HDMI, HDBaseT™ and analogue video inputs with associated audio.
HDBaseT™ output (output 2) for distribution of video sources up to 100m (4K up to 70m) with bi-directional IR, RS-232, LAN serving and EDID management.
HDBaseT™ input for integration of remote HDMI sources up to 100m distance (4K up to 70m) with bi-directional IR and LAN serving
Built-in video scaling, both up-scaling (maximum of 1080p) and down-scaling capabilities (including 4K to lower resolutions).
Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K.
Scaled video output resolutions include 720p, 1080P, 1280×1024, 1024×768, 1360×768, 1440,900, 1680×1050
Audio embedding – independent analogue L/R audio input can be embedded to HDMI/HDBaseT™ outputs + analogue L/R audio and Coaxial digital outputs concurrently (feature available on HDMI/HDBaseT™ outputs 1+2 in Splitter mode and HDBaseT™ output 2 only in Matrix Switcher mode).
HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 when in Matrix Switcher mode)
Volume control of HDMI, line-level analogue L/R audio and Coaxial digital outputs
PoH to compatible Blustream Transmitters & Receivers (local power required when using HEX100ARC-RX)
Supports all known HDMI audio formats on HDMI pass-through, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission

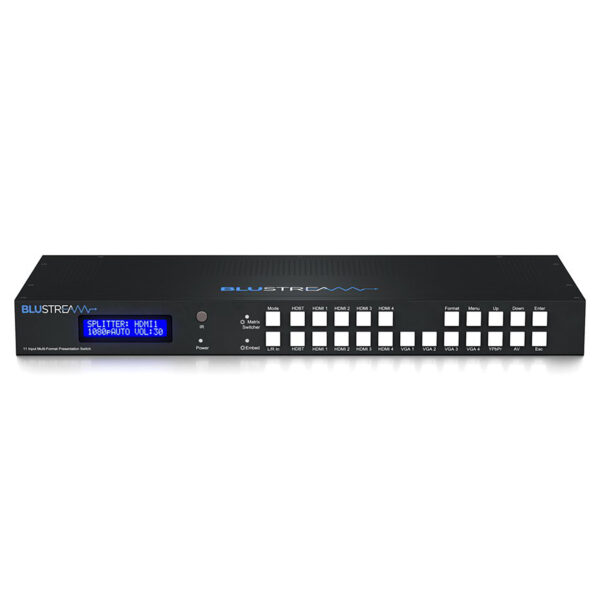

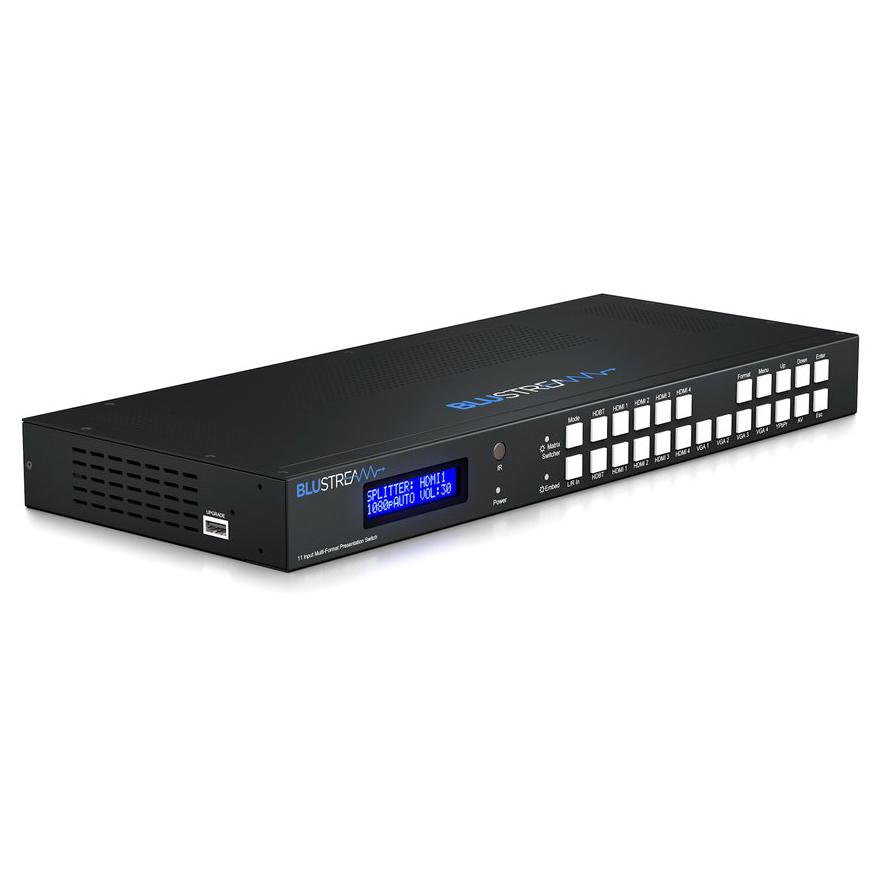

Front panel display for status feedback
Control via front panel, IR, RS-232 and TCP/IP
3rd Party drivers available for all major home control brands
Advanced EDID management
