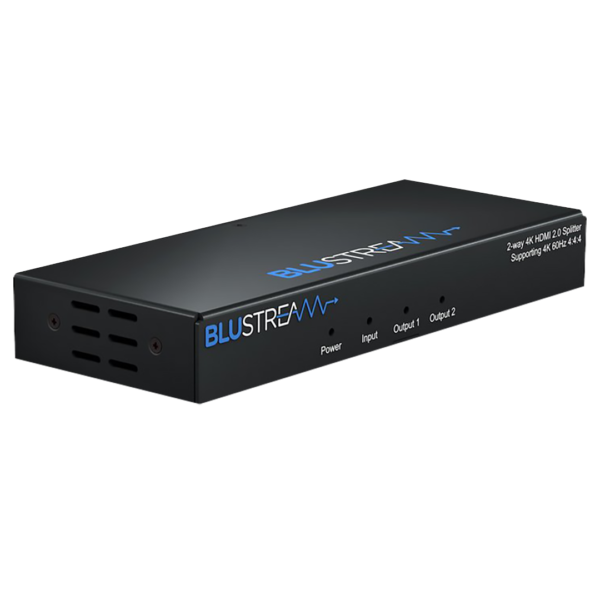

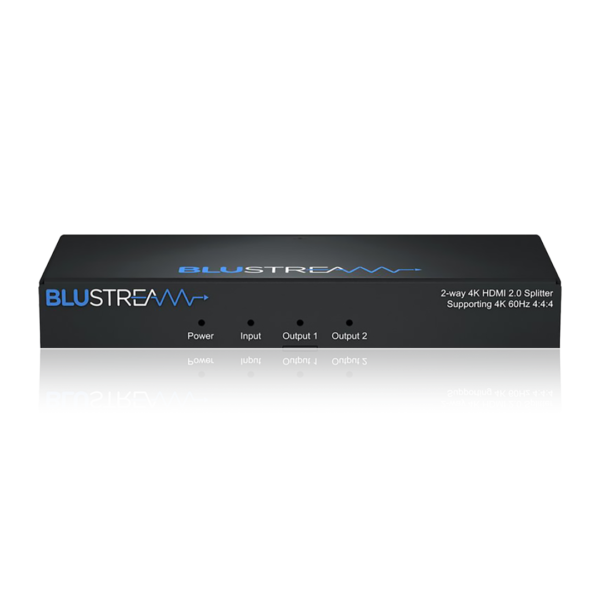

Blustream SP12AB-V2 2-Way 4K HDMI splitter with Audio Breakout

The Blustream SP12AB 4K UHD HDMI splitter distributes a single HDMI source to two simultaneous outputs. The unit transmits all HDMI resolutions up to and including 4K UHD. The 2-way splitter also includes the advanced features...

Read More

The Blustream SP12AB 4K UHD HDMI splitter distributes a single HDMI source to two simultaneous outputs. The unit transmits all HDMI resolutions up to and including 4K UHD. The 2-way splitter also includes the advanced features of audio breakout and EDID management.

$209.00

AUD Inc. GST

In Stock
QTY

Key Features

Features 1x HDMI input that is replicated to 2x HDMI outputs

Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

Supports 3D signal display

Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

HDMI audio de-embedded to analogue L/R audio and coaxial digital outputs concurrently

Advanced EDID management

HDCP compliant

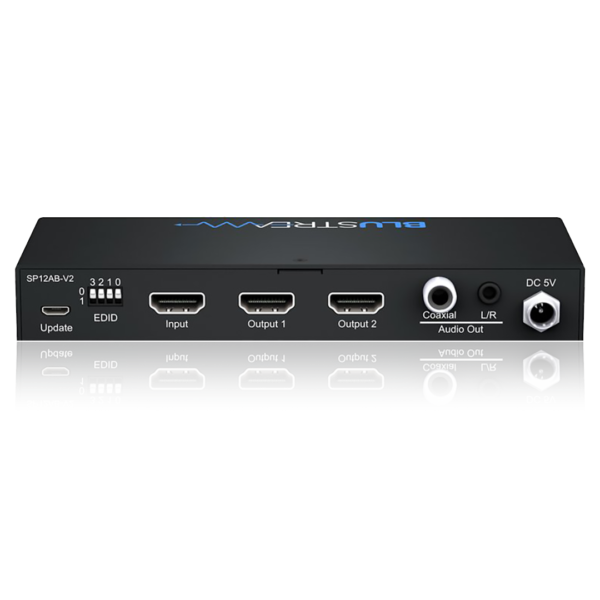

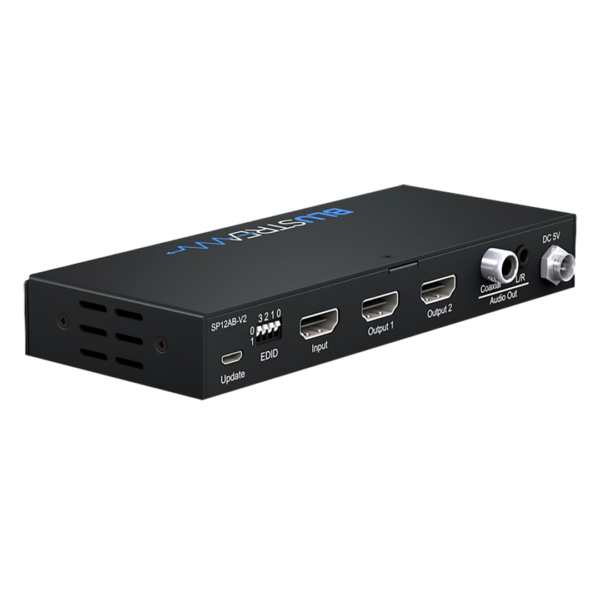

  • Video Input Connectors: 1x HDMI Type A, 19-pin, female
  • Video Output Connectors: 2x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1x RCA (SPDIF), 1x 3.5mm stereo jack (L/R)
  • EDID Management: 4-pin DIP switch
  • Mounting kit included
  • Product Dimensions (WxDxH): 115 x 70 x 25mm (with connections)
  • Product Dimensions (WxDxH): 115 x 65 x 25mm (without connections)
  • Product Weight: 0.2kg (excluding accessories)
  • Carton / Box Dimensions (WxDxH): 165 x 110 x 90mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V / 1A DC, screw type connector
