Overview
Multi-channel flexibility
Few A/V Preamplifier-Processors offer the innovation and performance found in the all new AVM 60. Features include Dolby Atmos & DTS:X immersive audio decoding, support for UHD Blu-ray and 4K60 through HDMI 2.0a with HDR. HDCP 2.2 and 18.2 Gbps are also included allowing switching for compatibility with the latest video formats.
Audiophile-friendly features include a toroidal power supply, premium differential-output D/A converters with 32-bit conversion and sampling rate optimized filters for hi-res sound. Premium A/D converters with 106 dB signal to noise ratio ensure the highest- quality sound when using analog sources.
DTS Play-Fi offers easy-to-use music playback from popular streaming services and locally networked sources, controlled through iOS, Android or PC apps.
AVM60 Features
All Your Music, At Your Fingertips
The whole family can now access personal digital audio libraries from anywhere in your home with the touch of a screen. Take advantage of endless choices from online music streaming services*. Stream from any device, Android or iOS mobile or PC, with a wide range of connectivity options for today and tomorrow.
* Some of the music services listed below may not be available in your region. All logos are property of their respective owner(s).
-
HDMI & Video
- HDMI 2.0a
- HDCP 2.2
- 4:4:4 Subsampling at 4K60 (18.2 Gbps)
- High Dynamic Range (HDR)
- BT.2020 Color Gamut
- On-Screen Display with 4K 50/60
- 4K 50/60 Switching
Advanced Features
- FM Tuner
- Low Standby Mode power consumption
- Remote control app for iOS (Apple) and Android (coming soon!)
Decoding
- Dolby TrueHD
- DTS-HD Master Audio
Listening Modes
- AnthemLogic – (11.2 channels)
- Dolby Surround
- DTS Neo:6 – Cinema, Music
- All-Channels – All-Speaker Stereo

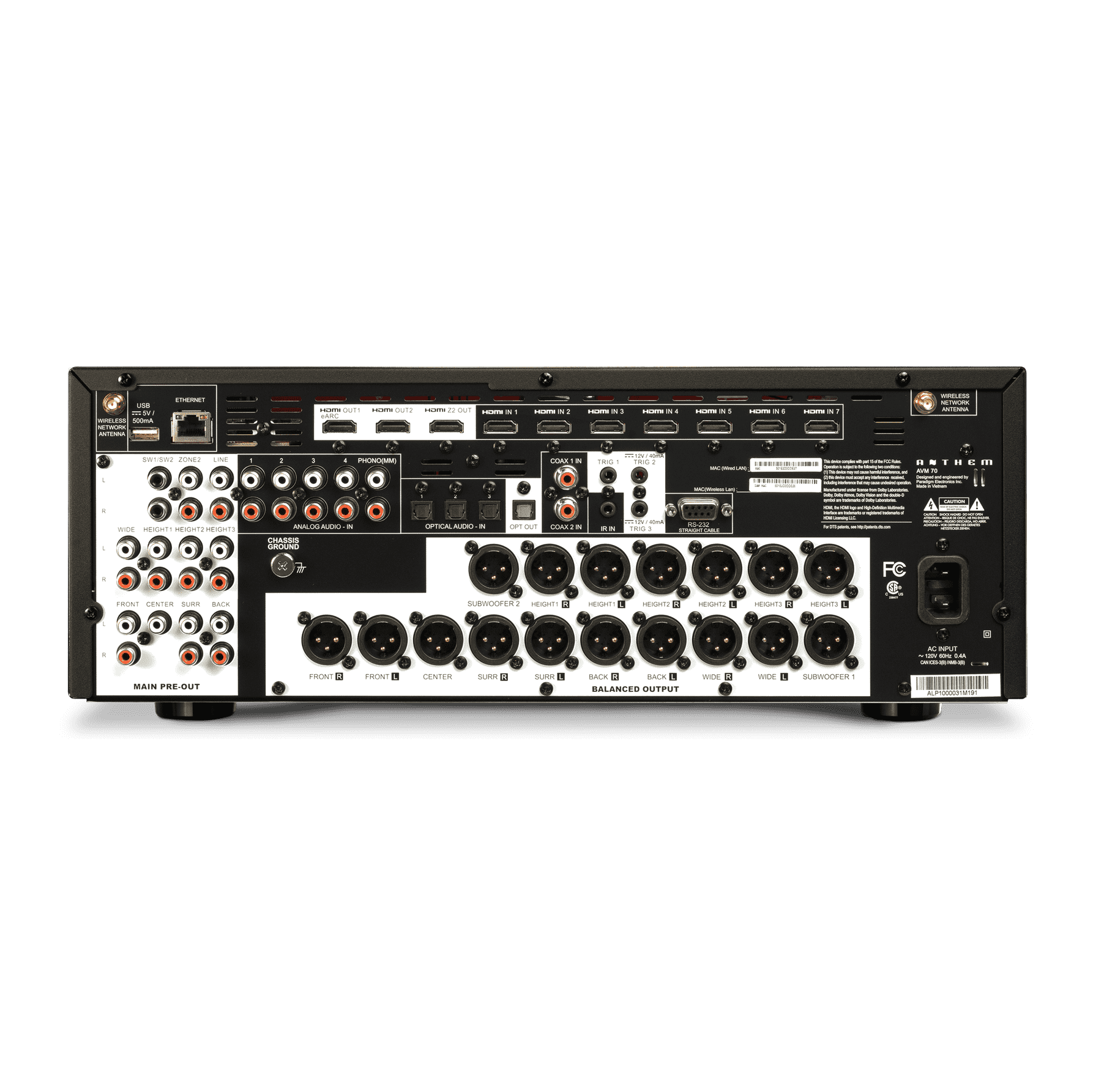

Inputs
- 8 HDMI inputs (7 rear and 1 front-panel input)
- Digital Audio Inputs: 2 Coaxial + 3 Optical
- 5 Stereo Analog RCA Inputs
- HDMI On-Screen Display – setup, video adjustments, status, song/artist info from radio stations
- MHL Supported Inputs
- xvYCC, Adobe RGB, Adobe YCC601, sYCC601, Deep color
- 2 Parallel Outputs
- Consumer Electronic Control (CEC)
- Audio Return Channel
- Standby Pass-through
Custom Installation
- IR Control
- RS-232 Control
- IR Input (Configurable)
- 12V Trigger Output
- Control System Drivers
Additional Features
- Backlit Remote Control
- Sidemount Rack Kit (sold separately)
