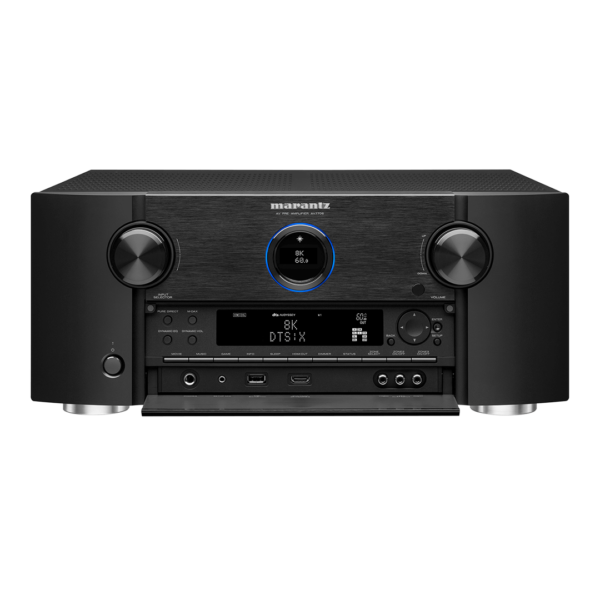

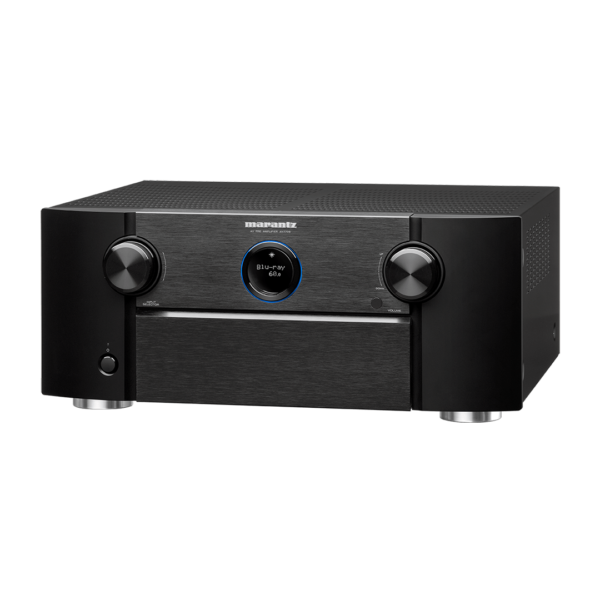

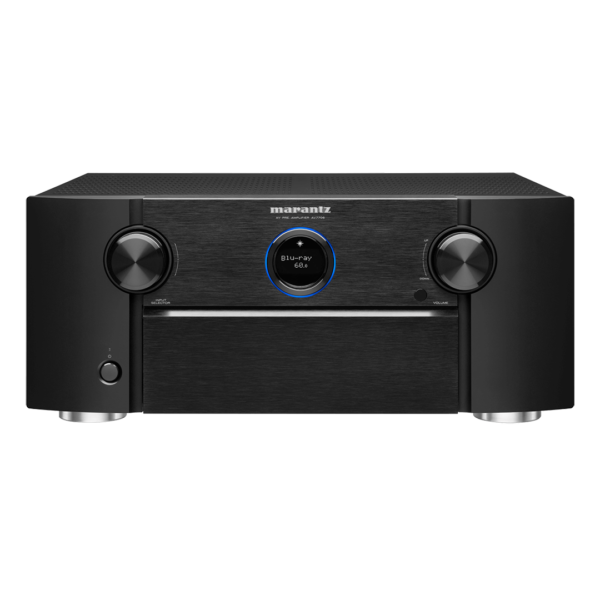

Marantz AV7706 11.2CH 8K AV Surround Pre-Amplifier
A masterpiece of audio architecture.
The AV7706 Pre-Amp was created with passion and extraordinary attention to detail, every element brings you closer to the music you love. From high-resolution stereo to 11.2 channel surround sound, experience...
Read MoreA masterpiece of audio architecture.
The AV7706 Pre-Amp was created with passion and extraordinary attention to detail, every element brings you closer to the music you love. From high-resolution stereo to 11.2 channel surround sound, experience pure Marantz audio carefully tuned to deliver the most enjoyable music and movie experiences you can imagine.
Exclusive at: CanningtonJoondalupMalagaMidlandO'ConnorOsborne ParkRockingham
$4,300.00
AUD Inc. GST
BEST PRICE GUARANTEE
SPEAK TO OUR TEAM • TEXT US
Advanced 11.2 channel pre-amplifier
Experience a versatile home theatre setup with the new Marantz AV7706 processor/pre-amplifier. Featuring 11.2 channel XLR and RCA pre-outs, the AV7706 is built with masterful-quality external power amplification for the most demanding active speakers. Enjoy the audiophile sound you expect from Marantz combined with the latest video and audio decoding, as well as voice control with your favourite voice assistants.
Sophisticated engineering

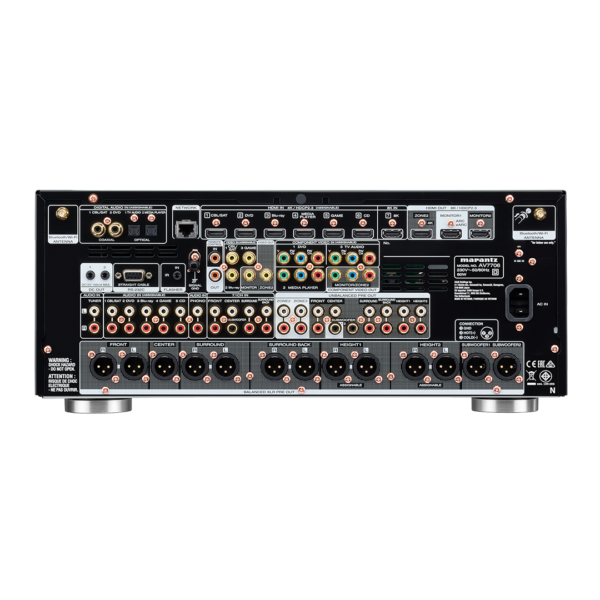

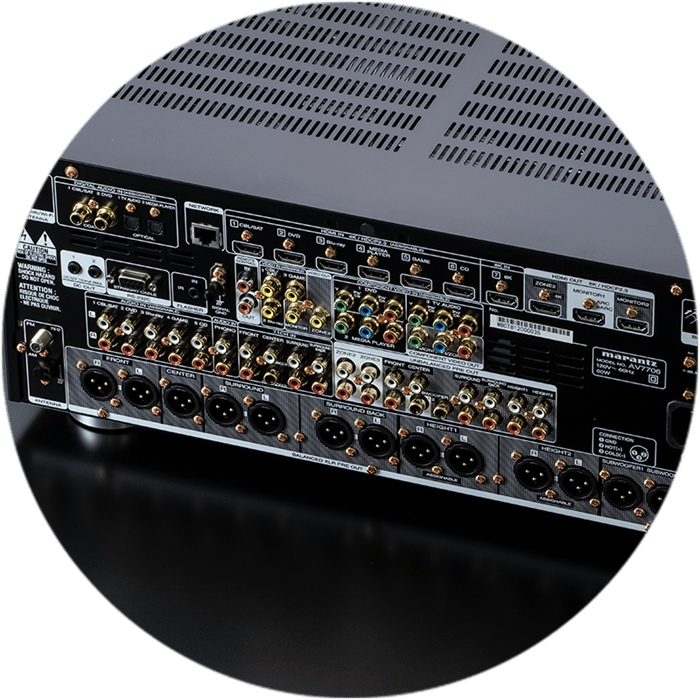

With 11.2 channel pre-outs on both conventional RCA sockets and balanced XLRs, the AV7706 is designed to work alongside high-quality external power amplifiers like the Marantz MM8077, MM7055, and MM7025.
Advanced 8K HDMI connectivity with eARC support
The new Marantz AV7706 includes 8 HDMI inputs and 3 outputs for all your favourite sources. One dedicated 8K input supports 8K/60Hz or 4K/120Hz pass-through capability, 4:4:4 Pure Colour sub-sampling, Dolby Vision, HLG, HDR10, 21:9 video, 3D, and BT.2020 pass-through while the latest HDCP 2.3 copy protection standard is supported on all HDMI inputs.
Full 3D audio support
Immerse yourself in multi-dimensional audio with the latest surround formats, including Dolby Atmos®, Dolby Atmos Height Virtualisation Technology, DTS:X®, DTS Virtual:X™, IMAX® Enhanced, and Auro-3D®.
Marantz HDAM and current feedback topology
The AV7706 features exclusive Marantz Hyper Dynamic Amplifier Module (HDAM) technology that provide ultra-fast slew rate, true wide-band performance, and maximum dynamic range for optimum sound quality.
The next chapter in movie entertainment
The new AV7706 offers the highest-quality, crystal-clear viewing experience. Enjoy your movies with 8K/60Hz pass-through or upscaling, as well the latest in HDMI technology like Dynamic HDR and Quick Media Switching (QMS), which is used in movies to eliminate video delay.
More than 60 Years of audiophile heritage
Founded in 1953, Marantz has a rich history of designing audio components embraced by music lovers and critical listeners around the world. Because Music Matters, the AV7706 continues our long tradition of delivering a best-in-class listening experience for music and cinema.
| DTS HD Master / DTS:X | Yes / Yes |
| DTS:X Pro | No |
| DTS Neo:X / DTS Neural:X | No / Yes |
| DTS Virtual:X | Yes |
| Dolby TrueHD / Dolby Atmos | Yes / Yes |
| Dolby ProLogic Il / Dolby Surround | No / Yes |
| Dolby Height Virtualization | Yes |
| Front Wide Speakers: Dolby / DTS | No |
| Auro 3D | Yes |
| IMAX Enhanced | Yes |
| MPEG-H | Yes |
| Multichannel Stereo | Yes |
| Max Number of Processing (Preamp) Channels | 11.2 |
| Mono Block Power Amp Construction | No |
| Discrete Power Amplifier | No |
| 110th Anniversary Audio Tuning | No |
| Iron diecast feet | No |
| Copper plated transformer base | No |
| All black interior | No |
| D.D.S.C. HD Digital | No |
| Pure Direct | Yes |
| High Grade Audio Components | Yes |
| Gold plated RCA terminals | Yes |
| Clock Jitter Reducer | Yes |
| Alpha Processing | No |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Audyssey APP Support | Yes |
| Speaker Setup Presets | 2 |
| Compressed Audio Restorer | No |
| HEOS Multi-room and Streaming | Yes |
| Lossy formats MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless formats FLAC / ALAC / WAV | Yes / Yes / Yes |
| DSD Audio Streaming | up to DSD5.6 |
| FLAC HD 192/24 | Yes |
| WAV 192/24 | Yes |
| ALAC 192/24 | Yes |
| Gapless Playback | Yes (FLAC, WAV, ALAC, DSD) |
| AirPlay 2 | Yes |
| Roon Tested | Yes |
| Internet radio | TuneIn |
| Spotify Connect* / Tidal* / Deezer* / others * | Yes / Yes / Yes / Yes |
| Amazon Prime Music* / Pandora* | Yes / Yes |
| Compatible with Remote APP for Smart Phones | Yes |
| Compatible with Remote APP for Tablets | Yes |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth Headphone transmission | Yes |
| HDMI Inputs: Back / Front | 7 / 1 |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 2 / 1 |
| HDMI max Resolution (8k / 4k) | 8k/60 – 4k/120 |
| Video Conversion Analog -> HDMI | Yes |
| HDMI to HDMI Scaling | up to 8K 60/50 |
| HDMI: 8K / 4K / CEC / eARC | Yes / Yes / Yes / Yes |
| HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG | Yes / Yes / Yes / Yes |
| HDMI: ALLM / QMS / QFT / VRR | Yes / Yes / Yes / Yes |
| HDMI Pass-Through in Standby Mode | Yes |
| DSD Audio Capability | Yes |
| HEOS Multi-Room Integrated | Yes |
| Multi-Room Zones | 3 |
| Main room multi-channel audio – Zone stereo downmix | Yes |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Audio Output: Speaker / Preout | No / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| Web browser Setup | Yes |
| IP Control / RS232 Control / Web Control / App Control | Yes / Yes / Yes / Yes |
| Remote In / Out | No |
| DC Trigger Output | 2 |
| Voice Control – Works with Amazon Alexa | Yes |
| Voice Control – Google Assist / Apple Siri | Yes / Yes |
| Voice Control – Microphone built-in | No |
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 |
| FL Display | 2 lines + port hole |
| Graphic User Interface – GUI | Advanced |
| ISF Certification | Yes |
| GUI Languages | 9 |
| Setup Assistant | Yes |
| Firmware Update by Network / USB | Yes / Yes |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | No |
| Auto Power off | Yes |
| Sleep Timer | Yes |
| Composite In / Out | 3+1 / 2 |
| Component In / Out | 3 / 1 |
| HDMI In / Out | 7+1 / 3 |
| Multi-Room Video Out: Video / HDMI | Yes / Yes |
| Analogue In / Out | 6+1 / No |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: analog / digital | 2 / No |
| Multichannel Pre Out | Yes (11.2 RCA & 11.2 XLR) |
| Subwoofer Out | 2 (independant) |
| 7.1 multichannel input | Yes |
| Speaker Terminal: Gold plated screw / regular screw | No |
| Number of Speaker Terminals | No |
| Speaker A / B | assignable pre out |
| Bi-amp drive | assignable pre out |
| Multi-Room Speaker Terminal | pre out |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | Yes / Yes / No / Yes / Yes |
| USB Audio (Front) / Made for iPod / Made for iPhone® | Yes / AirPlay / AirPlay |
| DAB / DAB+ tuner | No |
| FM Tuner with RDS | No |
| Number of power amps | No |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) | No |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) | No |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | No |
| Power Output (6 ohm, 1 kHz, 1% 1ch Drive) | No |
| Available colours: Black / Premium Silver | No |
| Metal Front Panel | Yes |
| System Remote Control | No |
| Pre-Programmed / Learnable / LCD Display | Yes / No / No |
| Power Consumption in W | 60 |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Control On Consumption in W | 3.7 |
| Weight in kg | 10.4 |
| Carton Maximum Dimensions (W x D x H) in mm | 537 x 497 x 281 |
| Carton Weight (inc. product) in kg | 13.1 |
