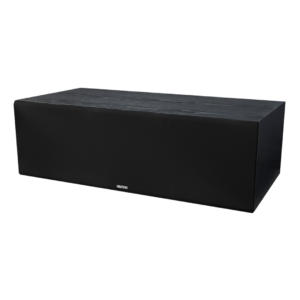

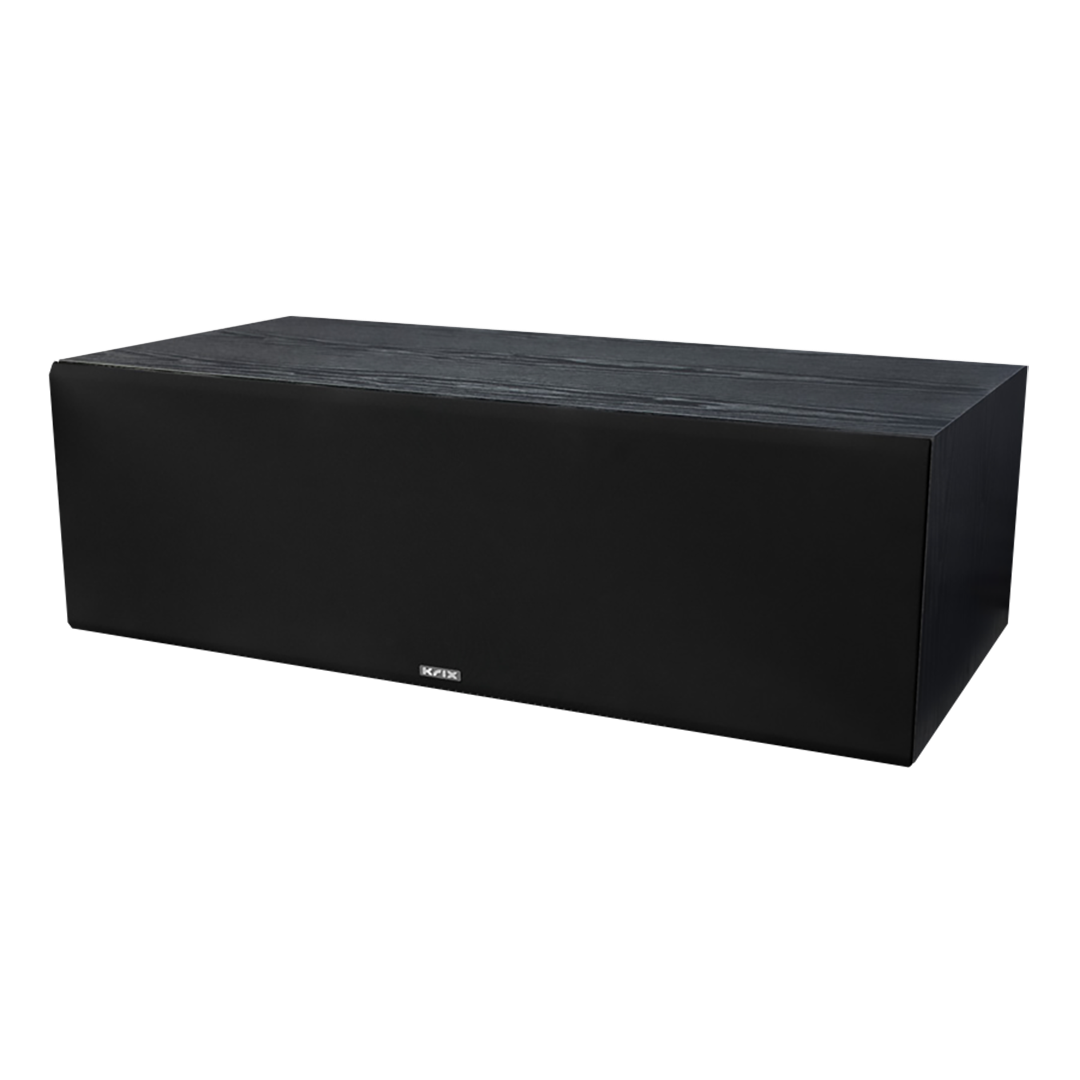

Krix Vortex Mk2 Centre Speaker

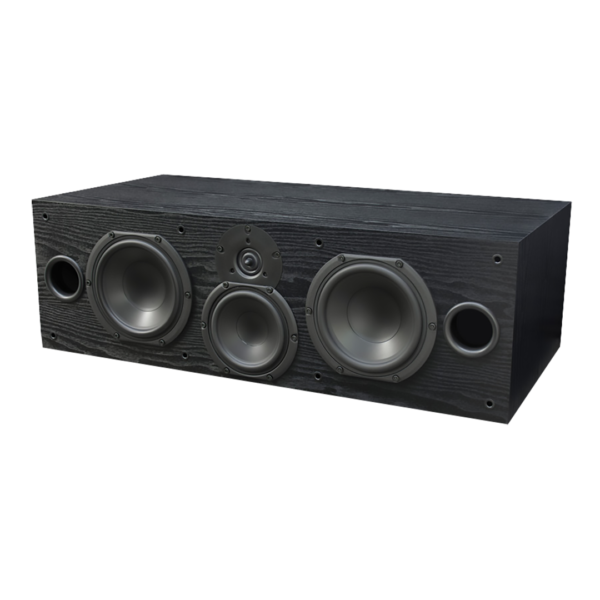

The Vortex is based on the highly successful Epicentrix and has been designed to deliver perfect timbral matching to the Harmonix main speakers.  This same tweeter is also used in the Phoenix and Apex floorstanders meaning the Vortex can also be used with a wide range of Krix products. The dual 165mm bass drivers, single midrange and 28mm tweeter used in the Vortex are identical to those in the Harmonix ensuring the ‘audio stage’ is seamless in it’s transition from left to right.  Focus is on vocal clarity, midrange depth and a dynamic bass response. Experience the sonic strength the Vortex will bring to your home theatre system.

So I set the Vortex to ‘Large’ with my home theatre receiver to ensure it received all the bass, spun up the disc, advanced the volume control to a ridiculous level, and waited to see what would happen… and what happened was that the Vortex delivered a musical performance with tightly controlled and remarkably deep bass. Not as deep as if I’d set it up properly (I would suggest setting a crossover of 50Hz for the truly deep bass to go to a subwoofer that can reproduce it with greater impact), but it coped wonderfully. That is indeed impressive.

– Australian HiFi – Australia

Specifications
Frequency Range: 35Hz – 20kHz in room response
Power Handling: Maximum 180 watts RMS amplifier power
Sensitivity: 91dB for 2.83 volts at 1 metre
Configuration: 4 driver 3-way bi-wirable / bi-ampable
Bass Driver(s): 2 x nominal 165mm (6½”) laminated polypropylene cones. 33mm (1¼”) voice coil wound on high powered aluminium former, with ventilated spider and aluminuim flux stabilization ring for low distortion. Fully shielded
Midrange Driver: 1 x nominal 130mm (5″) coated paper cone. 26mm (1″) voice coil wound on high powered aluminium former, using copper shorting ring and oversized magnet for lower distortion. Fully shielded
Tweeter: 28mm (1″) doped fabric dome. Ferro fluid cooled. Neodymium magnet
Crossover Points: 340Hz & 2.1kHz
Impedance: Nominally 4 ohms
Enclosure Type: Dual bass chambers, bass reflex + sealed midrange chamber, front vented with internal / external flaring.
Dimensions: 230mm high x 725mm wide x 383mm deep (inc. grille)
Material: 17mm MDF enclosure, heavily braced
Finish: Vinyl or lacquered timber veneer
Volume: 42 litres internal
Weight: 24kg each
