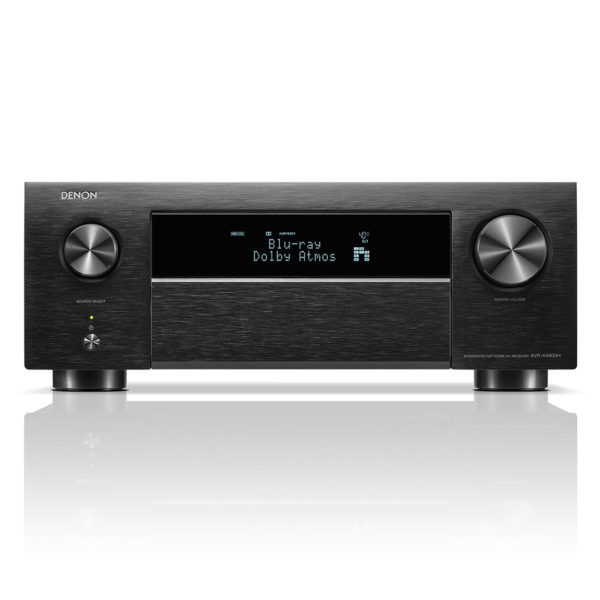

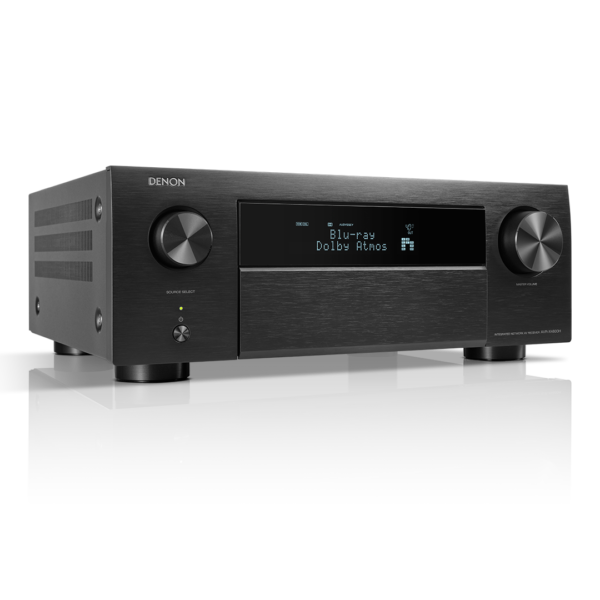

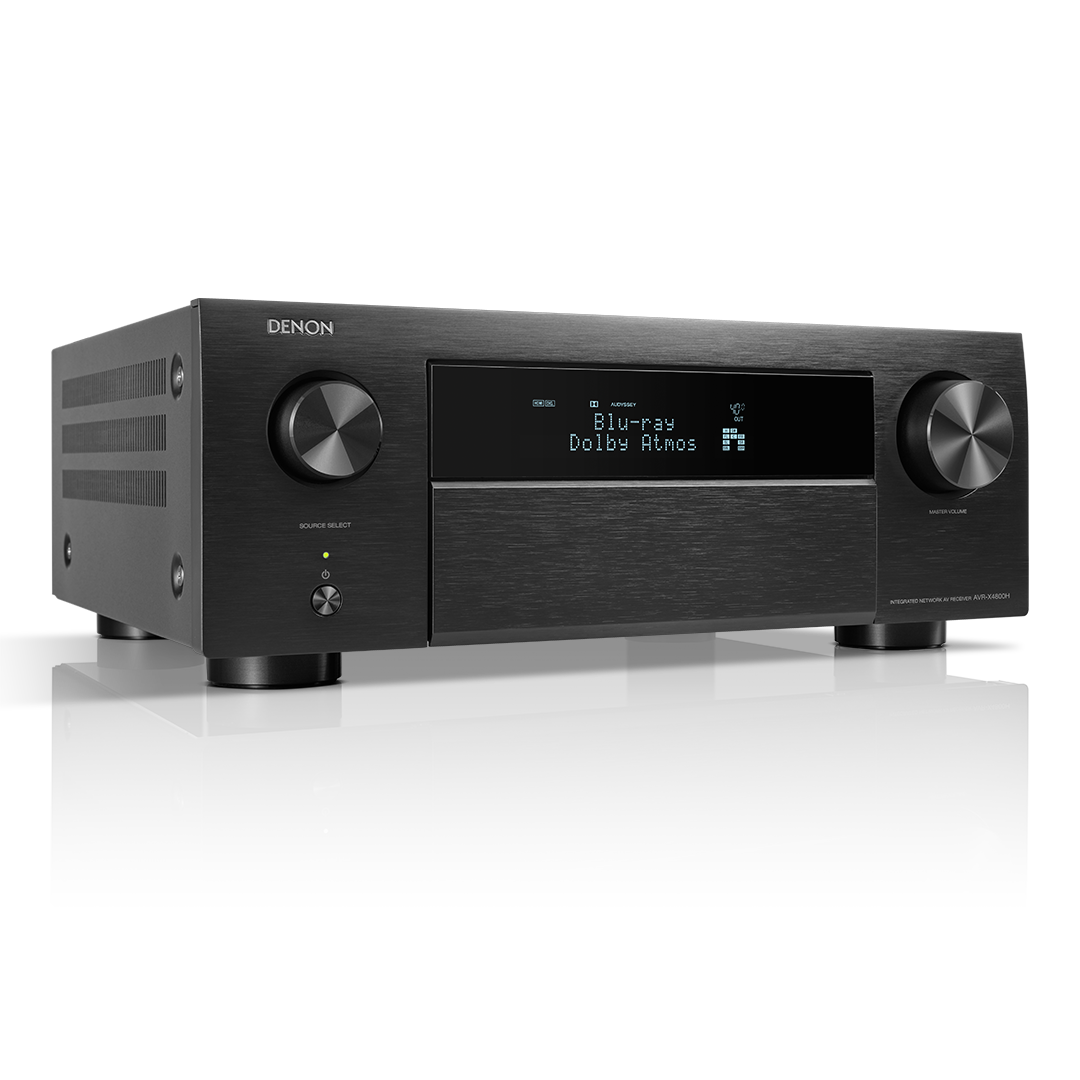

Denon AVC-X4800H 9.4 Channel A/V Receiver with HEOS

MULTICHANNEL SURROUND
DTS HD Master, DTS:X, DTS:X Pro Yes, Yes, No
DTS Neo:X, DTS Neural:X No, Yes
DTS Virtual:X Yes
IMAX Enhanced Yes
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, Yes, Yes, Yes
Dolby ProLogic Ilz, Dolby Surround No, Yes
Auro 3D Yes
360 Reality Audio / MPEG H Yes, Yes
Multichannel Stereo Yes
Max. Number of Processing (Pre-Amp) Channels 11.4

SOUND ENHANCEMENTS
Discrete Power Amplifier Yes
D.D.S.C. HD Digital Yes (32 bit)
Pure Direct Yes
Clock Jitter Reducer Yes
Alpha Processing AL32 Processing Multichannel
Audyssey MultEQ XT32
Audyssey Dynamic EQ, Dynamic Volume Yes, Yes
Audyssey LFC Yes
Dirac Live Upgradability Yes
Compressed Audio Restorer Yes

NETWORK
Media Server Yes
HEOS Wireless Multi-Room Technology Yes
Alexa / Google Voice Assistant / Apple HomePod Yes, Yes, Yes
Lossy Formats: MP3, WMA, AAC Yes, Yes, Yes
Lossless Formats: FLAC, ALAC, WAV Yes, Yes, Yes
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) Yes, Yes, Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
AirPlay 2 Yes
TuneIn Yes
Spotify Connect Yes
Roon Tested Yes
HEOS App Control Yes
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
HDMI
HDMI Inputs: Back, Front 7, No
HDCP2.3 support Yes
HDMI Outputs: Main, Zone 2, 1
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes , Yes, Yes, Yes, Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate, Quick Flame Transport, Quick Media Switching Yes, Yes, No
3D Signal Pass-through Yes
8K Signal Pass-Through, Scaling, GUI Overlay Yes, Yes, Yes
DSD Audio Capability Yes
Audio Return Channel (ARC), Enhanced ARC Yes, Yes
Auto LipSync Yes

MULTI-ROOM CI
Multi-Room Zones 3
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog Yes (2ch), Yes (2ch), Yes, Yes
Zone Audio Output: Speaker, Pre-Out Yes, Yes
Zone HDMI Output from HDMI Source Yes
IP Control, RS232 Control, Web Control, App Control Yes, Yes /Yes, Yes
Remote In / Out Yes, Yes
DC Trigger Output 3
HDMI Diagnostics Yes

OTHERS
Auto Speaker Setup by Microphone Audyssey MultEQ XT32
Dirac Live (upgrade)
Front Display 2-Line FLD
GUI Languages 3
Setup Assistent Yes
Quick Select Plus, Quick Select Yes, No
Variable Crossover Yes
Optimized Bass Redirection Yes
Bass Sync Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

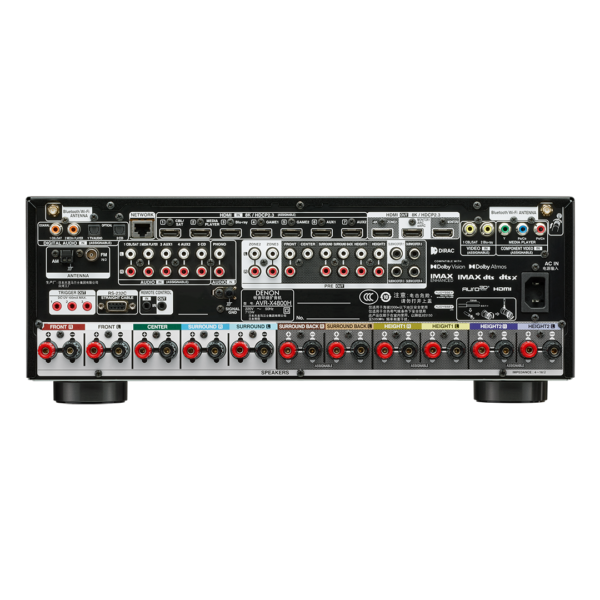

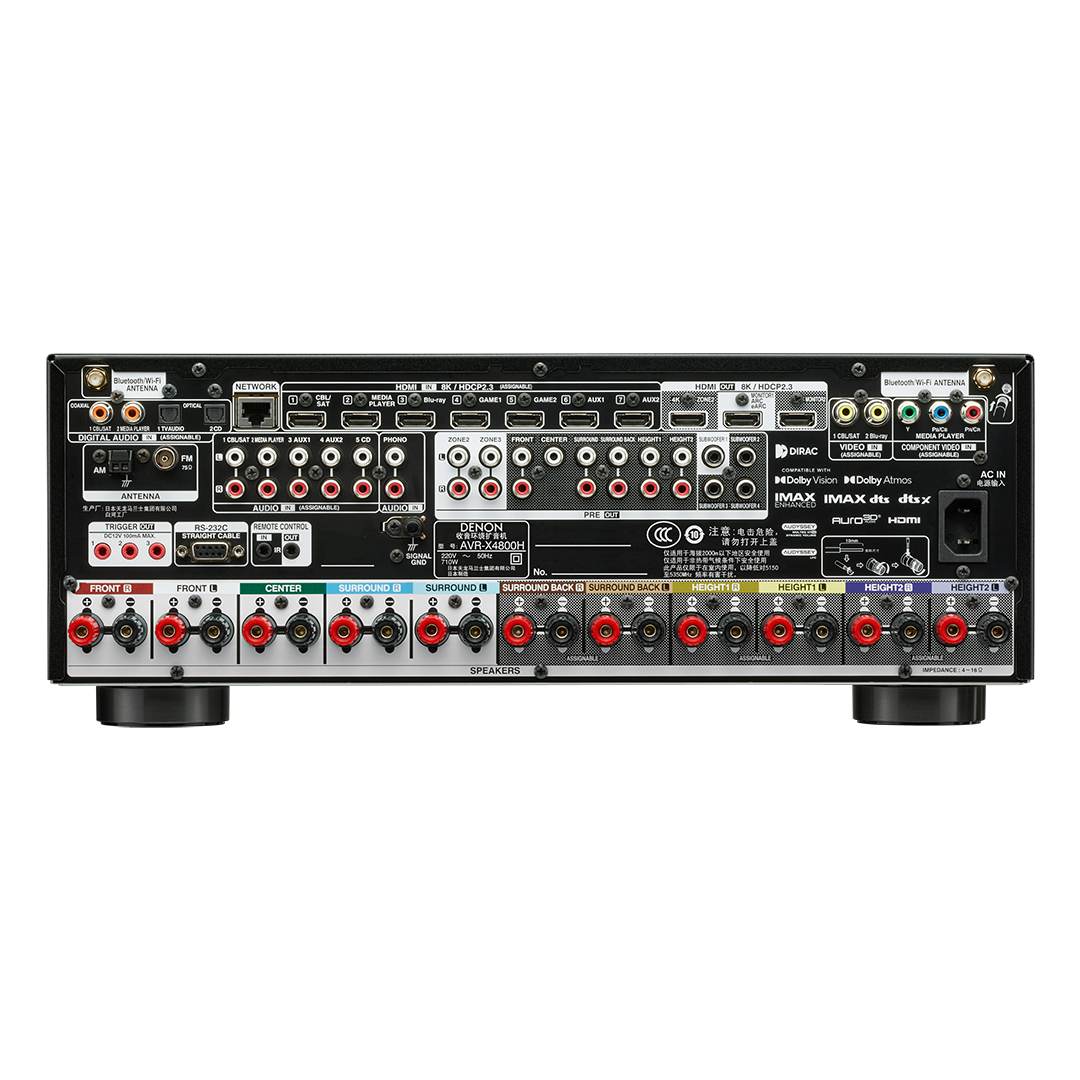

INPUTS OUTPUTS
HDMI In, Out 7, 3
Multi-Room Video Out: Video, HDMI No, Yes
Analog In, Out 6 / No
Phono (MM) In Yes
Digital In: Optical, Coaxial 2 / 2
Multi-Room Out: Analog, Digital 2 / No
Multichannel Preout Yes (11.4)
Subwoofer Out 4 (independent)
Speaker Terminal: Gold-Plated Screw, Regular Screw No, Yes
Number of Speaker Terminals 11
Speaker A / B Assignable
Bi-amp Drive Assignable
Multi-Room Speaker Terminal Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone Yes, No, No
AM/FM Tuner Yes

SPECIFICATIONS
Number of Power Amps 9
Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) 125W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 165W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 200W

GENERAL
Metal Front Panel Yes
System Remote Control RC-1252
Pre-Programmed, Learnable, LCD Display Yes, No, No
Power Consumption in W 710
Power Consumption No-Sound (ECO On / Off) in W 65 W / 110 W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
【 w/o Antenna :(W x D x H) in mm】 434 x 389 x 167
( 434 x 389 x 236 )
【 434 x 379x 167 】
Weight in kg 13.4
Carton Weight (inc. product) in kg 16.0
