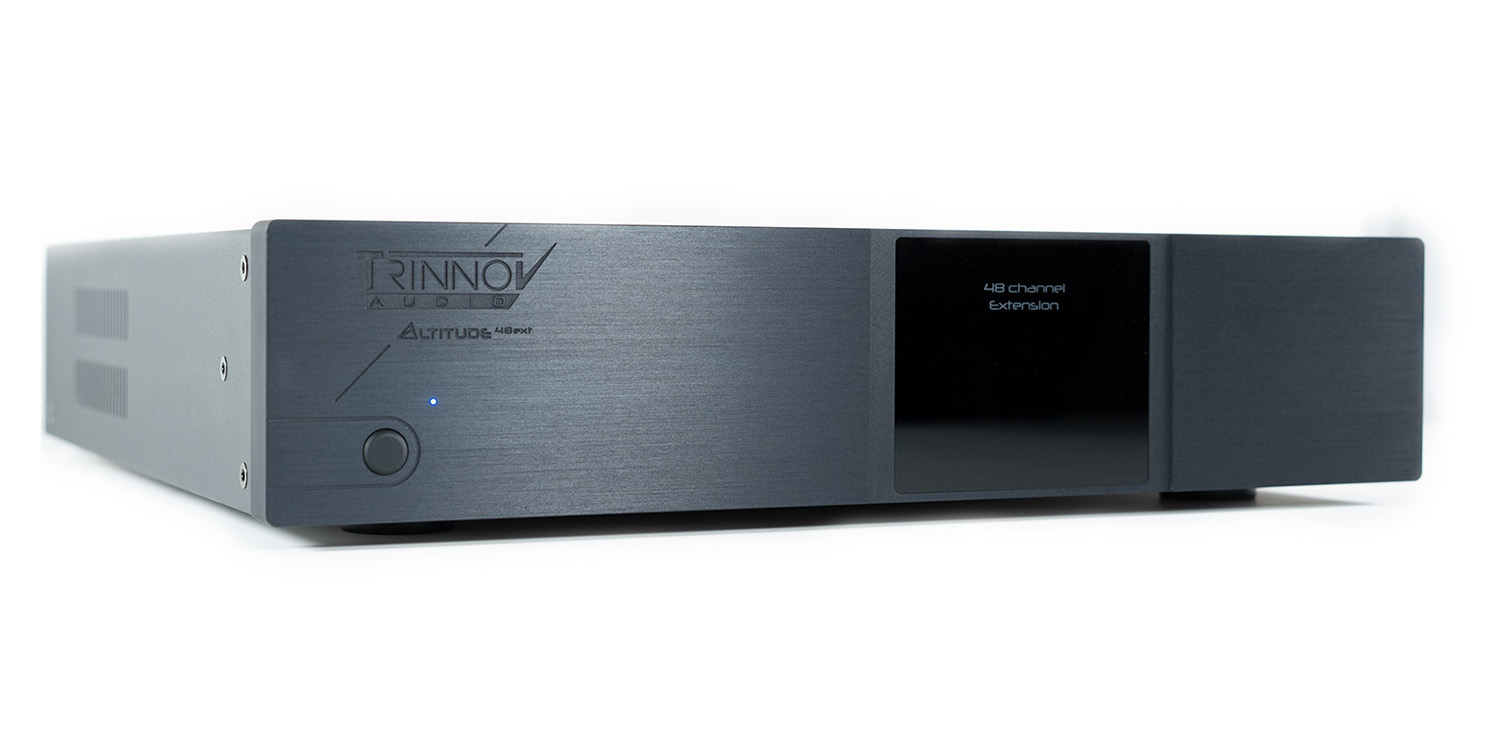

Trinnov Altitude 48 EXT Cinema Processor

The Altitude48ext was designed for the most exclusive private theatres with the extended capabilities of the Altitude32 in mind.
If your home theatre requires more than 32 channels, the Altitude48ext is simply the only...

Read More

The Altitude48ext was designed for the most exclusive private theatres with the extended capabilities of the Altitude32 in mind.
If your home theatre requires more than 32 channels, the Altitude48ext is simply the only solution.


Exclusive at: Midland

$35,495.00

AUD Inc. GST

BEST PRICE GUARANTEE

SPEAK TO OUR TEAM • TEXT US

Contact us to buy
Category ,
Tags ,

DESIGNED FOR THE MOST EXCLUSIVE HOME THEATRES

This unique solution makes it possible to enjoy a true cinematic experience where professional and consumer Dolby Atmos soundtracks can be played optimally across the same high-channel count speaker system, calibrated with Trinnov’s exclusive Optimiser technology.

THE PERFECT COMBO

Building on the unique decoding and rendering capabilities of the Altitude32, the Altitude48ext pushes the limit further with up to 48 individual decoded outputs and a total of 64 processing outputs.

The Altitude32 can be unlocked to deliver up to 48 individual outputs. This is made possible by enabling its 32 analog and 16 digital outputs simultaneously.

FULL HOME ATMOS EXPERIENCE

It allows – for the first time – users to experience the full Home Atmos experience with its 24.1.10 layout, while still allowing more possibilities in term of bass management or multi-amping and remapping.

However, that solution requires an AES multi-channel High-end DAC that could compete with Altitude’s own renowned DAC: Trinnov’s solution to that problem is Trinnov Altitude48ext.

24.1.10 SPEAKER LAYOUT IN ACTION

TRINNOV OPTIMISER

Our world-renowned Optimiser technology is used in nearly 2,000 studios across the globe and almost 10,000 high-performance installations worldwide.

The Altitude48ext provides an extra 32 channels of Optimisation, bring the total number of processing outputs to 64.

Including our exclusive semi-automatic Active Crossovers calibration, it is the perfect solution to drive large amounts of active speakers.

The increased number of processing channels can also be used to declare and align as many additional subwoofers as needed by your system.

SPECIFICATIONS

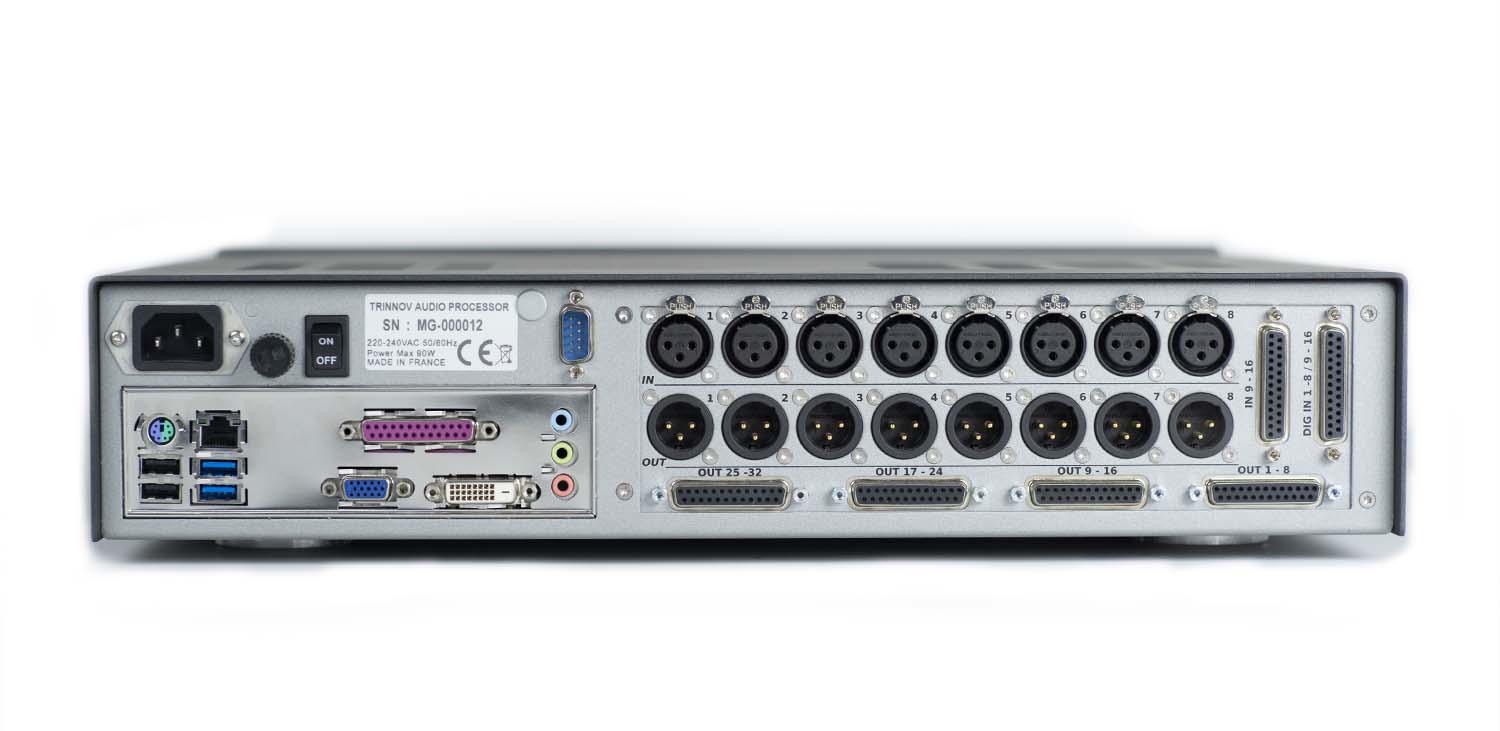

DIGITAL AUDIO CONNECTIVITY

  • Digital Inputs (DB25):: x1 (16 channels)

ANALOGUE AUDIO CONNECTIVITY

  • Balanced Inputs (XLR): x8
  • Balanced Outputs (XLR): x8
  • Balanced Outputs (DB25): x4 (32 Channels)
  • Input Impedance: 20k Ohms
  • Analogue DB25 Wiring: TASCAM Pinout

AUDIO PROCESSING

  • ADC Resolution / Sampling Rate: 24 bits / 96 kHz
  • DAC Resolution / Sampling Rate: 24 bits / 96 kHz
  • A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)
  • D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)
  • Reference Level: +18dBu @ 0dBFS (Balanced)
  • Clock / Jitter: attenuation > 50 dB above 100Hz

HARDWARE

  • Processor: Intel Multicore CPU
  • Data Precision: 64 bits, floating point
  • Cooling System: Custom heat sinks & silent fans
  • Safety Components: AntiPop relays on each output

POWER SUPPLY

  • Power Requirement: 240V AC / 50-60 Hz. Option: 130V AC
  • Power consumption: 90W
  • Mains fuse: 1A slow blow
  • Internal PSUs: Separated supplies for Audio and Processing

WEIGHT & DIMENSIONS

  • Dimensions (W x H x D) mm: 442 x 102 x 438
  • Dimensions (W x H x D) inches: 17 1/2″ x 4″ x 17 1/4 “
  • Shipping box dimensions (W x H x D) cm: 74 x 59 x 28
  • Weight: 10.2kg / 22.5lbs
  • Shipping weight / volume: 15kg / 0.131 M3
  • Rackmounting: 2U – Rack Ears Included
